Ⅱ
Ⅱ-33

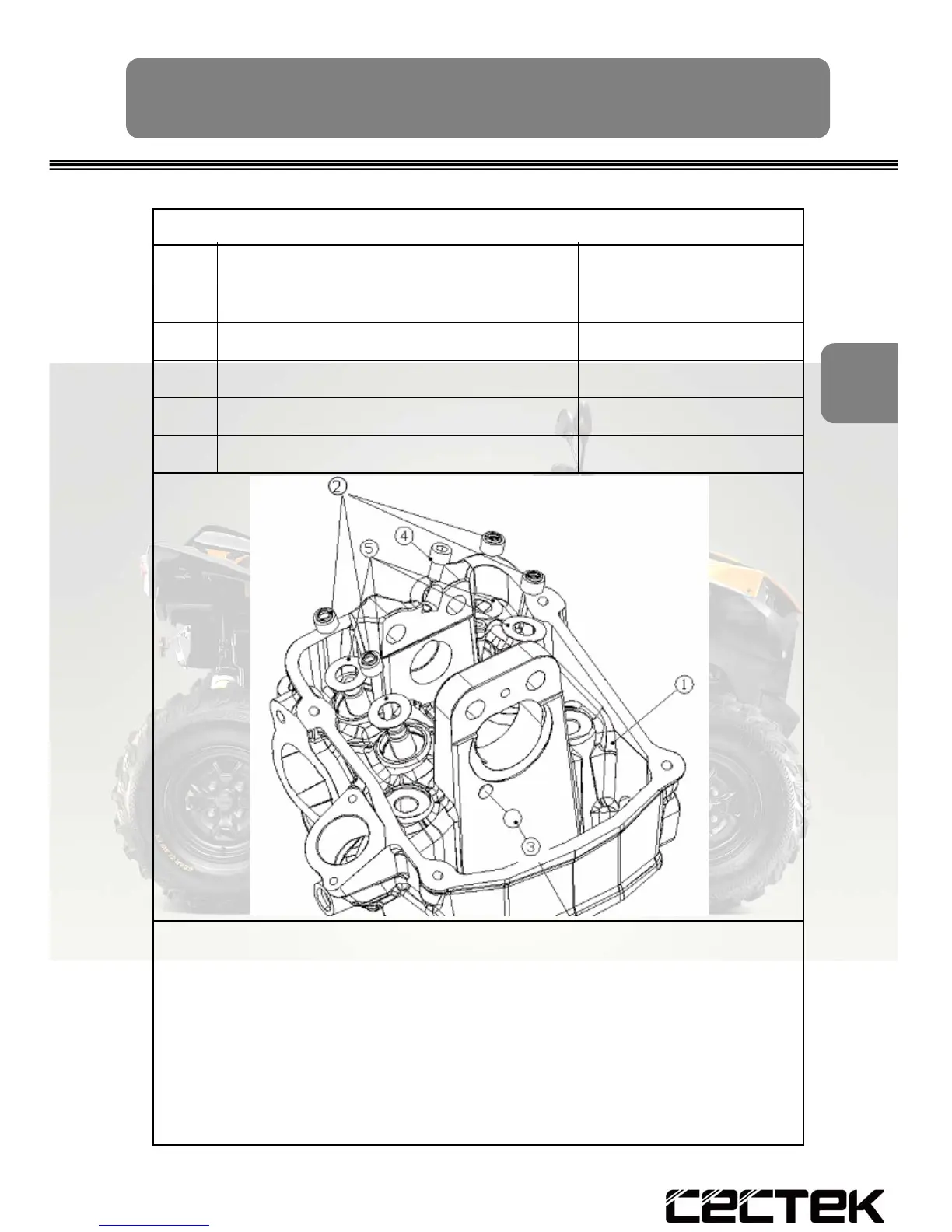

THE CYLINDER HEAD ASSEMBLY
N0. PART NAME PART NO.
1.
CYLINDER HEAD ASSY. 40058011
2.
VALVE STEM SEAL 40056002
3.
SEALING BALL 40070031
4.
HEXAGON SOCKET SCREW SC050121291
5.
VALVE SPRING WASHER 40050140
Please clean up correlative parts and lubricate with 10W/40 oil
1.Knock the 2 balls (3) into cylinder head (1)
2.Paste the screw (4) with LT272 , tighten to cylinder head with
5Nm
3.Install the washer (5) on the valve spring seat
4.Knock valve stem seal (6) into valve guide , keep distance
between the bottom of seal and the top of cylinder head within
12.7±0.5 mm
ENGINE - Assembly
