ENGINE - Dismantle

Ⅱ

Ⅱ-9

CAM SHAFT DISMANTLE

cover

spring

O-ring

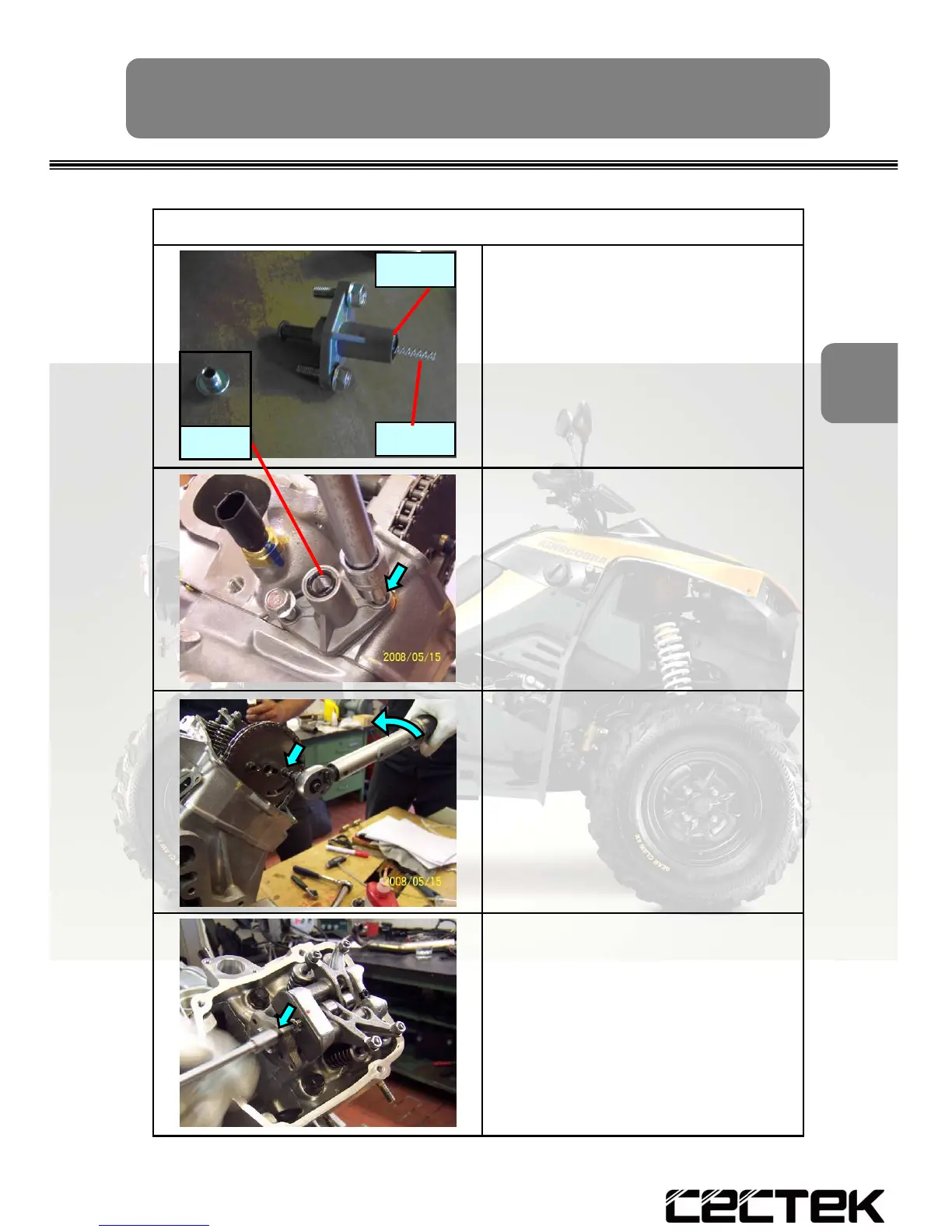

Loosen the tensioner cover ,

and notice the spring and

O-ring

Loosen the tensioner bolts ,

then remove the tensioner

Loosen the cam sprocket

bolts , then remove the cam

sprocket

Loosen the cam antithrust plate

Bolt , then remove the plate
