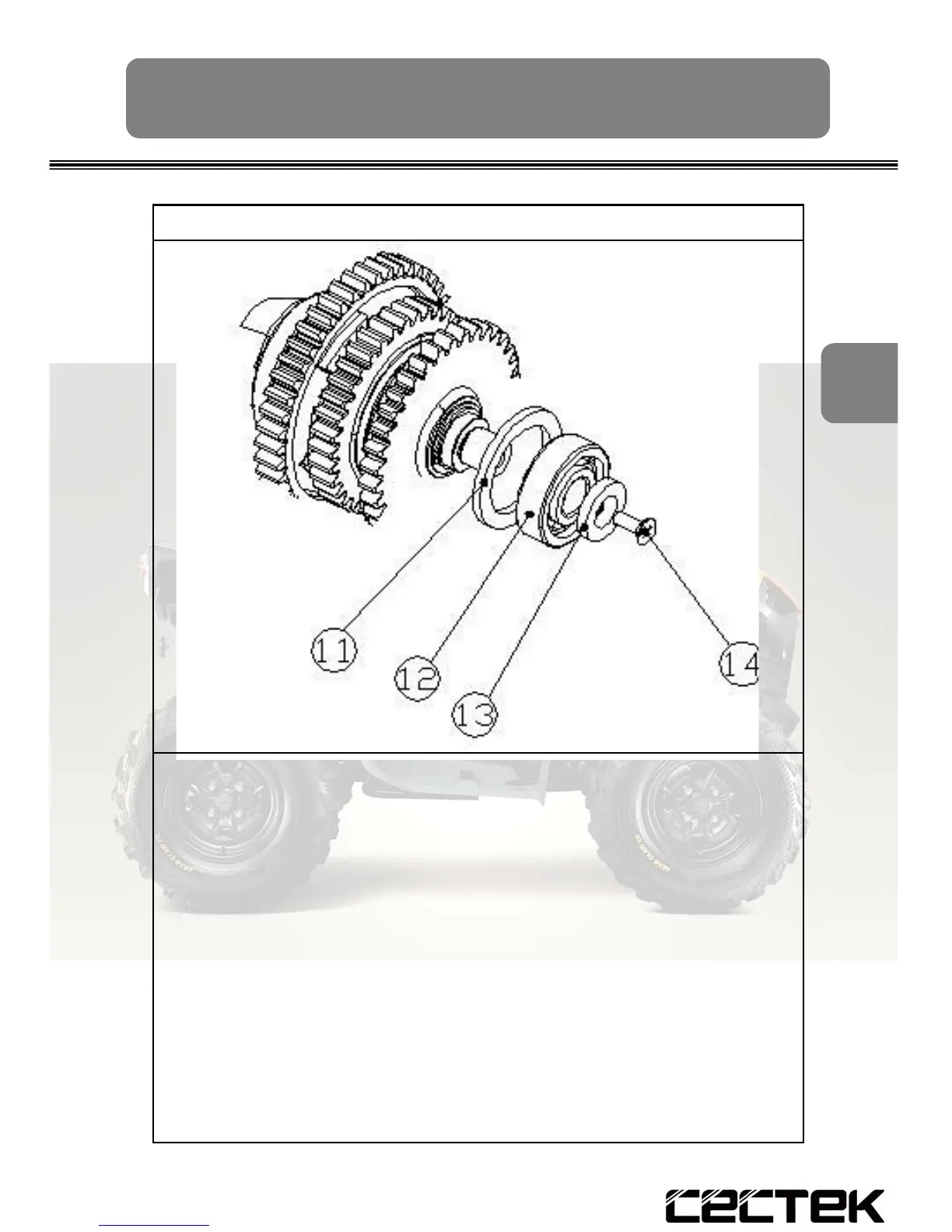

Before install gear and bearing , please lubricate with 10W/40 oil
5.Install washer (7) into lay shaft , then install needle bearing
(8) into lay shaft
6.Install reversal gear (9) into lay shaft , then put a washer (7)
into lay shaft , shall be install reversal gear (9) of groove side
into bevel gear side
7.Install retain C-ring (10) into lay shaft of groove
8.Measure and calculate gear back clearance , then choose
and install adjusting washer (11)
9.Install bearing (12) into lay shaft
10.Install washer (13) and screw flat head screw (14) into lay
shaft , tighten torque 9Nm
THE LAY SHAFT ASSEMBLY
