3.8.8 Ejection check photocell
The Synchronization photocell, used only by ejection modes S and FS, must be programmed as
described below:
Programming menu
Remote
parameter
Description Setting
Ejection > Ej. distance
ED
Distance of the ejection system
from the probe
0 - 6000 mm
Configuration(adv) > Check phot.dist
ECPD
Distance between the Metal
Detector and the Ejection Check
photocell
0 - 6000 mm

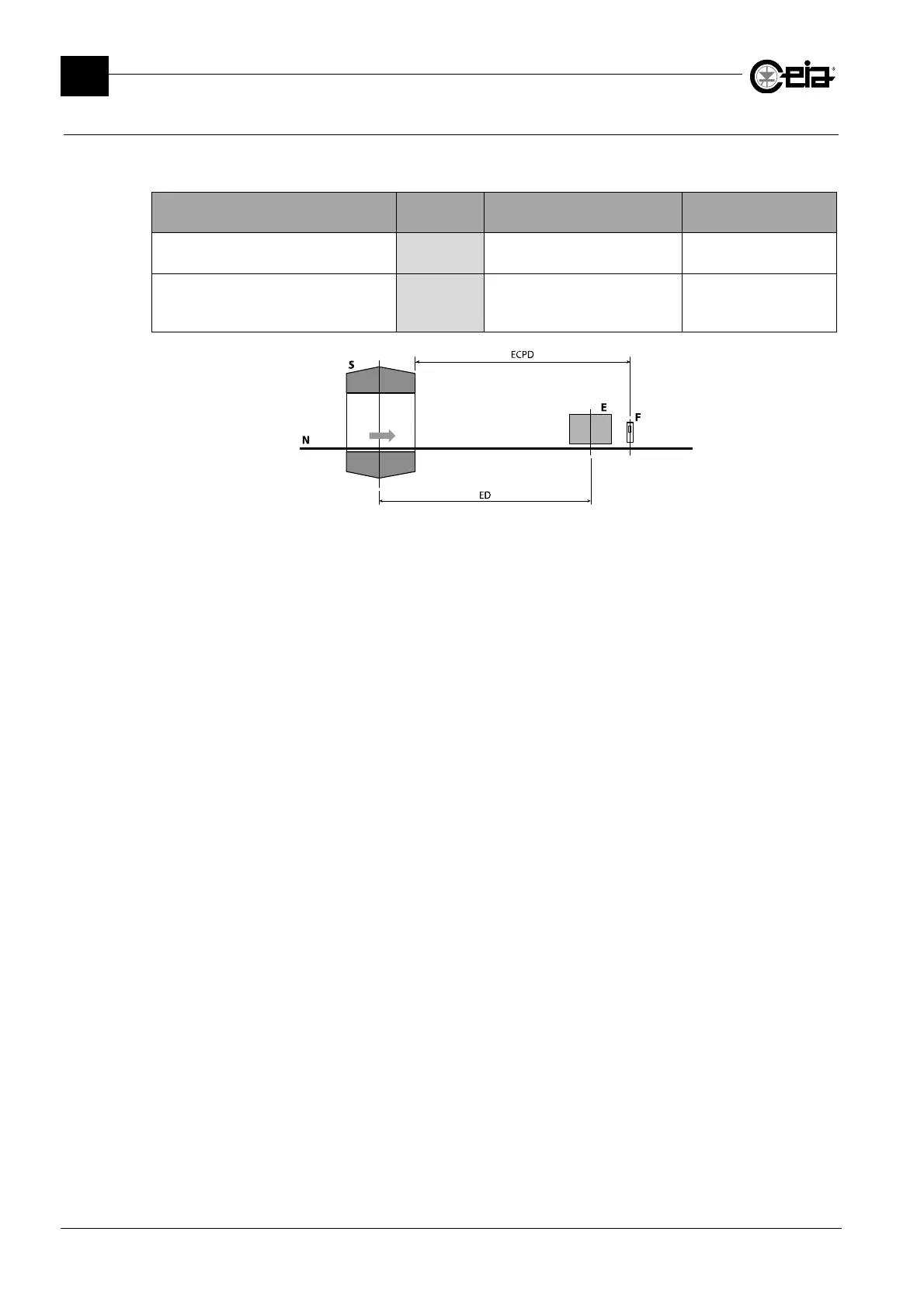

N: conveyor belt; S: electronics unit; F: photocell; ECPD: distance photocell-probe; ED: distance probe-ejector;
