Ceia THS/GMS21 - 2.5 Functional diagrams

FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
2
DESCRIPTION
ORIGINAL INSTRUCTIONS 33
2.5 Functional diagrams
Legend
CEIA INDUSTRIAL
METAL DETECTOR
INCLUDED
COMPONENT
OPTIONAL
COMPONENT
EXTERNAL DEVICE
OR CONNECTION

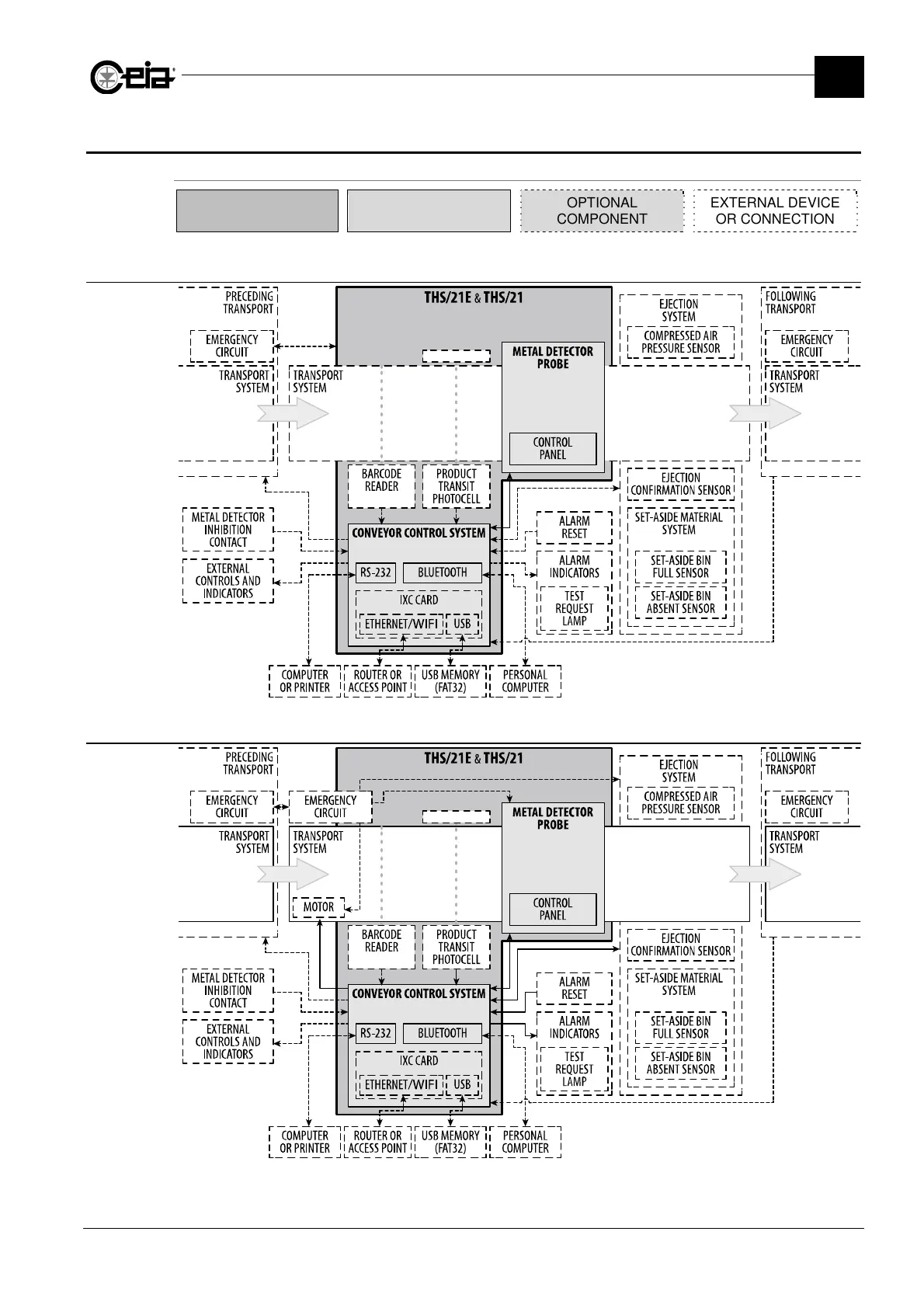

2.5.1 THS with Control Power Box
2.5.2 THS with Conveyor Control System
