Operating Instruction for Thermal Imager

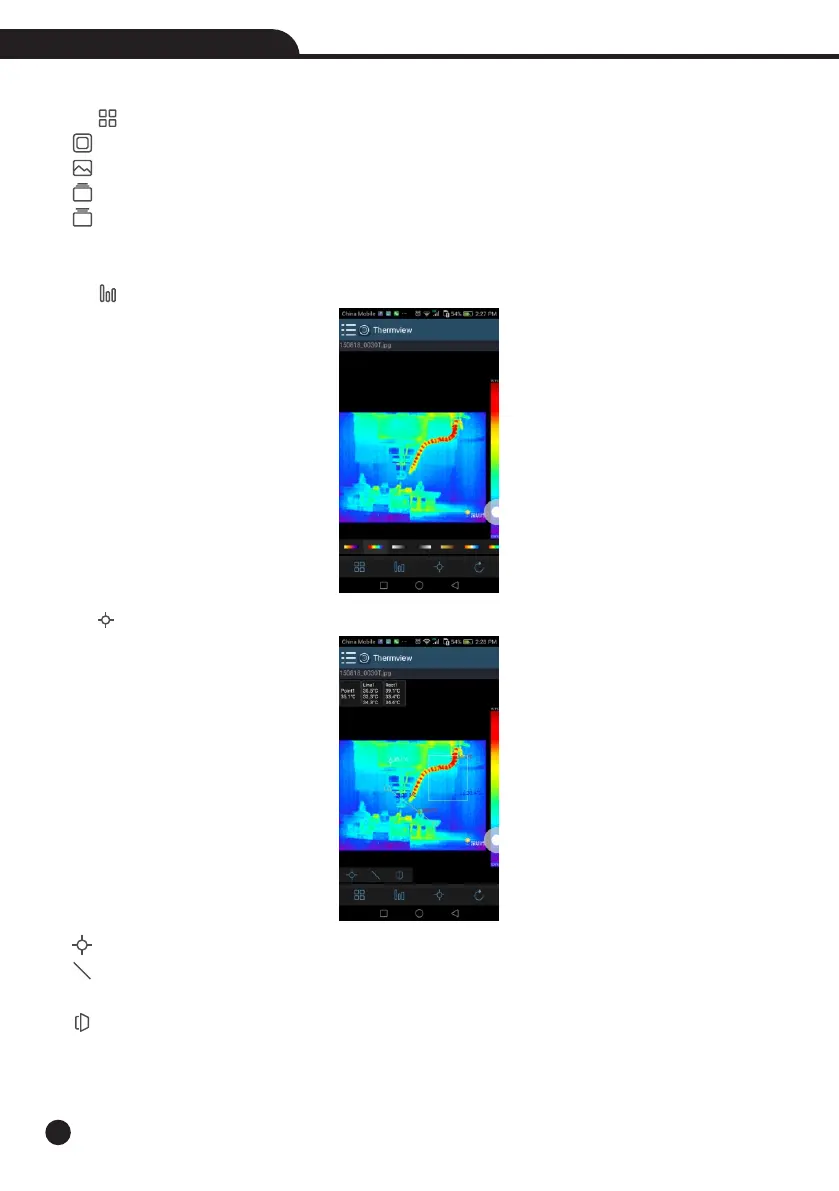

1.Image Mode
Click “ ” icon to select image mode, there are four mode for you to select.
(1) IR Mode: only infrared picture displayed.
(2) Visible Mode: only visible picture displayed.
(3) IR Fusion Mode: The infrared picture is fusioned with visible picture.
(4) Visible Fusion Mode: full screen fusion, the visible picture is fusioned with infrared picture.
2.Colorbar Select
Click “ ” icon to select colorbar. There are eight colorbar for you choice.
3. Analyse
Click “ ” icon to analyse the IR pictures. There are three analyse tools:
(1) Point Analyse: Add a point to the picture, it will display the temperature of the point.
(2) Line Analyse: Add a line to the picture, it will display the highest, lowest and average temperature of the
line.
(3) Area Analyse: Add a rectangle to the picture, it will display the highest, lowest and average temperature of
the rectangle.

CEM DT-986H Specifications

General

Brand	CEM
Model	DT-986H
Category	Laboratory Equipment
Language	English
