CEM MARS 6 User Manual

25

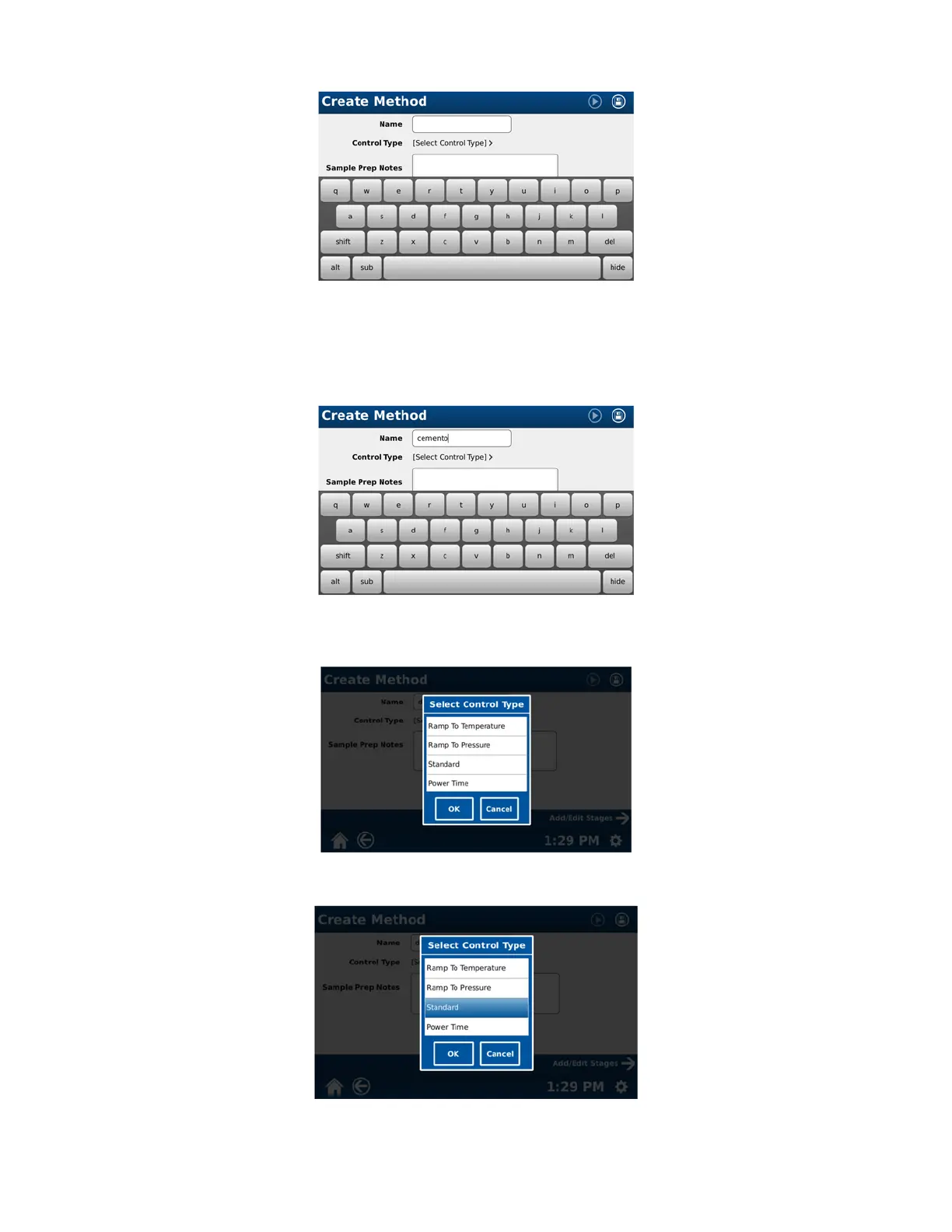

3. Select “Name” to name the method being created. The keypad will appear on the screen.
4. Using the keypad, select the name of the method being created. Note: To toggle between upper and lower case
letters for the method name, select the “shift” key on the keypad. To toggle to numbers and symbols for the
method name, select “alt” on the bottom of the keypad. To use a subscript, select the “sub” key. Use the
backspace “del” (delete) key to delete unwanted letters and/or numbers. Use the space bar to enter a space in
the method name. Once the name is properly selected and displayed, select “Hide” to close the keypad.
5. Touch “Select Control Type” to select the desired control type for the method (Ramp to Temperature, Ramp to
Pressure, Standard, Power Time, or Evaporation).
6. Select and highlight the desired control type.
7. Select “OK.”

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
