CEM MARS 6 User Manual

30
19. To add an additional stage for the method, touch the “+” on the screen.
20. Repeat the above steps for each stage (5 maximum) of the method.
21. To edit the initial method parameters, select “Edit Method.”
22. To edit the parameters of a stage, select (touch and highlight) the appropriate stage. Select “Edit Stage
Parameters.”

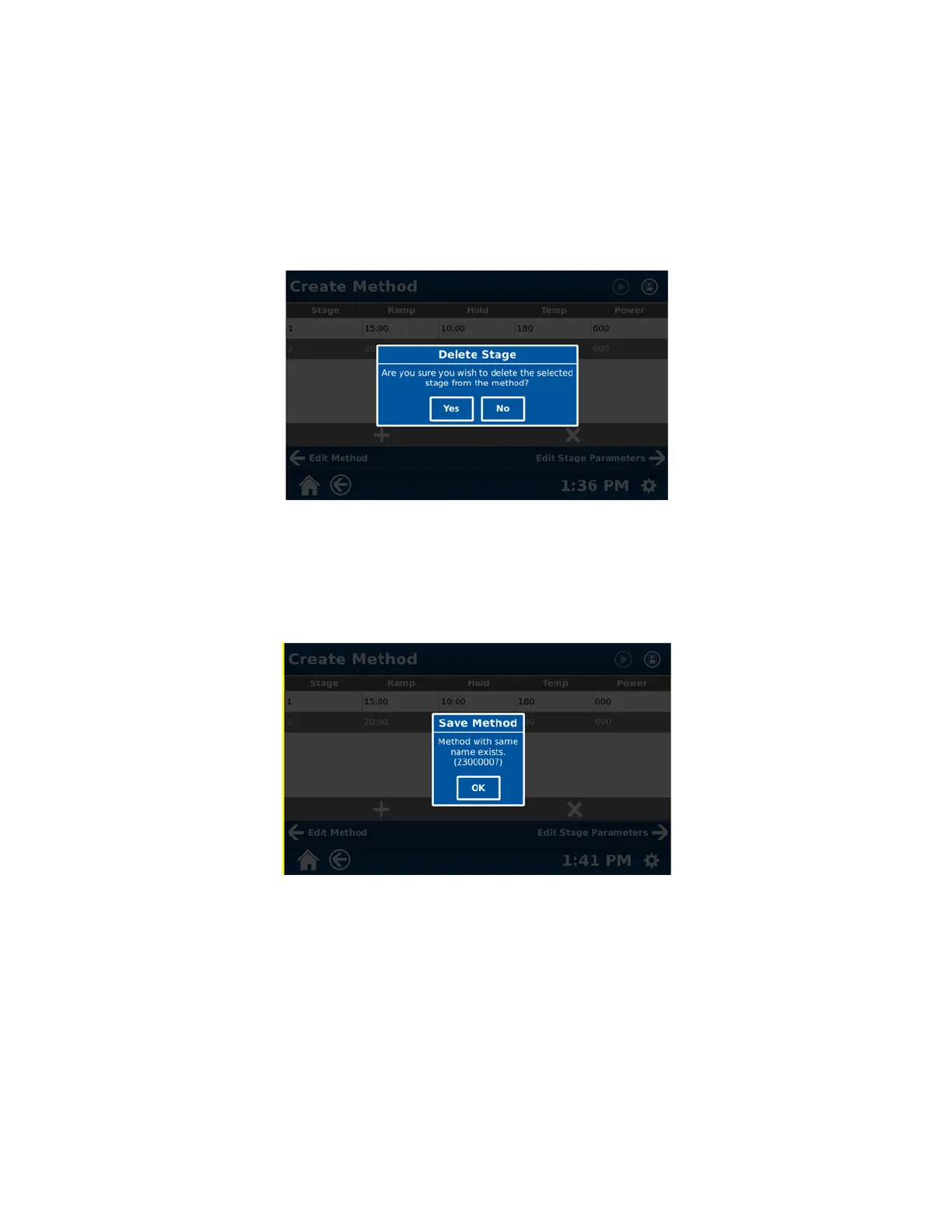

23. To delete a stage, select (touch and highlight) the stage to delete and then select the “X” on the screen.
24. To delete the stage, select “Yes.” If the stage is not to be deleted, select “No.”
25. Once the method parameters are entered properly, the method can be saved by selecting the disk icon at the
top of the screen. Once the method is saved, the disk icon will be grayed out.
26. If the method name is a duplicate, the following screen will appear.

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
