CEM MARS 6 User Manual

49

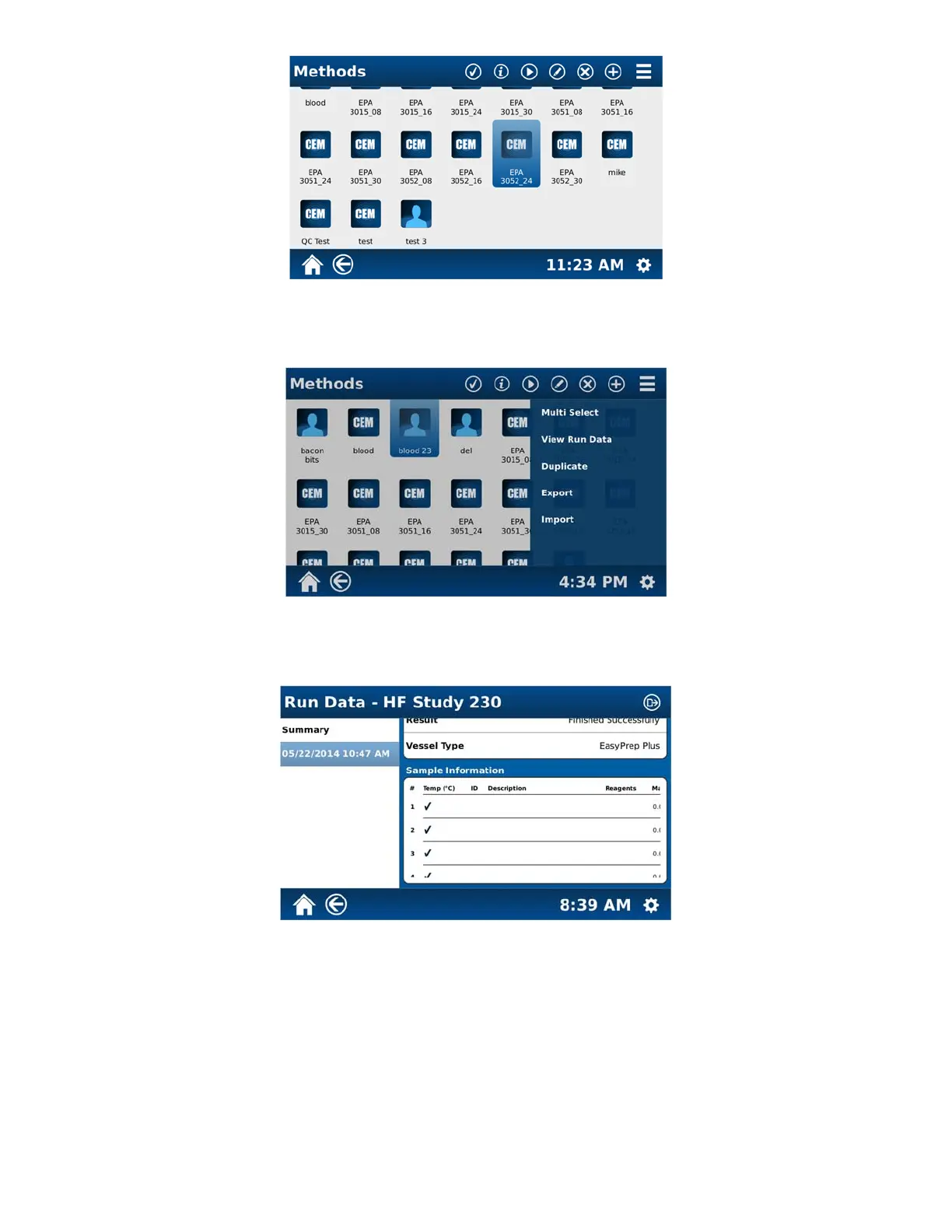

4. Select “Start.” Once the method is complete, press the “Home” icon.
5. From the “Home Screen,” select the “One Touch” or “Classic” (touch and hold) method performed in step 4.
6. Touch the Screen Context Menu icon.
7. Select “View Run Data.”
8. Select the date and time of the method tested. Scroll the View Run Data screen upward to display “Sample
Information.”
9. Touch inside the “Sample Information” section of the screen.
10. Enter the applicable information. If any field applies to all samples, select “Apply All.”

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
