CEM MARS 6 User Manual

50
System Menu
Tools

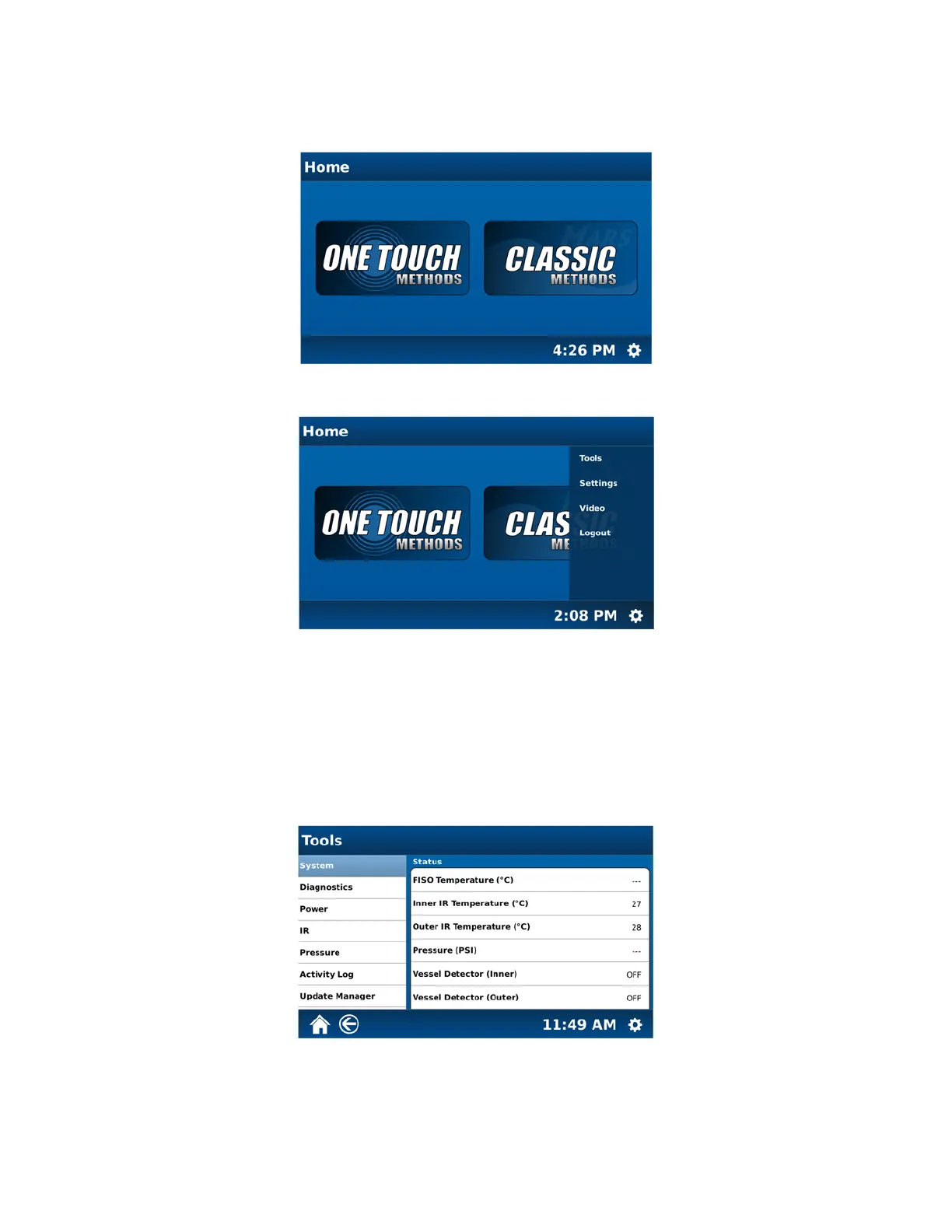

From the MARS 6 home screen, select (touch) the “System Menu” icon in the bottom right corner of the screen.
1. Select “Tools.”
2. Select “System.” Touch and scroll through the “System” information to view “Status” and “Service Dates.”
NOTE
The “System” screen provides instrument information including temperature and pressure readings, door
status (open or closed), calibration dates, and instrument history. This information is for information
purposes only and cannot be revised except by a certified CEM Service Engineer.

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
