CEM MARS 6 User Manual

71

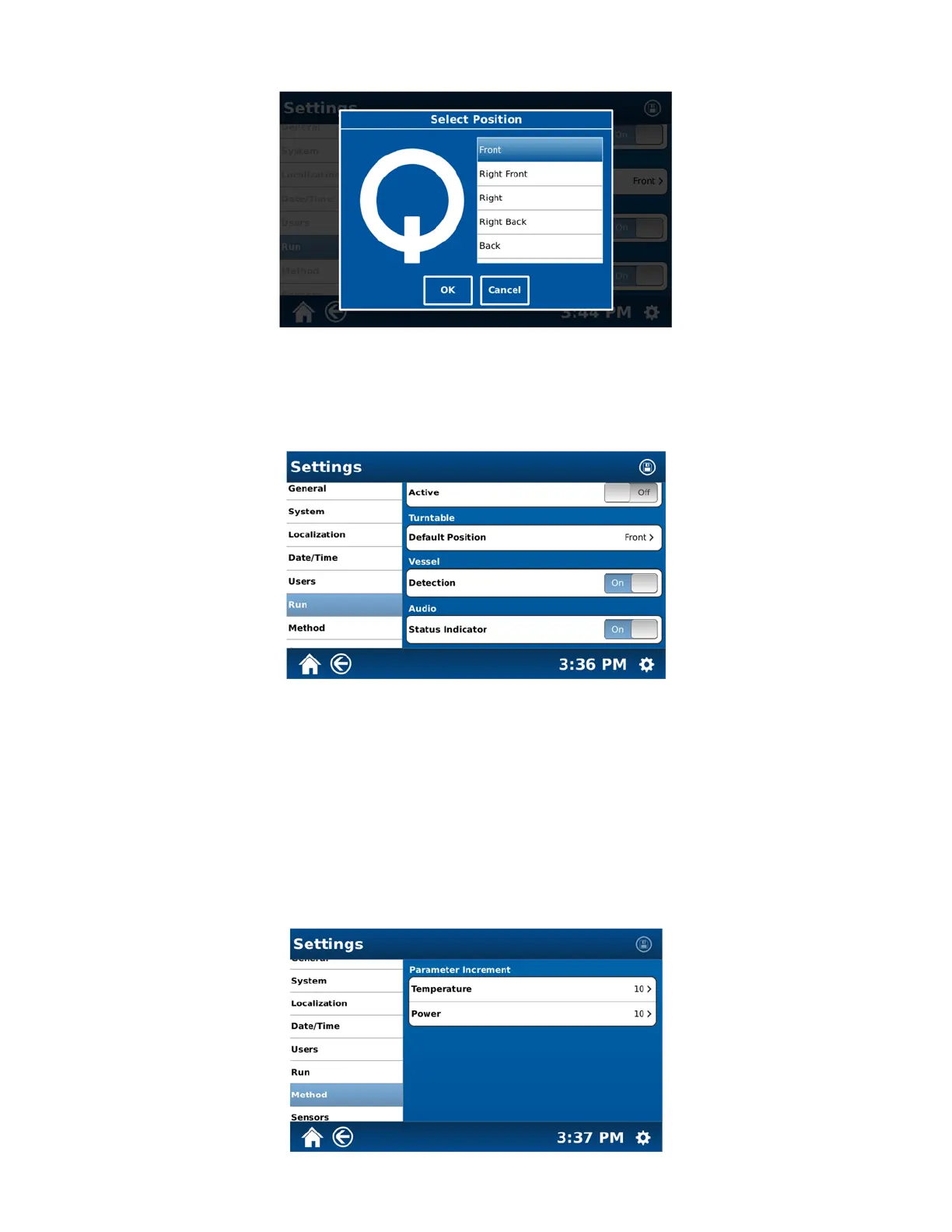

116. Select the turntable “Default Position.”
Note: The turntable default position is based on the user’s preference for loading and unloading the vessel turntable.
117. Select the desired turntable default position (Front, Right Front, Right, Right Back, Back, Left Back, Left, and
Left Front).
118. Select “OK.”
Note: Vessel detection sensors recognize the type and number of vessels that have been placed in the instrument cavity.
Note: Audio status indicator is an audible chime between stages of a method and at the end of a digestion.
119. Select “On” or “Off” for vessel detection.
120. Select “On” or “Off” for the audio status indicator.
121. Select the disk icon at the top of the screen. Once the “Run” settings are saved, the disk icon will be grayed
out.
122. Select “Method” from the Settings screen to set the allowed method parameter increments.

CEM MARS 6 Specifications

General

Type	Microwave Digestion System
Power Output	1600 W
Temperature Control	Yes
Pressure Control	Yes
Vessel Capacity	up to 40 vessels
Display	Touchscreen
Operating Pressure	up to 800 psi
Temperature Range	up to 300°C
Temperature Accuracy	± 1 °C
Power Supply	220-240 V, 50/60 Hz
Safety Features	Over-temperature and over-pressure protection
Power Consumption	1600W
Cooling Rate	Forced air cooling
