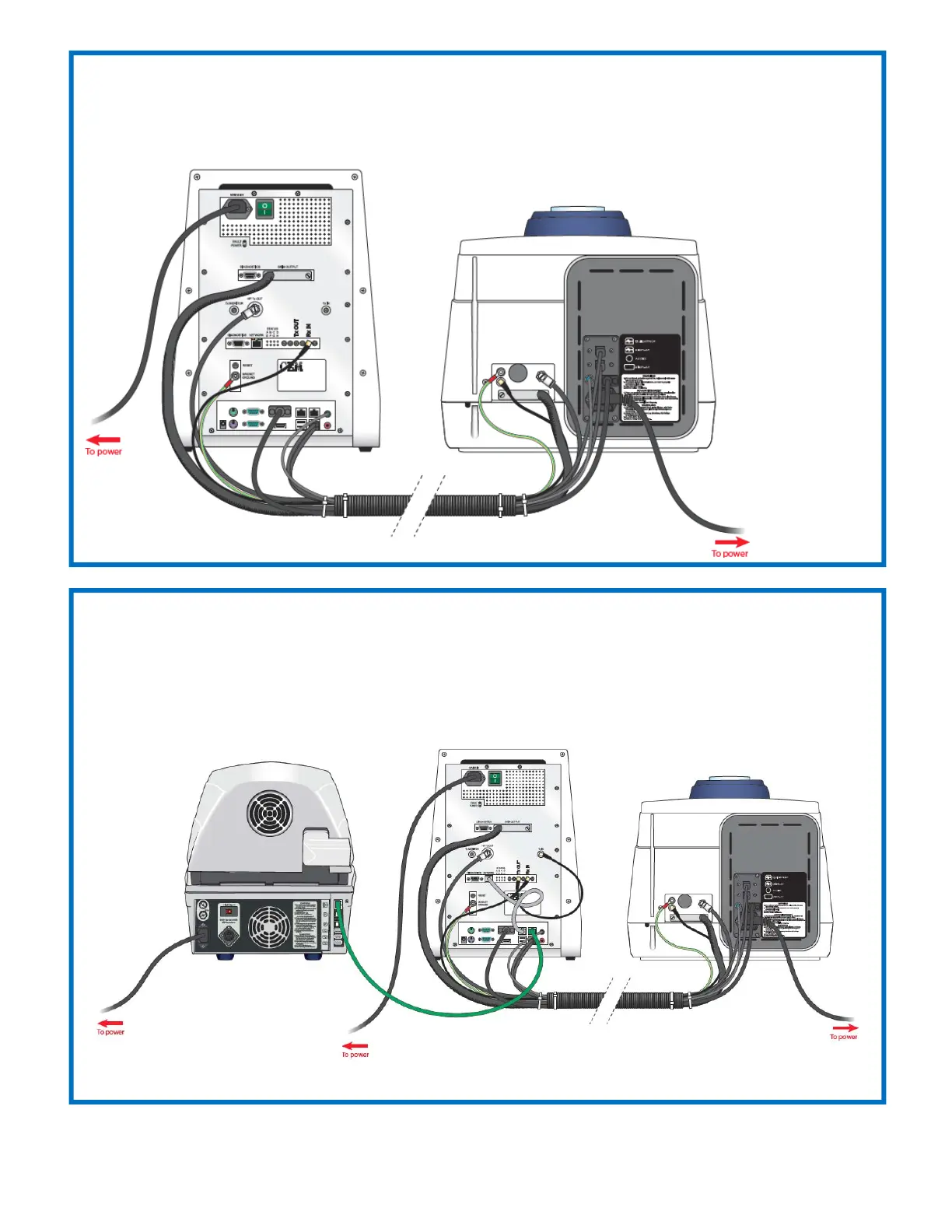

16. Connect the Power cords to the ports on the back of the magnet and processor box. Plug both
cords into the Power Conditioner, then turn the green switch on the processor box to the ON
position.
FOR SMART 6 USERS ONLY
After following instructions to install the SMART 6 system in the SMART 6 manual, connect the SMART 6 to the
ORACLE analyzer with the CAT5 Ethernet cable provided as illustrated below.
