66
Diagnostics

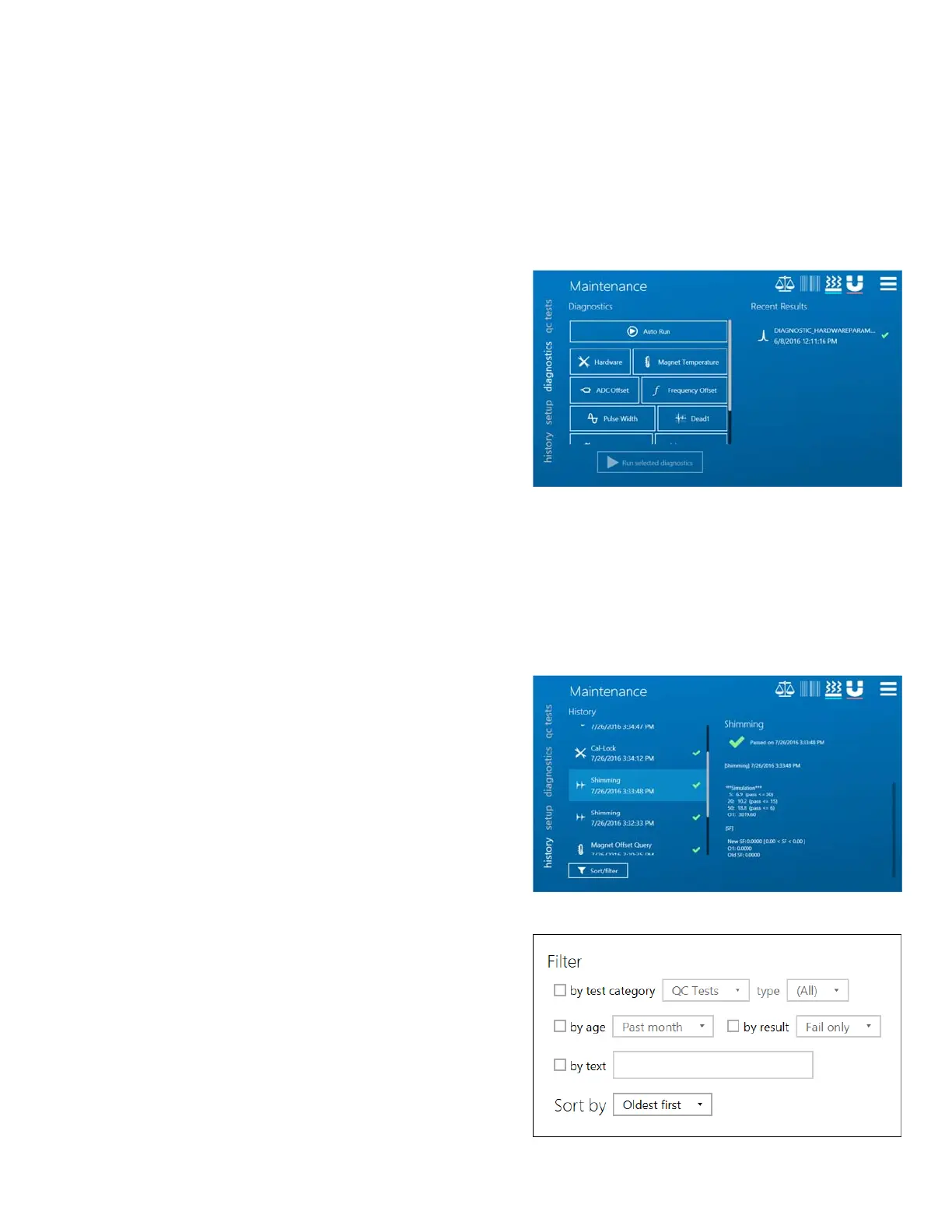

The ORACLE software contains a diagnostic testing procedure that runs a number of tests to ensure the hardware
and software components are all functioning within each parameters specified range. Each test can be run
individually, or all of the diagnostic tests can be run at once by using the Auto Run option. The total test time for the
Auto Run is only 30 minutes, and requires the use of the Oil Standard tube for a number of tests.
Every test result provides a value that is compared to the
internal passing specifications of the unit. If a test result is
within the passing range, it will give a green check mark. If it
is outside the passing range, it will be designated by a red X.
Note: In the event of a failure, please complete the
remaining Diagnostics tests, then follow the instructions to
export the Diagnostic Data in the manual and contact your
local CEM service representative.
The Diagnostics Tests should be used as directed by a certified CEM representative or as part of a Standard
Operating Procedure. Unless specifically direct otherwise, it is suggested to run the full Auto Run procedure, a 30
minute process that will run each of the 10 Diagnostic tests.
The system will routinely ask the user to either place a standard tube in the magnet, or to remove it. It is imperative
to follow these directions exactly. The user will need to use the glass or Teflon Oil Standard, p/n 160065.
To review past Diagnostic results on the ORACLE, Choose the
History tab. Every results from QC Tests, Diagnostics, and
Setup will be displayed. Results can be filtered using the
Sort/Filter option on the bottom of the screen.
