39
ORACLE Station Sample Preparation

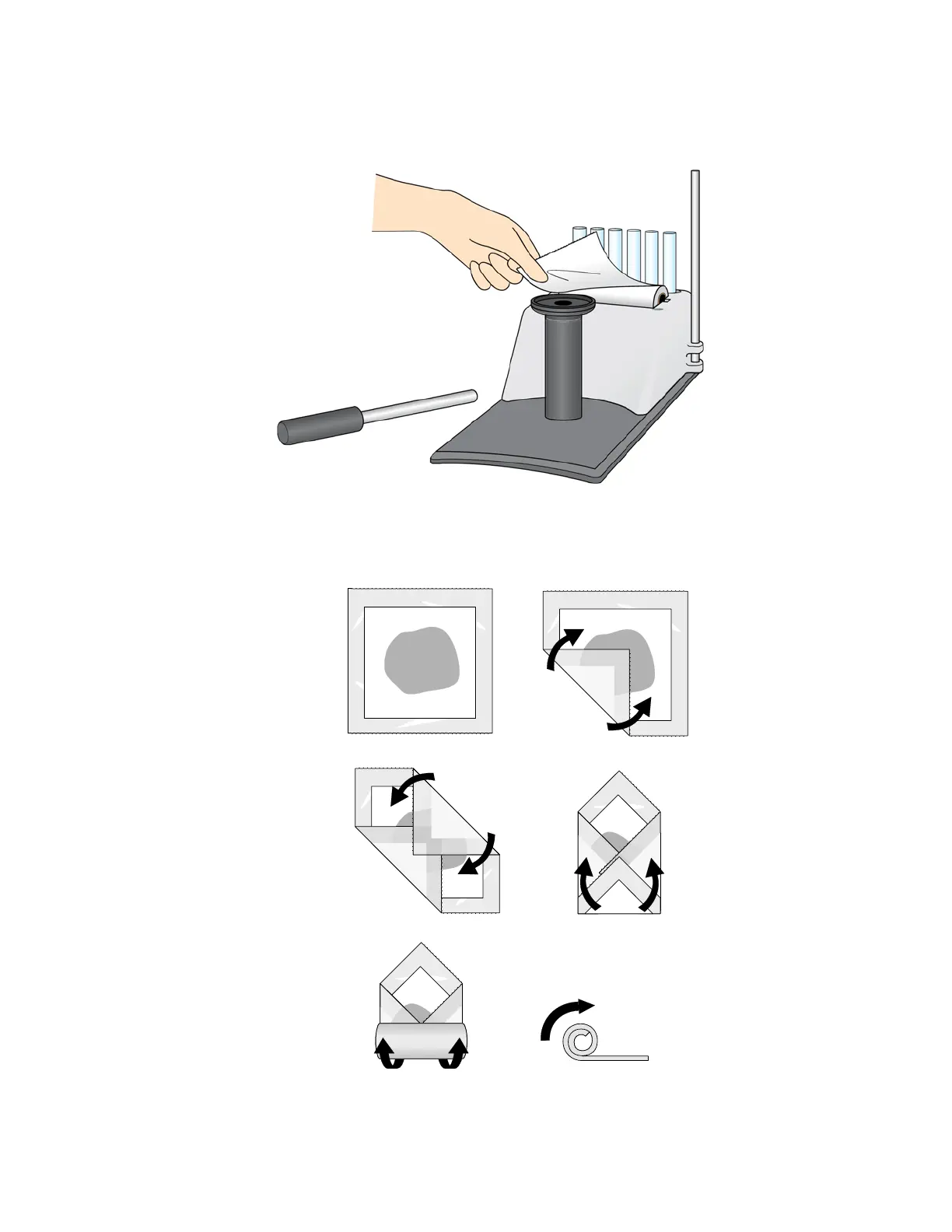

1. Remove and place one sheet of Trac Film on the platform of the ORACLE Station.
2. Place the square pad and sample in the center of the Trac Film.
3. Prepare the sample pad. Fold the left corner of the film and pad as illustrated. Fold the right corner. Pull the
lower edge of the film and sample pad toward the top and begin to roll them into a tube.
4. Position the wrapped tube and sample into the ORACLE tube. Carefully press the sample into the bottom of
the tube with the ORACLE Station press. The sample should be pressed firmly to ensure that the sample is
positioned in the appropriate analysis area.
