Centa CENTAX-L - Page 34

Assembly and operating instructions
CENTAX-L
016L-00050…00090-FS10
M016-00003-EN
Rev. 3
CENTA Antriebe Kirschey GmbH 34 / 46

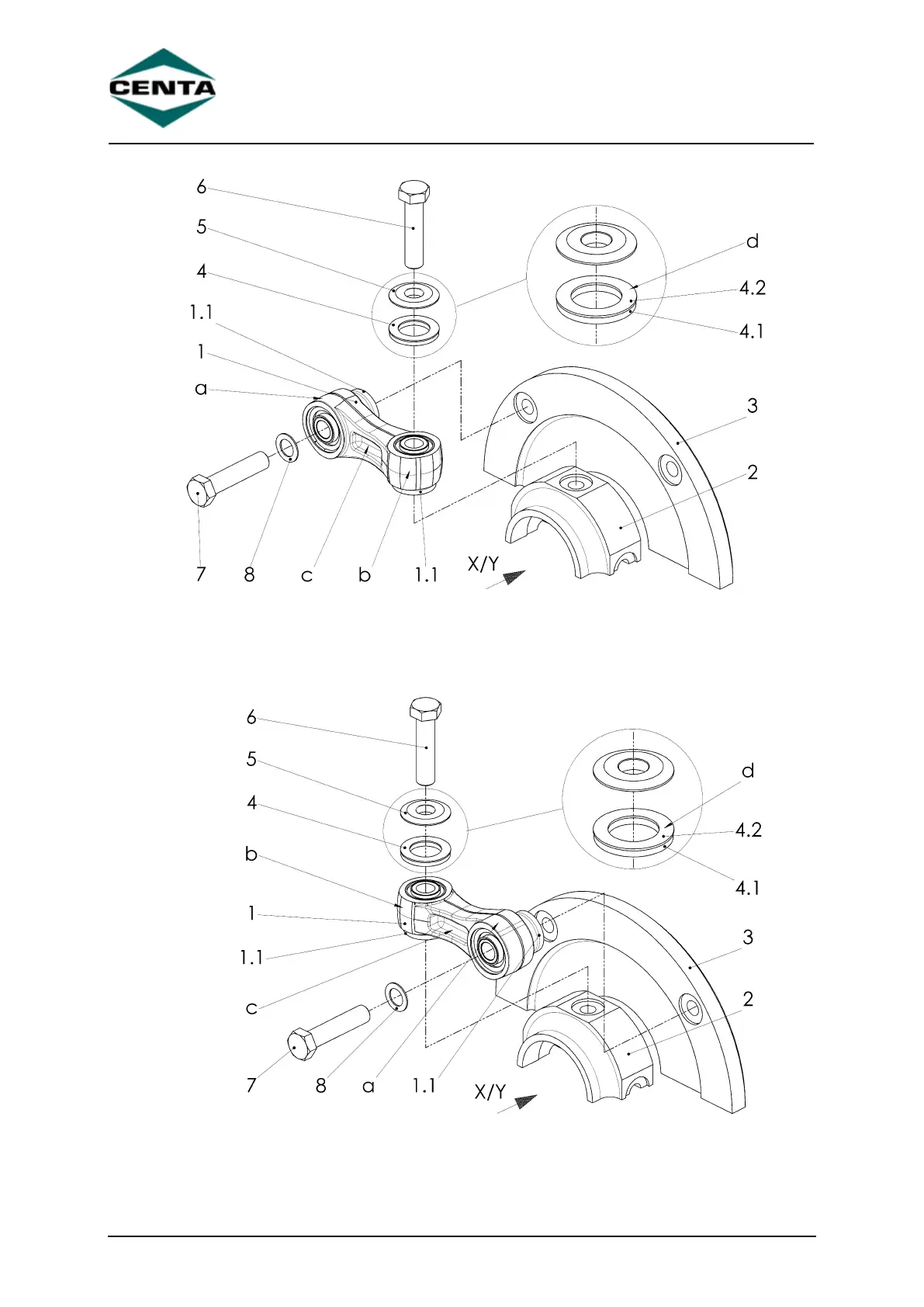

Fig. 6-9 Mounting the links ("ccw" counterclockwise rotation)
Fig. 6-10 Mounting the links ("cw" clockwise rotation)
