3) Power Factor Convention

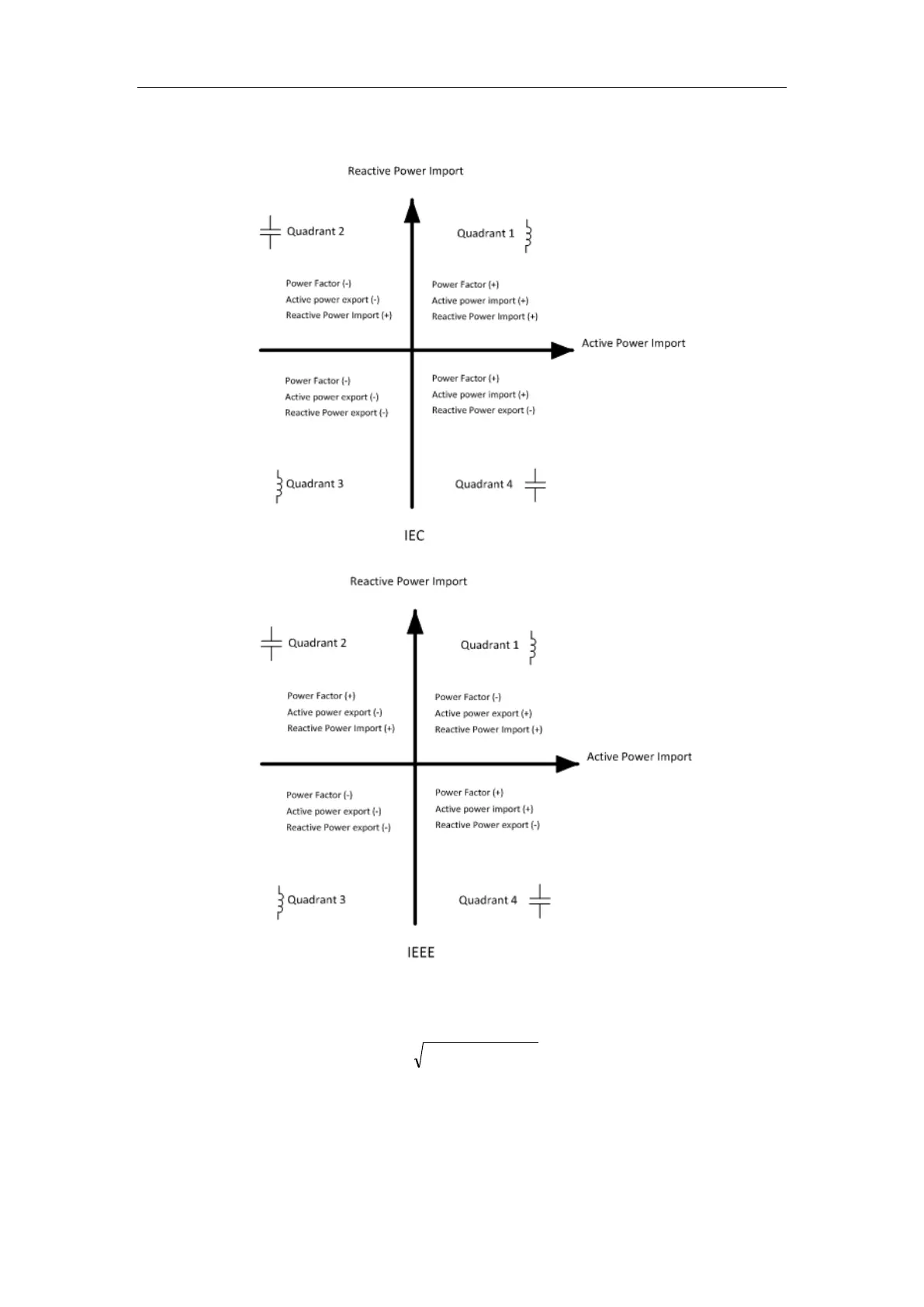

Figure 3-7 P.F. Convention
4) There are two ways to calculate kVA:
Mode V (Vector method):
2
2
totaltotal
kvarkWkVA
total

Mode S (Scalar method):
c
kVAkVAkVAkVA
ba
total

5) This menu only appears if the PMC-53 is equipped with the I residual and Temperature Inputs.
