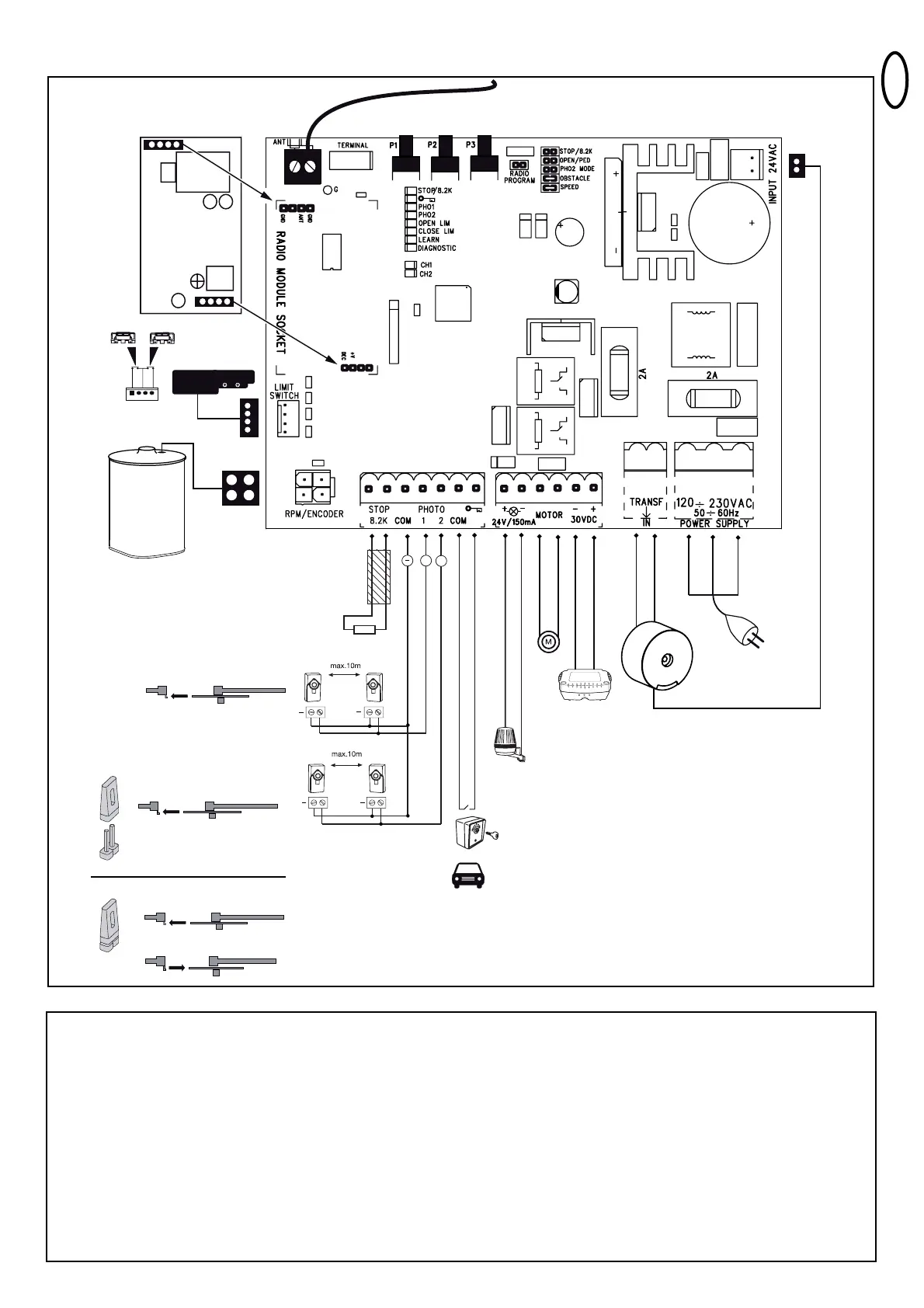

WIRING DIAGRAM
TECHNICAL DATA OF CONTROL BOARD
Voltage: 230 V~ / 50 Hz ±10%
Transformer: 230 V / 24 V, 105 VA
Output Motor: 24 VDC
Consumption max.: max. 400 W (in operation)
Consumption Standby: max. 4 W (without accessories)
Operating temperature: -20º C ÷ 55º C
Modes: Standard, Automatic
Measurements: 145 x 110 mm (without box)
Protection class Box: IP45
Fuse: 2 x 2 A (slow-blow fuse)
Remote control: max. 180 x Rolling Code
feasible frequencies: 433 MHz, 868 MHz
The motor control unit is a highly modern electronic unit controlled by
a microprocessor. It has all wiring facilities and functions required for
safe operation. The electronics provides an ideal and matching
closing force. When installed and adjusted correctly the gate can be
stopped manually. During operation, the gate can be stopped via
remote control, push-button or key-switch. The gate requires a firm
stop for “OPEN” and “CLOSED” position.
Humidity and water destroy the control board. Make sure under
all circumstances that water, humidity or dammed-up water cannot
penetrate the control board covering. All openings and cable entries
must be sealed watertight.
