CHART Orca MicroBulk CO2 Series - Plumbing Cabinet - Roadside

24
Components & Systems Product Manual - Orca
™
CO
2
Series MicroBulk Delivery System
Plumbing Cabinet - Roadside

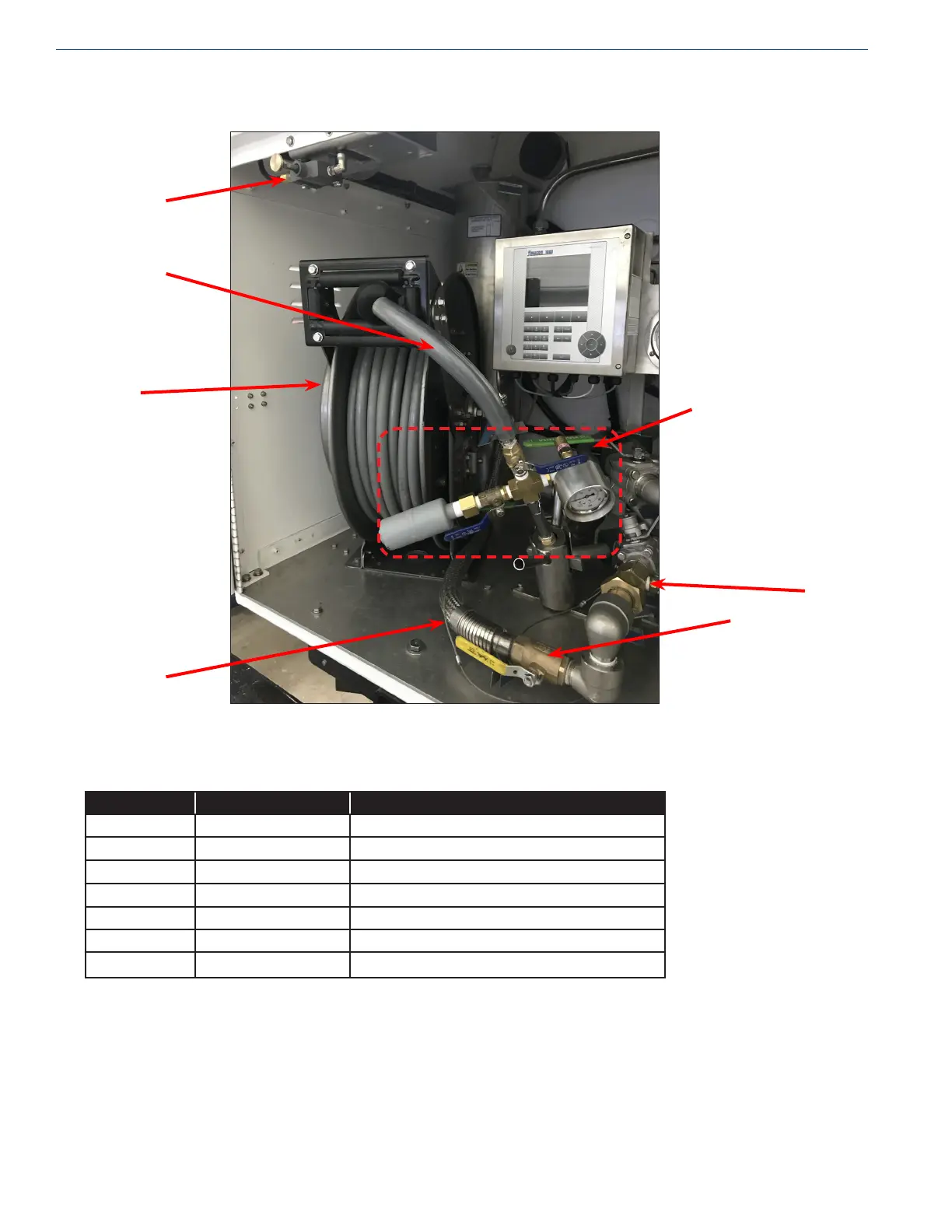

Item Tag Description
A AI-1 Anti-Tow Valve
B TRAN-1 Hose Reel Flex Hose
C HR-1 Hose Reel
D TRAN-2 Delivery Flex Hose to Hose Reel
E Fill-Gun Assembly
F DC-3 Connection, Hose Reel Inlet
G V-47 Valve, Delivery Flex Hose
