CO
2
Series MicroBulk Delivery System
Work Lights

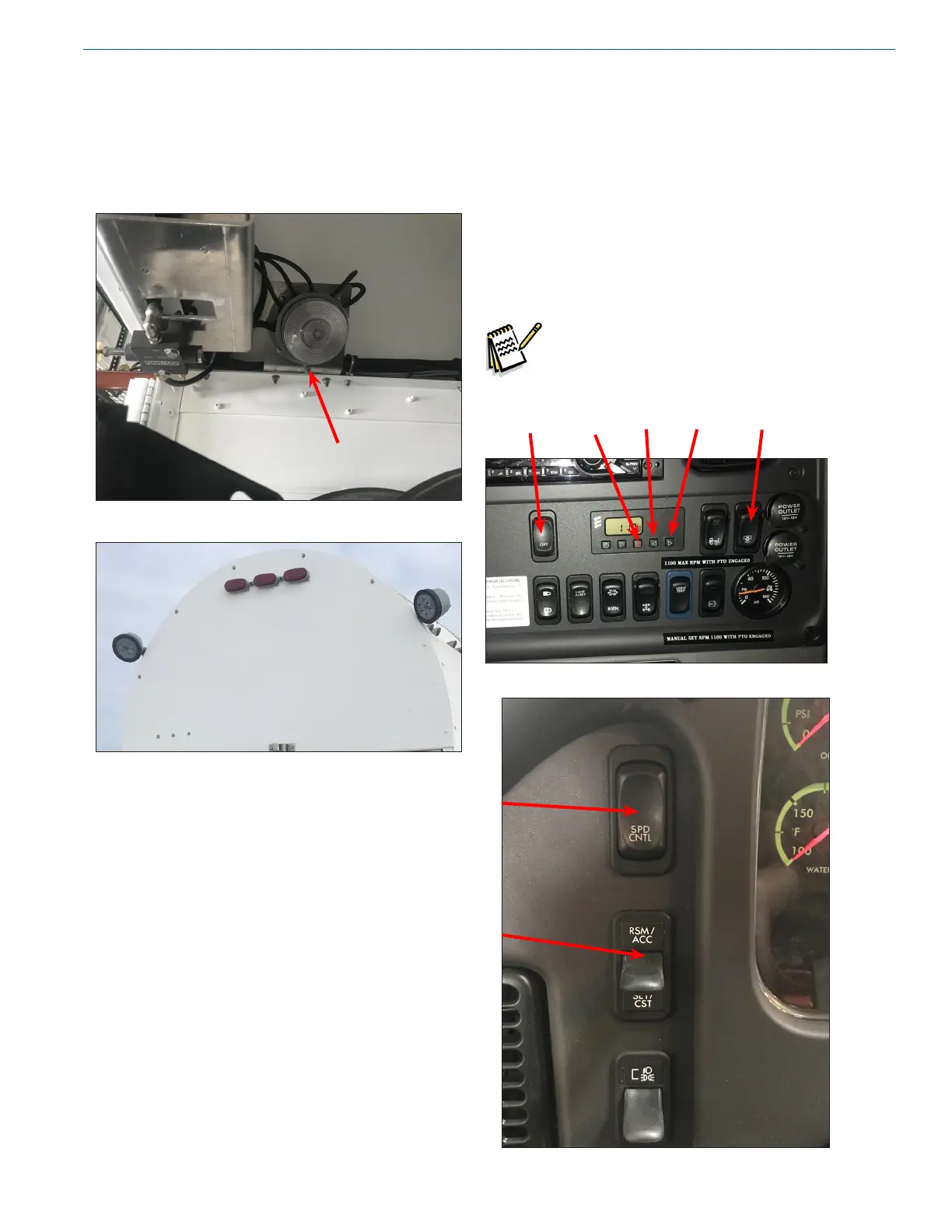

Three LED work lights are located on the back of the Orca.
The dome light in the cabinet has a switch (A) that powers
all three. The dome light also acts as a junction box for 12-
volt power into the cabinet.
Dash Controls - Truck
Programmable timer Button (A) turns on and o the pressure
build heater. Arrow Buttons (B) and (C) adjust heater on
time with key in OFF or ACC positions. If the truck is
equipped with two heaters, one for truck engine and one for
pressure build, a second timer or switch (D) is used to turn
on the pressure build heater. See OEM manual for more
information.
Switch (E) engages the PTO. Switch (F) turns on the cruise
control and Switch (G) increases engine speed to set point.
Note: WiththespecicPTOonthistruck,the
enginesetpointis1,100rpm.Thiswill
varywithotherPTOsandmaybeaslow
as950rpmmaxenginespeed.
EA
F
G
A
D B
C
