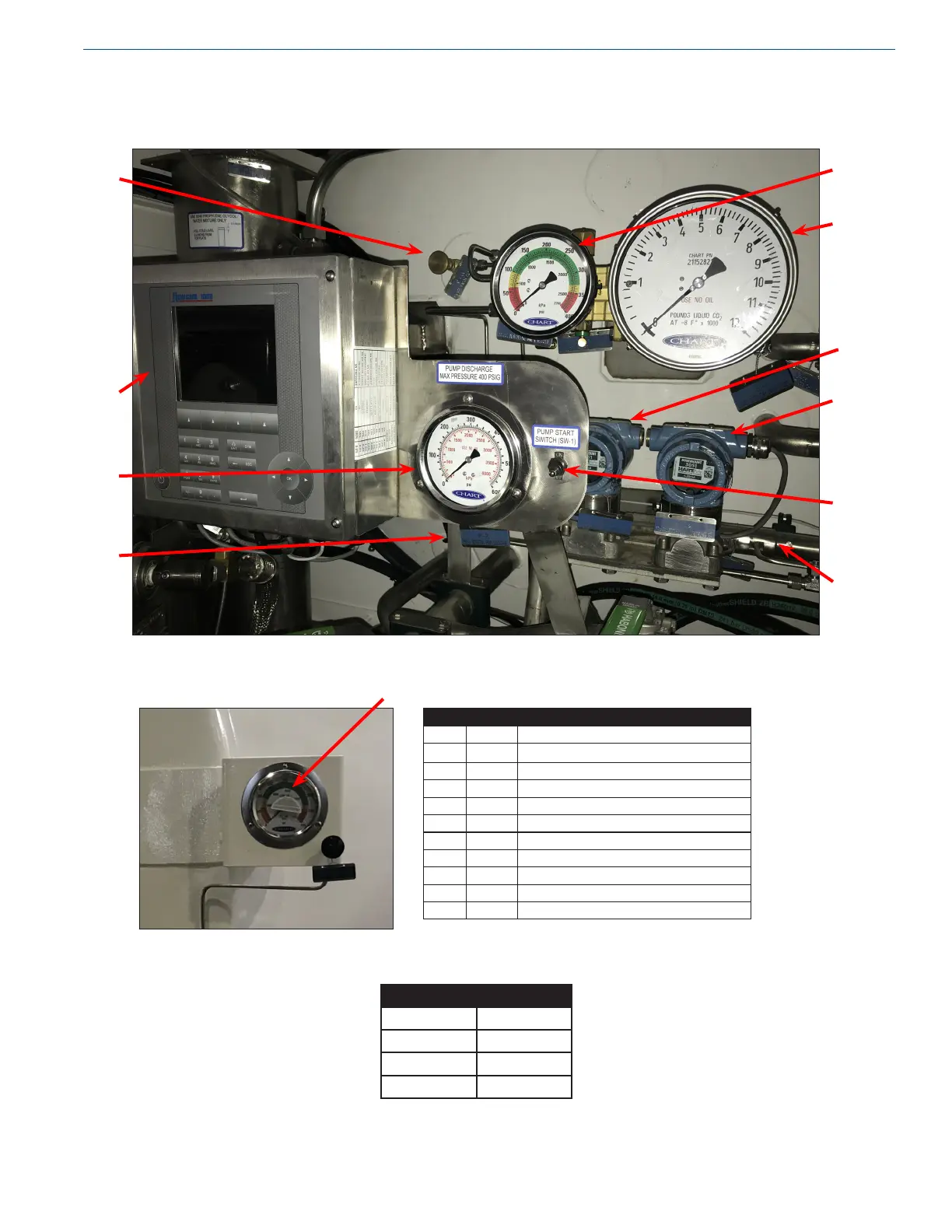

CHART Orca MicroBulk CO2 Series - Plumbing Cabinet - Top Center

25
Components & SystemsProduct Manual - Orca
™
CO
2
Series MicroBulk Delivery System
E
D
A
C
K
B
F
G
H
I
J
Item Tag Description
A V-31 Valve, Vapor Phase Isolation
B Flowcom® 1000 Flow Meter System
C PI-2 Pressure Indicator, Pump Discharge
D V-32 Valve, Liquid Phase Isolation
E PI-1 Pressure Indicator, Inner Vessel
F LI-1 Level Indicator, Inner Vessel
G DP-1 Transmitter, DP Meter Low
H DP-2 Transmitter, DP Meter High
I SW-1 Switch, Pump Start
J M-1 Flow Meter, Delivery
K PI-3 Pressure Indicator, Inner Vessel
Plumbing Cabinet - Top Center
Liquid Level Gauge Chart
Size Range
3.8 7,800
5.5 11,000
6.5 13,200
10.5 21,000
