CHART Orca MicroBulk CO2 Series - Plumbing Cabinet - Bottom Center

26
Components & Systems Product Manual - Orca
™
CO
2
Series MicroBulk Delivery System
D
A
B
C
E
F G H
I
J K L

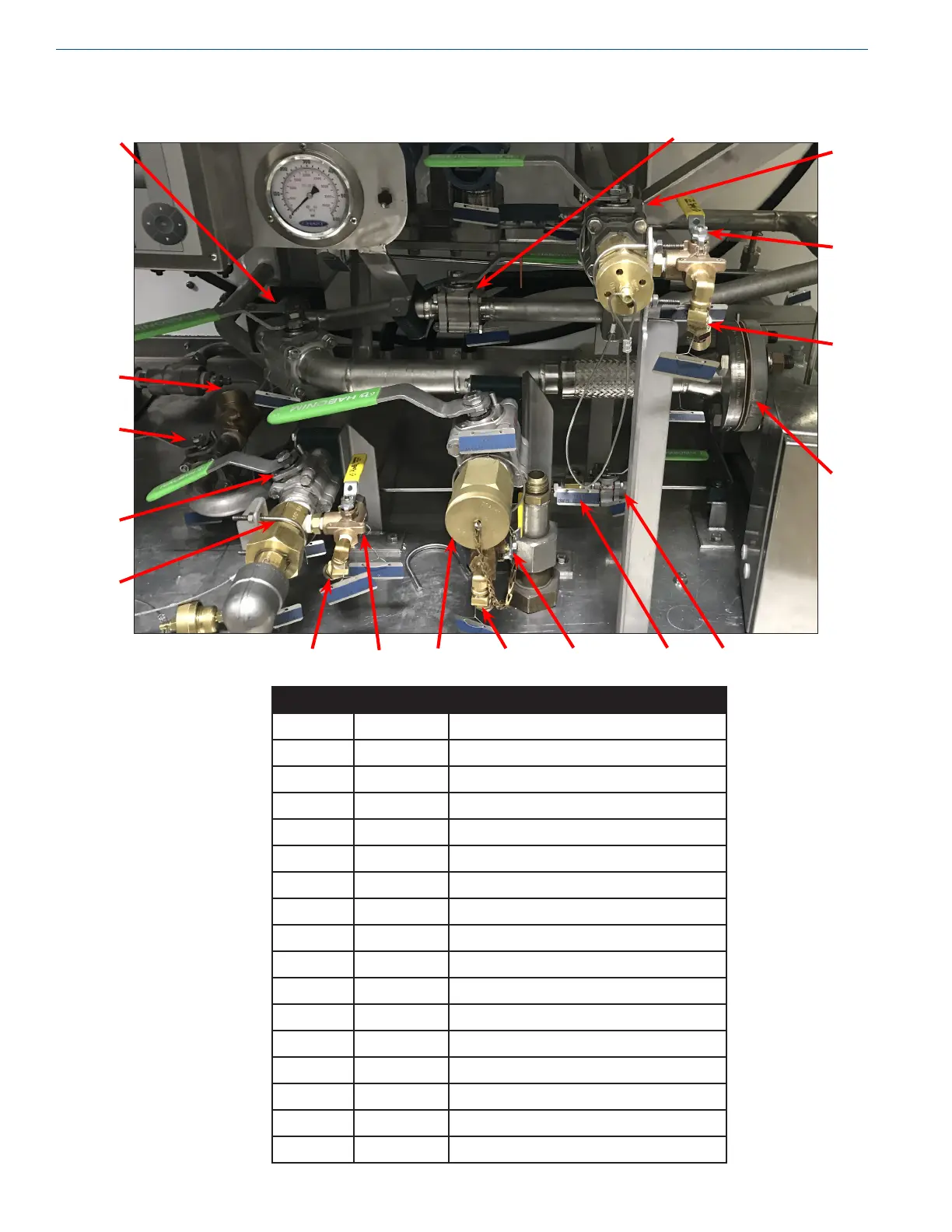

Plumbing Cabinet - Bottom Center
Item Tag Description
A V-1 Valve, Pump Inlet/Fill
B CV-2 Check Valve, PB Inlet
C V-28 Valve, PB Liquid
D V-41 Valve, Dispense
E DC-2 Connection, Dispense
F RV-6 Relief Valve, Dispense
G V-8 Valve, Dispense Line Drain
H DC-1 Connection, Fill Line
I RV-10 Relief Valve, Fill
J V-9 Valve, Fill Line Drain
K OR-1 Orice, Force Feed
L V-16 Valve, PF Force Feed
M V-4 Valve, Pressure Dispense
N V-44 Valve, Vapor Balance
O V-45 Valve, Vapor Balance Line Drain
P RV-7 Relief Valve, Vapor Balance
Q S-1 Strainer, Pump Inlet
N
O
P
Q
M
