CHART Orca MicroBulk CO2 Series - Trailer Hydraulic System

53
SpecicationsProduct Manual - Orca
™
CO
2
Series MicroBulk Delivery System
Trailer Hydraulic System
DIESEL
ENGINE
HYDRAULIC
PUMP
CO2
PUMP
HYDRAULIC
MOTOR
HYDRAULIC
RESERVIOR
FILTER
COOLER
TEMPERATURE
SWITCH
Pump
Start
Switch

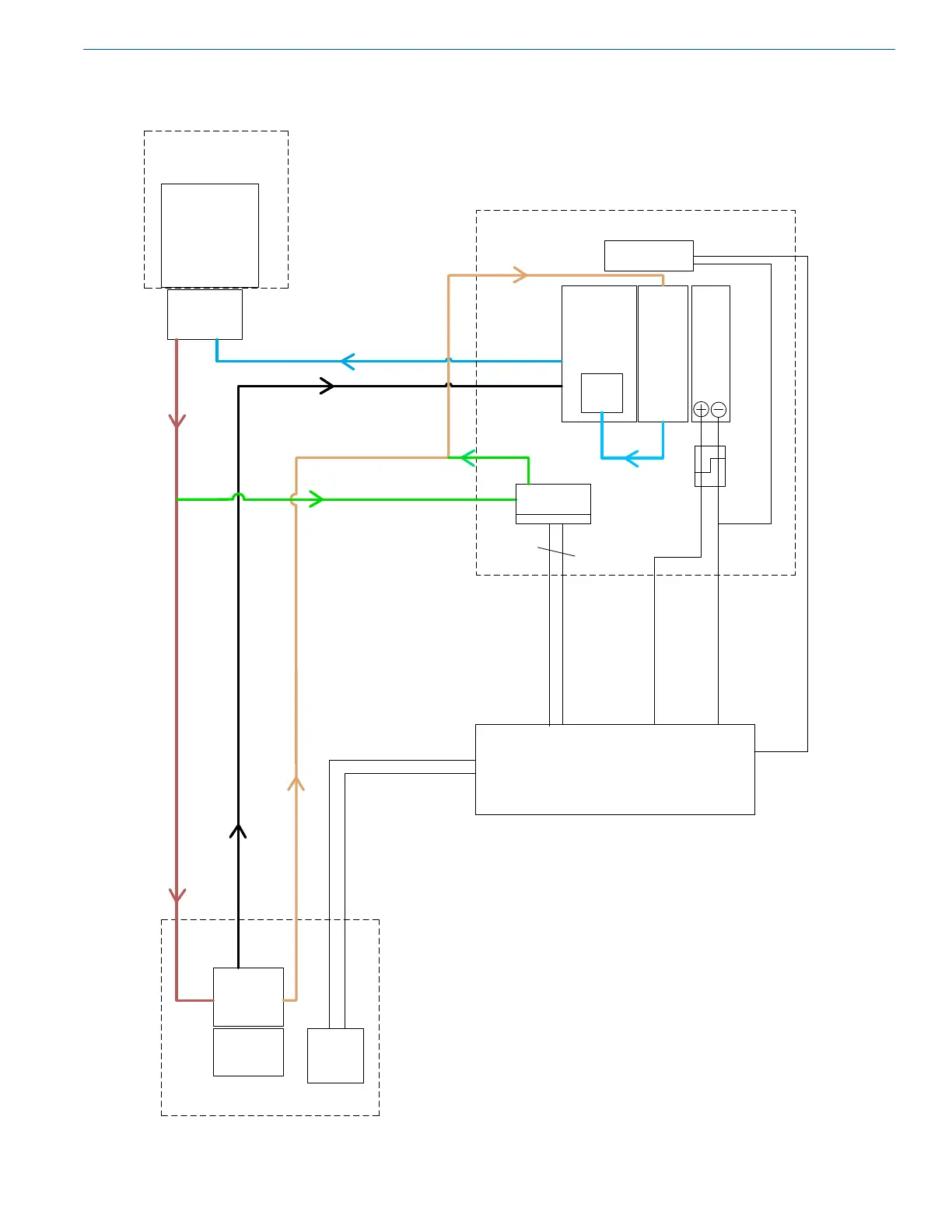

TRAILER HYDRAULIC SYSTEM
SUCTION
RECIRCULATION
RETURN
CASE DRAIN
HIGH
PRESSURE
LOW PRESSURE
INSIDE CABINET
FAN
HYDRAULIC POWER UNIT OUTSIDE SHROUD
HYDRAULIC POWER
UNIT INSIDE
SHROUD
12 GA BK
12 GA BK
See Trailer
Electrical System
HYDRAULIC
VALVE
14 GA BK
14 GA BK
SOLENOID
