CHART Orca MicroBulk CO2 Series - Plumbing Cabinet - Other Piping

28
Components & Systems Product Manual - Orca
™
CO
2
Series MicroBulk Delivery System

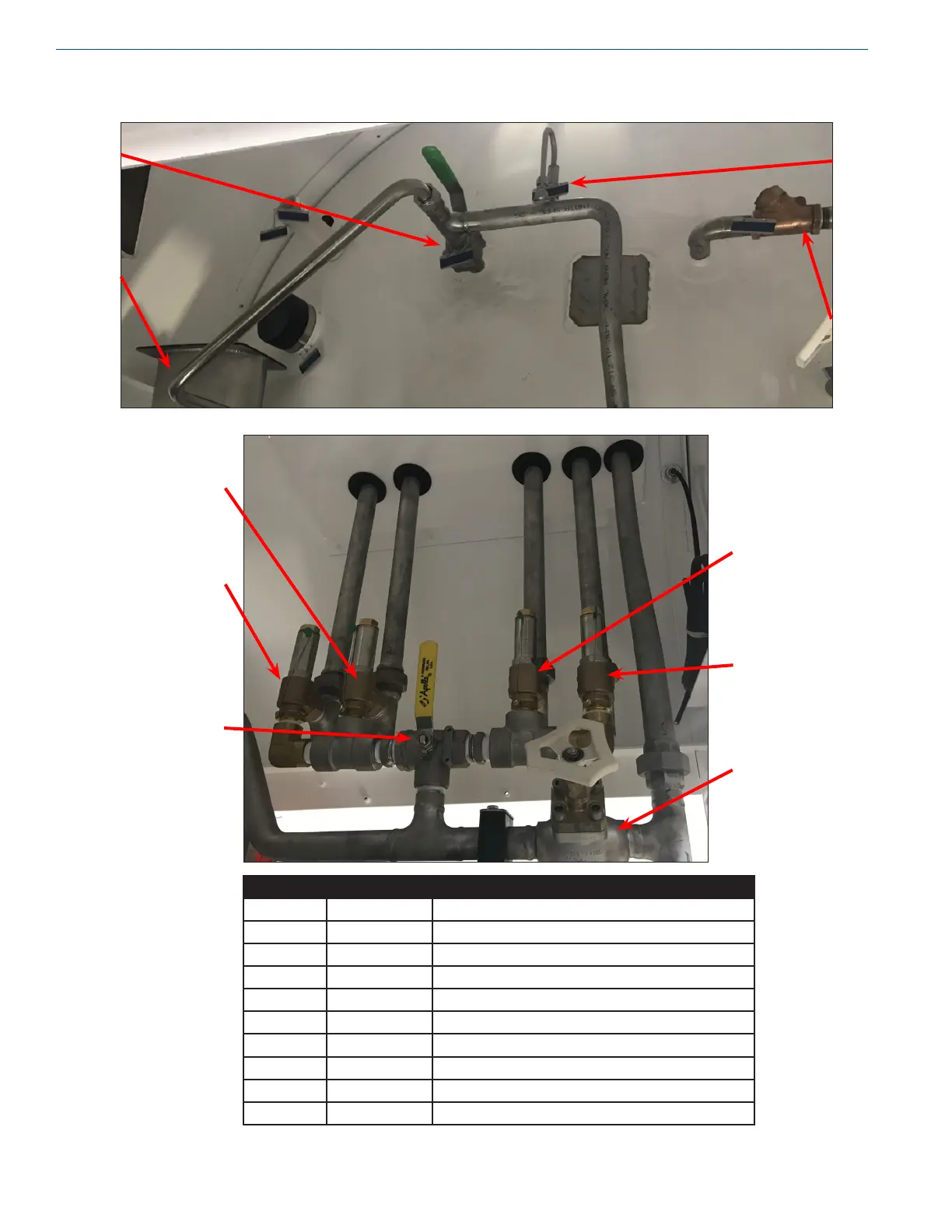

Plumbing Cabinet - Other Piping
Item Tag Description
A V-13 Valve, Vapor Balance/PB Isolation
B PBC-1 Pressure Building Coil
C RV-5 Relief Valve, Pressure Build
D CV-5 Check Valve, Bypass
E RV-1A Safety Valve, Inner 350 psig
F RV-1B Safety Valve, Inner 375 psig
G V-15 Valve, Safety Relief Selector
H RV-2A Safety Valve, Inner 350 psig
I RV-2B Safety Valve, Inner 375 psig
J V-5 Valve, Vapor Vent
B
A
D
C
E
F
G
H
I
J
