Attaching the Rail Plates
Rack Mounting Page 17
Attaching the Rail Plates

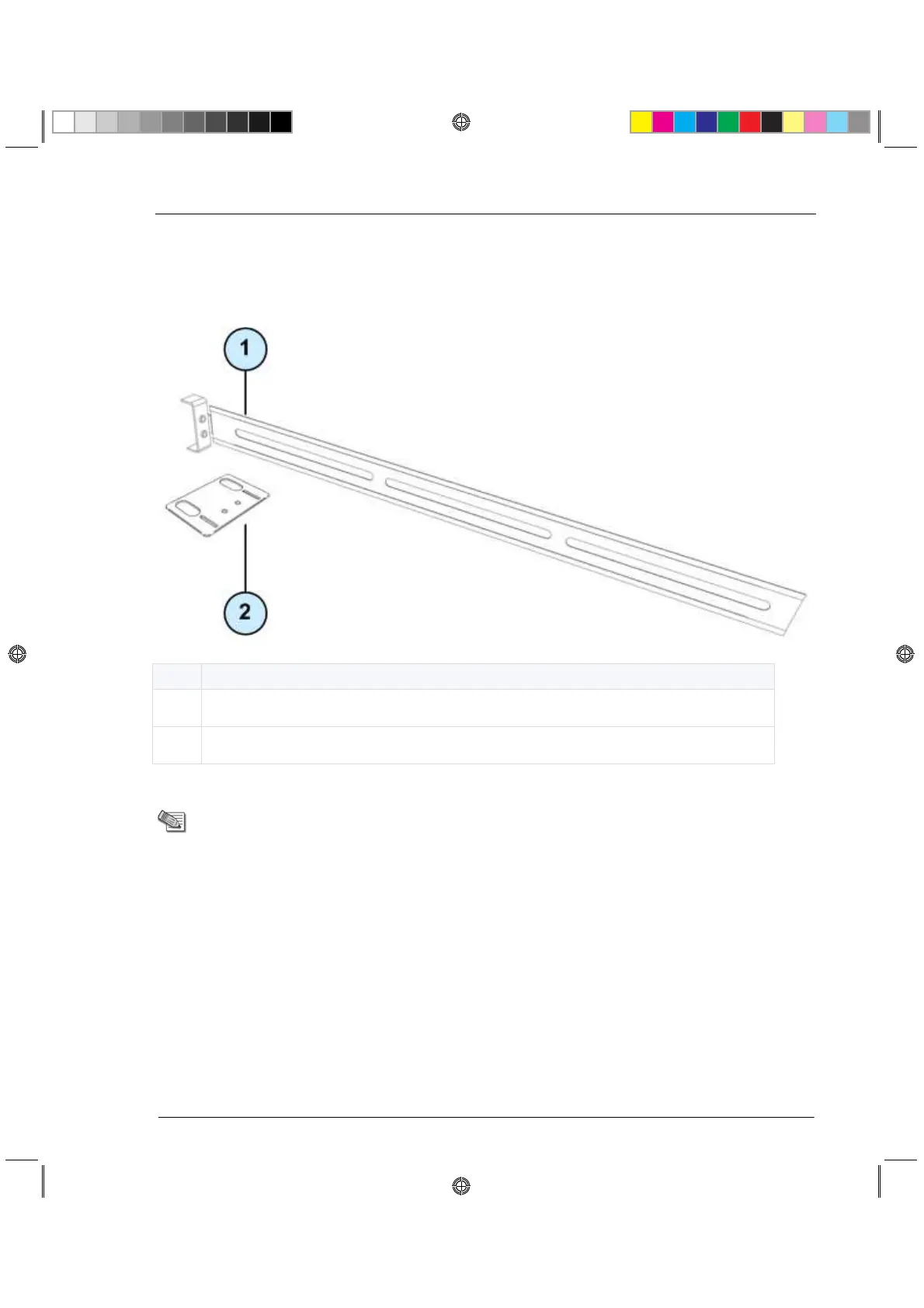

Attach the rail plates to the appliance rails to attach the appliance to the rear vertical rails of the
rack.
Item
Description
1
Appliance rail
2
Rail plate
Note - The appliance rail screws have 8 mm heads.
To attach the rail plates:
1. Attach a rail plate to an appliance rail using two appliance rail screws.
2. Do step 1 again for the other rail plate and appliance rail.
