Installing the Appliance in the Rack
Page 20
Installing the Appliance in the Rack

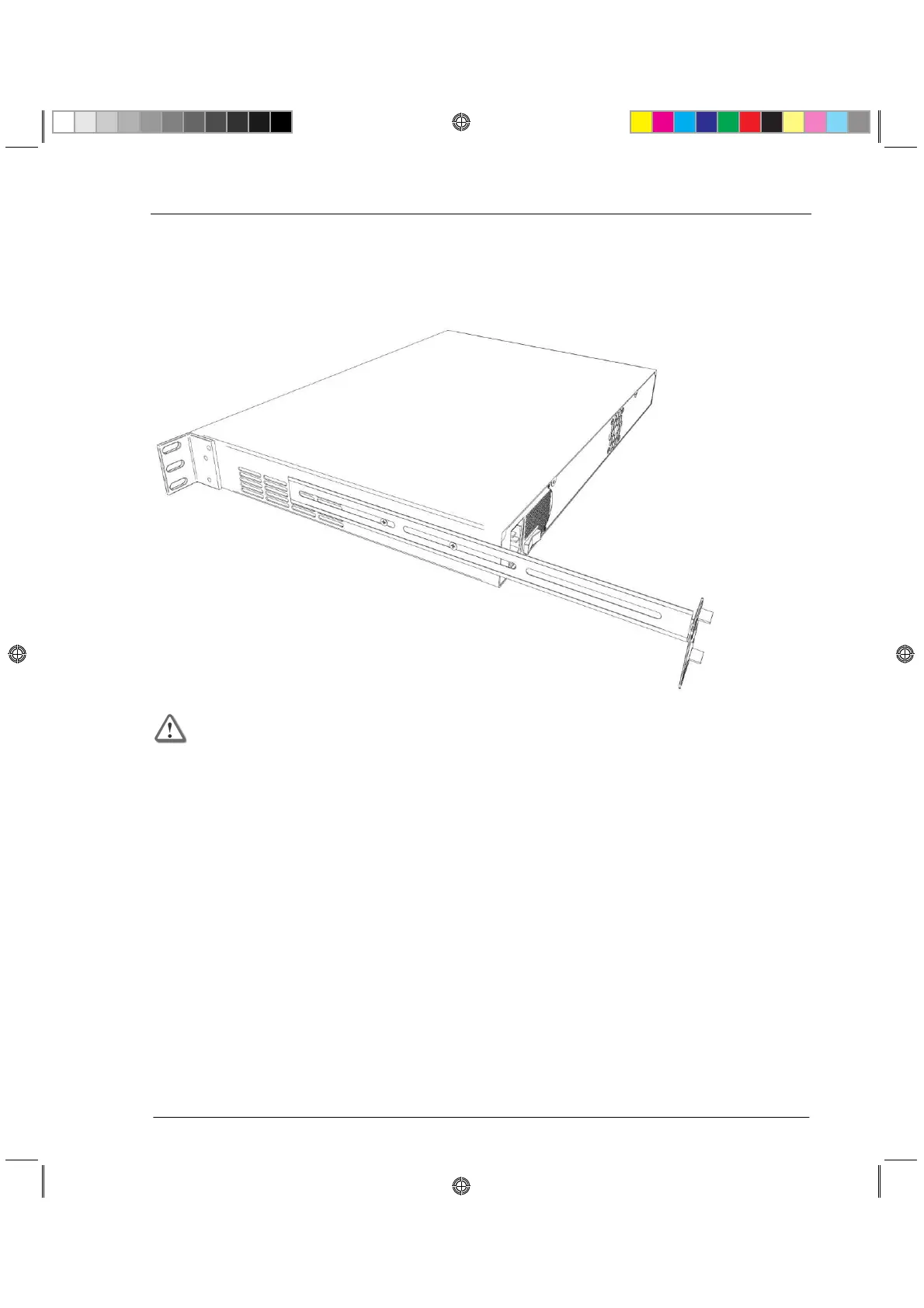

Install the appliance in the rack. It may be necessary to adjust the appliance rails to secure the
appliance to the rack.
Important - Two people are required to install the appliance in a rack in order to prevent
any possible damage.
To install the appliance in the rack:
1. Attach the ear mount brackets to the front of the rack.
2. Attach the rail plates to the rear of the rack.
3. Confirm that the appliance is stable and secure in the rack.
