Installation Model 55,75,90, & HMC FLEX-AUGER
16
MA1702D
Supporting the System Outside the Building
Some systems require additional support to avoid sagging auger tubes. This support must be adequate to support
the weight of the auger tubes filled with feed. Special attention should be given to avoid excessive pressure from
the auger being transferred to boot. Chain or cable suspended from the bin or building will not provide adequate
support for these systems.

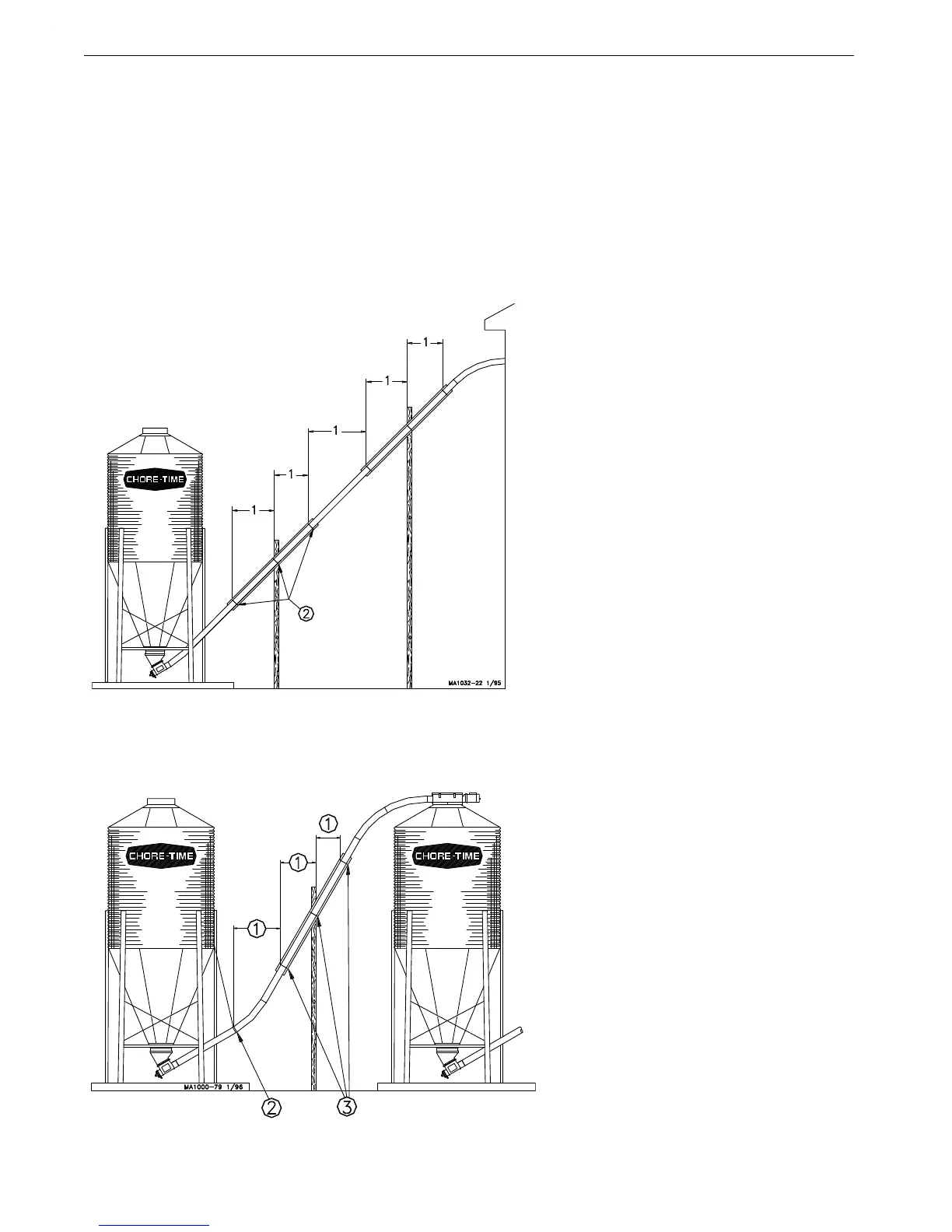

Some common systems are shown in Figure 9, Figure 10, and Figure 11 with the recommended supports.
Note:Supports must be designed to prevent (weight) loads from being transferred back onto the
boot.
Elevated Systems
Bin to Bin Fill Systems
Key Description
1 5’ (1.5 m) for PVC systems
10’ (3 m) for STEEL systems
2 Place clamps here.
Figure 9.Elevated Systems
Figure 10.Bin to Bin Fill Systems
Key Description
1 5’ (1.5 m) for PVC systems
10’ (3 m) for STEEL systems
2 Place clamps here.
