Chore-Time 55 - Parts Listing; Direct Drive Control Unit (Single Phase)

Parts Listing Model 55,75,90, & HMC FLEX-AUGER
36
MA1702D

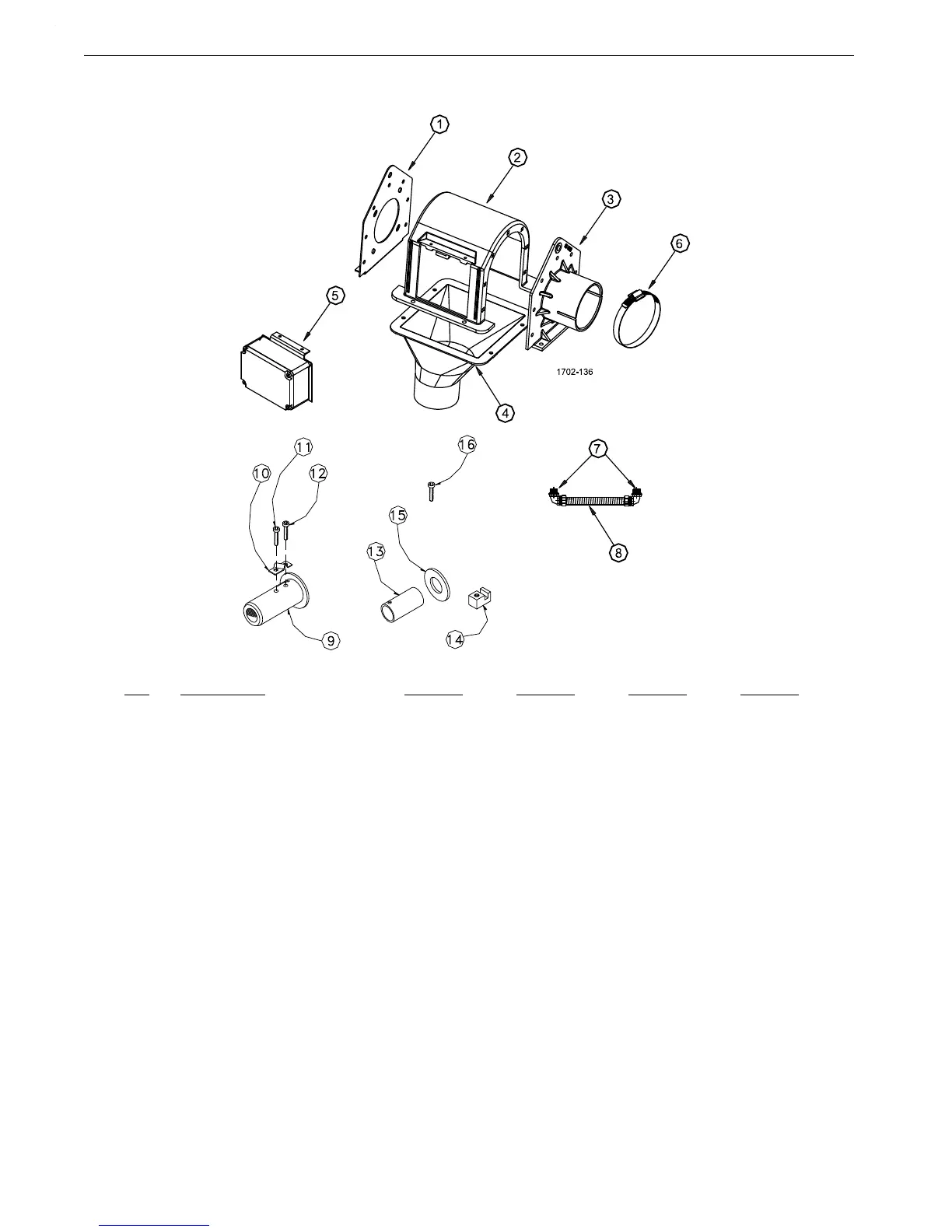

Direct Drive Control Unit (Single Phase)
Model 55 Model 75 Model 90 Model HMC
46800-1 46800-2 46800-4 46800-3
KEY
DESCRIPTION PART NO. PART NO. PART NO. PART NO.
1 Gearhead End Plate 43596 43596 43596 43596
2 Control Unit Body 43601 43601 43601 43601
3 Tube Anchor Plate Weldment 45924 45925 45926 45926
4 Control Unit Funnel 45943-1 45943-1 45943-2 45943-2
5 Switch & Plate Assembly 46051 46051 46051 46051
6 H.D. Adjustable Clamp 47652-1 47652-1 47652-1 47652-1
7 Water Tight Connector 23810 23810 23810 23810
8 Non-Metal Flex Conduit 26982-10 26982-10 26982-10 26982-10
9* Driver Weldment 7704 7706 7704
10* Anchor Clamp 7703 7703 7703
11* 5/16-18x1/2” Socket Hd Cap Screw 6850-3 6850-3 6850-3
12* 5/16-18x2-1/2” Socket Hd Cap Screw 6850-4 6850-4 6850-4
13* Drive Tube 2920
14* Drive Block 4642
15* Flat Washer 1484
16* 1/4-20x1-1/2” Screw 5083-8
-- Driver Assembly 46458 6862 6861 6862
*Parts included in Driver Assembly (Part No’s 46458,6862, or 5861 respectively.
