Chore-Time 55 - Boot Baffles for Straight-Through Boot Systems

Model 55,75,90, & HMC FLEX-AUGER Installation
29
MA1702D
Boot Baffles for Straight-Through Boot Systems
The Chore-Time Boot Baffles are for use with dry, coarse, mash, crumbles, or pelleted feeds to prevent boots from
overcharging the system.
The Boot Baffles are intended for use in both “straight-out” & “straight-through” boots. Boot Baffles are factory
installed on Straight-Through Boot Systems.
See Figure 30 for applications and auger direction.
Model 75 Single Straight-Through System
Model 90 and HMC
Single Straight-Through System
Model 75 Combination Single-Twin
Straight Through System
Model 90 Combination Single-Twin
Straight Through System
Model 75,90, or HMC
Twin Straight-Through System
Model 75,90, or HMC
Twin Straight-Through System
Model 75,90, or HMC
Twin Straight-Through System
Model 90 Three Bin System
Twin Straight-Through System
Model 90 Three Bin System
Twin Straight-Through System
Key Description
1 Single Baffled Boot
2 Twin Baffled Boot (Model 75 or 90) Mount Either Direction
3 Arrow Tape
*
Note:On twin systems running in opposite directions, follow the tape
on the bearing end of the system.

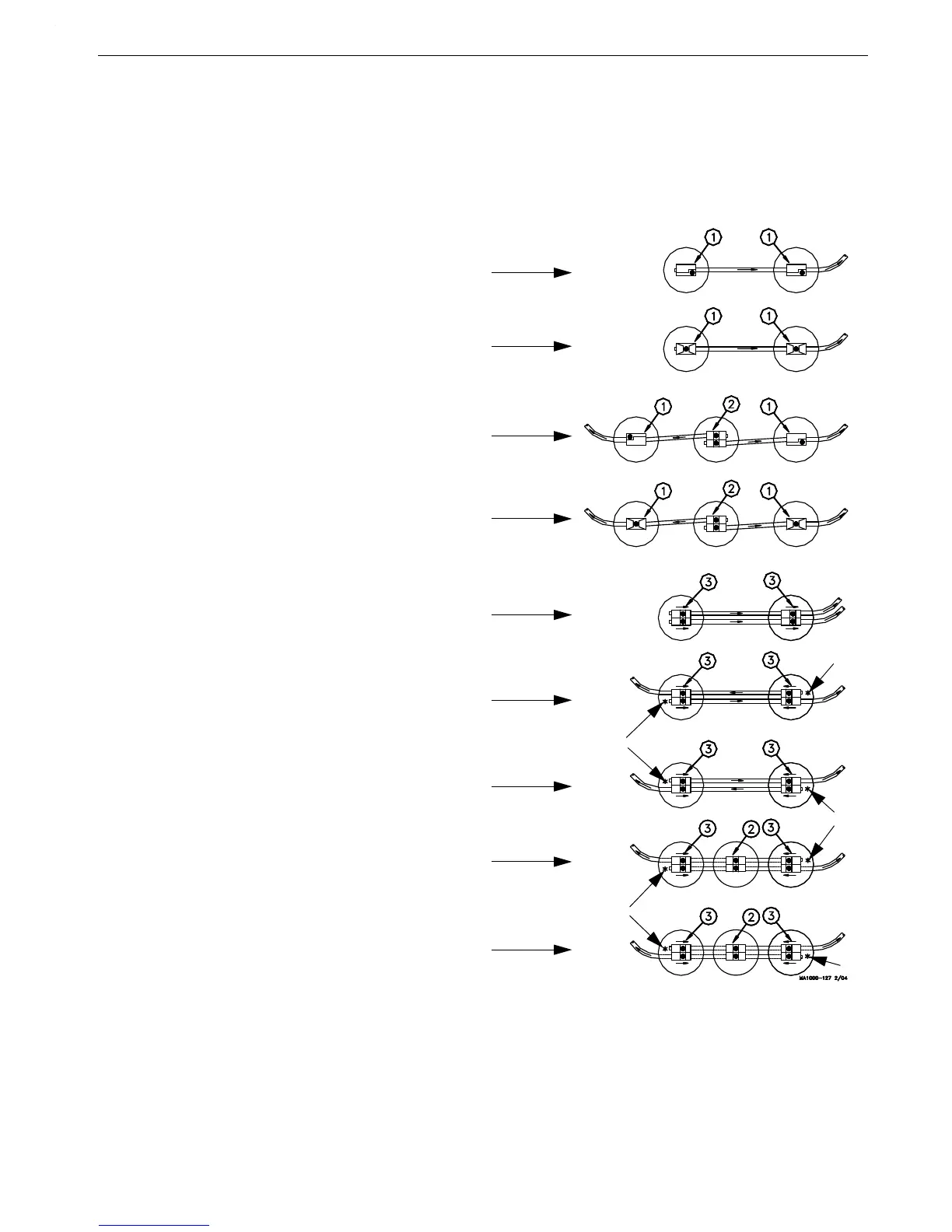

Figure 30.Optional Baffle Configurations
(Requires (1) 6147 3’ Stub Tube
*
*
*
*
*
or (1) 6147SS 3’ Stub Tube )
