Chore-Time 55 - Parts Listing; Model 90 Boot Components

Model 55,75,90, & HMC FLEX-AUGER Parts Listing
47
MA1702D
Model 90 Boot Components
See “Boot Components” on page 43 for Part Schematic.

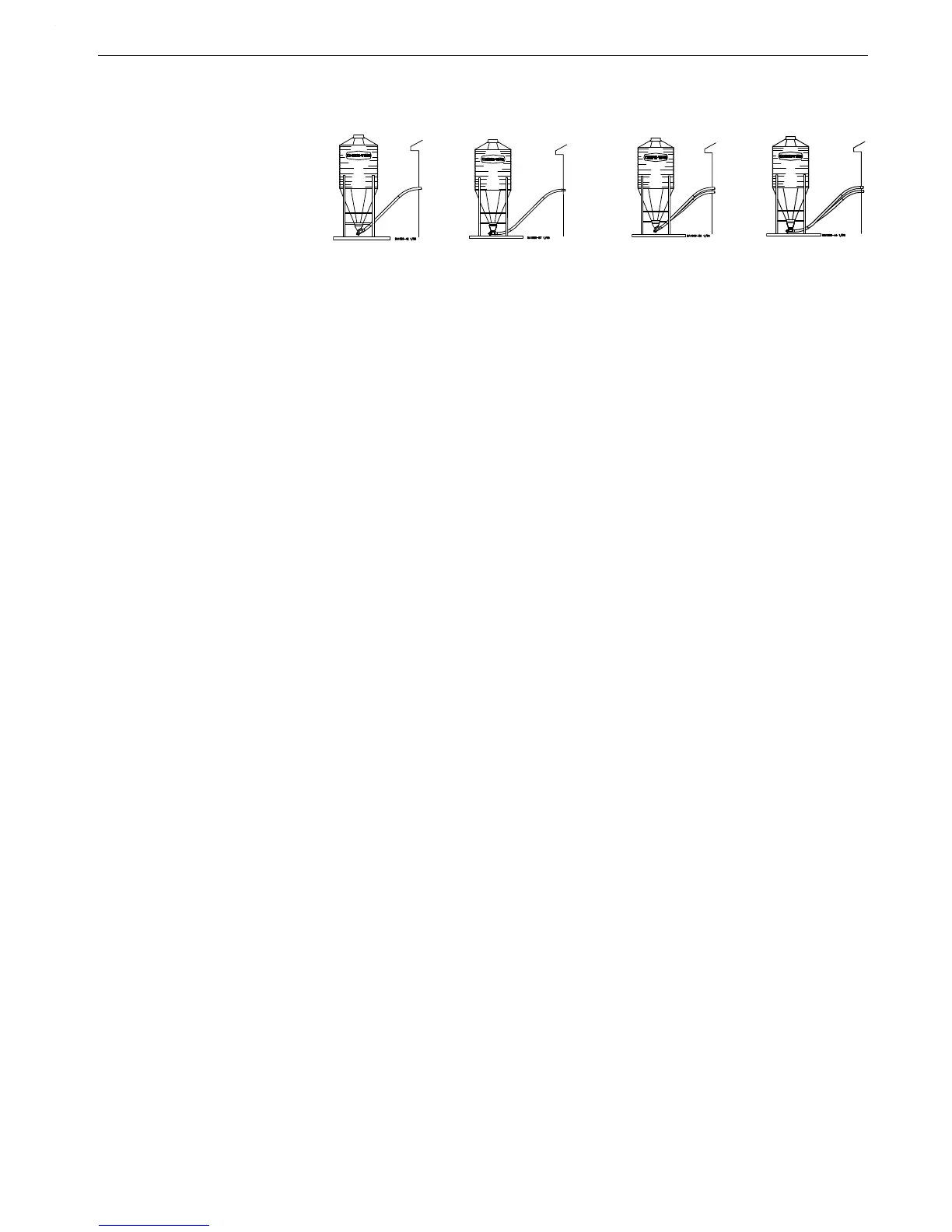

30 Degree Straight-Out 30 Degree Straight-Out
Item Description Single Boot Single Boot Twin Boot Twin Boot
--
5
Complete System 6161
5
or 6161SS
5
* 6187
5
or 6187SS
5
* 6874
5
or 6874SS
5
* 6535
5
or 6535SS
5
*
--
2
Lower Boot Assembly 9301 or 9301SS* 36435 or 36435SS* 36391 or 36391SS* 36398 or 36398SS*
1A
6
30 Degree Upper Boot 4347R
6
- - - - 4347R
6
- - - -
1B
6
Straight Out Upper Boot - - - - 6093R
6
- - - - 6093R
6
2
3
Transfer Plate Weldment 4359 4359 4359 - - - -
3
3
Slide 4357 or 4357SS* 4357 or 4357SS* 4357 or 4357SS* - - - -
4
3
Slide Shield 4876 4876 4876 - - - -
5
3,7
Chain Assembly 27374 27374 27374 27374
7 Neoprene Seal 5035 5035 5035 5035
8 Seal Ring 2612 2612 2612 2612
10 Cannonball 3531 3531 3531 3531
11 Single Boot Body 28873 or 28873SS* 36433 or 36433SS* - - - - - - - -
12 Twin Boot Body - - - - - - - - 36354 or 36354SS* 36354 or 36354SS*
22
4
Back Plate Weldment 6298 or 6298SS* 6298 or 6298SS* 6298 or 6298SS* 6298 or 6298SS*
23
4
Clean-Out Cover 6301 or 6301SS* 6301 or 6301SS* 6301 or 6301SS* 6301 or 6301SS*
26A Tube Clamp Kit 6721 6721 6721 6721
28
1
5/16-18 x 3/8” Set Screw 1174 1174 1174 1174
29
1
5/8” Set Collar 1386 1386 1386 1386
34
1
Clamp Pin 4702 4702 4702 4702
35
1
5/16-18 x 1/2” Set Screw 5095 5095 5095 5095
36
1
Anchor Shaft 43281 43281 43281 43281
37
1
Anchor Tube Weldment - - - - 26048 26048 26048
38
1
Clamp Spacer 5009 5009 5009 5009
39
4
Sealing Washer 8491 or 8491SS* 8491 or 8491SS* 8491 or 8491SS* 8491 or 8491SS*
40
4
5/16-18 Wing Nut 2146 or 2146SS* 2146 2146SS* 2146 2146SS* 2146 2146SS*
41 Tube Clamp Kit 6721 6721 6721 6721
44
1
Bearing Cap Assembly 34830 34830 34830 34830
45
1
Safety Cap 29702 29702 29702 29702
46
1
Anchor Tube Weldment 6833 - - - - - - - - - - - -
49 Cannonball Guard - - - - - - - - 35843 or 35843SS* - - - -
50 Twin End Baffle (90) - - - - - - - - 36026 or 36026SS* - - - -
51 Single Inlet Baffle (90) - - - - 35998 or 35998SS* - - - - - - - -
52 Single Outlet Baffle (90) - - - - 35999 or 35999SS* - - - - - - - -
54 Twin Inlet Baffle (90) - - - - - - - - - - - - 36000 or 36000SS*
55 Twin Outlet Baffle (90) - - - - - - - - - - - - 36001 or 36001SS*
58
3,7
Hairpin 13906 13906 13906 13906
59
7
Slide - - - - - - - - - - - - 14821 or 14821SS*
60
7
Transfer Plate Assembly - - - - - - - - - - - - 36642
61
7
Slide Shield Assembly - - - - - - - - - - - - 14827
1
These components may be ordered as a Model 90 Anchor Bearing Assembly under Chore-Time Part No. 35345 with Short
Restrictor (except for 30° Single Boot Systems, order Part No. 35343 with Long Restrictor).
2
Items 2 through 55 and item 58 (as listed above) make up the Lower Boot Assemblies (Single or Twin).
3
Items 2 through 5 and item 58 may be ordered under Chore-Time Part No. 6284 or 6284SS.
4
Items 22, 23, 39, & 40 may be ordered under Chore-Time Part No. 6197 or 6197SS Clean-Out Cover Ass’y.
5
All Complete Systems will come with transparent Red upper boot(s) unless specified with a “C” (i.e. Complete System #
6161C) This “C” indicates the Complete System will come with a transparent Clear upper boot(s).
6
Upper boot Part No.’s will have a suffix “R” for transparent Red upper boots (i.e. 4347R) or will have a suffix “C” for
transparent Clear upper boots (i.e. 4347C).
7
Included in 36683 Twin Boot Slide Assembly.
*SS=Stainless Steel.
