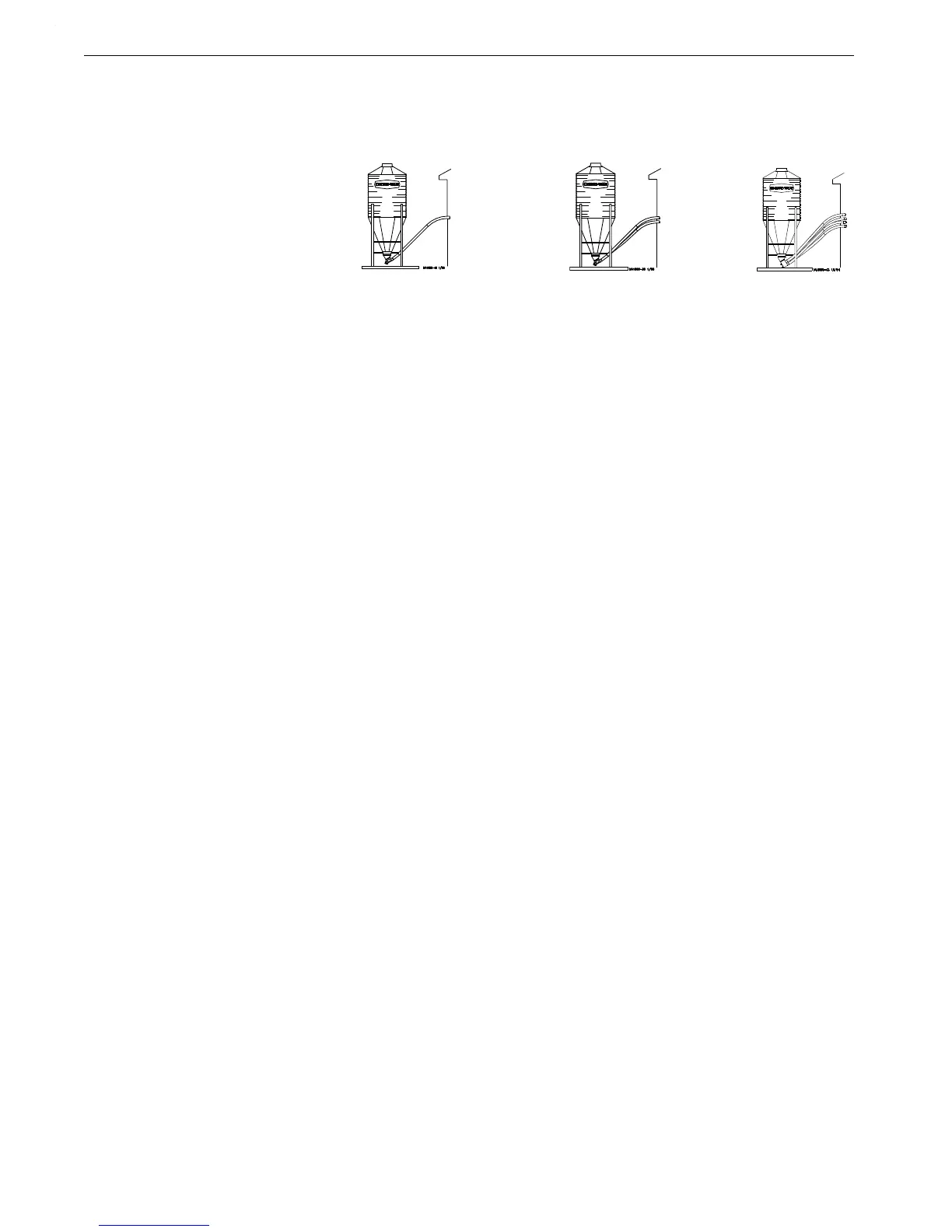

30 Degree 30 Degree 30 Degree
Item Description Single Boot Twin Boot Quad Boot
--
5
Complete System 8465
5
8466
5
8467
5
--
2
Lower Boot Assembly 9313 9314 9315
1A
6
30 Degree Upper Boot 4347R
6
4347R
6
4347R
6
2
3
Transfer Plate 4359 4359 4359
3
3
Slide 4357 4357 36091
4
3
Slide Shield 4876 4876 4876
5
3
Chain Assembly 27374 27374 27374
7 Neoprene Seal 6394 6394 6394
8 Seal Ring 2612 2612 2612
9 Tube Clamp 29515 29515 29515
10 Cannonball 3621 3621 3621
11 Single Boot Body 7999 - - - - - - - -
13
1
Model 55 Anchor 39410 39410 39410
14
1
Auger Clamp 39205 39205 39205
15
1
Socket Head Screw 6850-7 6850-7 6850-7
16
1
Anchor Bearing 39407 39407 39407
17
1
Set Collar 1386 1386 1386
20 Cap 29523 29523 29523
21 Stub Tube 4163 4163 4163
22
4
Back Plate Weldment 6298 6298 6298
23
4
Clean-Out Cover 6301 6301 6301
24 Quad Boot Weldment - - - - - - - - 7980
25 Outlet Cover - - - - - - - - 8026
26B Tube Clamp 29520 29520 29520
39
4
Sealing Washer 8491 8491 8491
40
4
5/16-18 Wing Nut 2146 2146 2146
42 5” Stub Tube 8555 8555 8555
56 Twin Boot Body Weldment - - - - 7998 - - - -
58
3
Hairpin 13906 13906 13906
1
These components may be ordered as a Model 55 Anchor Bearing Assembly under Chore-Time Part No. 39405.
2
Items 2 through 56 and item 58 (as listed above) make up the Lower Boot Assemblies (Single, Twin, or Quad).
3
Items 2 through 5 and item 58 may be ordered under Chore-Time Part No. 6284 or 6284SS*.
4
Items 22, 23, 39, & 40 may be ordered under Chore-Time Part No. 6197 or 6197SS* Clean-Out Cover Ass’y.
5
All Complete Systems will come with transparent Red upper boot(s) unless specified with a “C” (i.e. Complete System
# 8465C) This “C” indicates the Complete System will come with a transparent Clear upper boot.
6
Upper boot Part No.’s will have a suffix “R” for transparent Red upper boots (i.e. 4347R) or will have a suffix “C” for
transparent Clear upper boots (i.e. 4347C).
