Model 55,75,90, & HMC FLEX-AUGER Installation
27
MA1702D

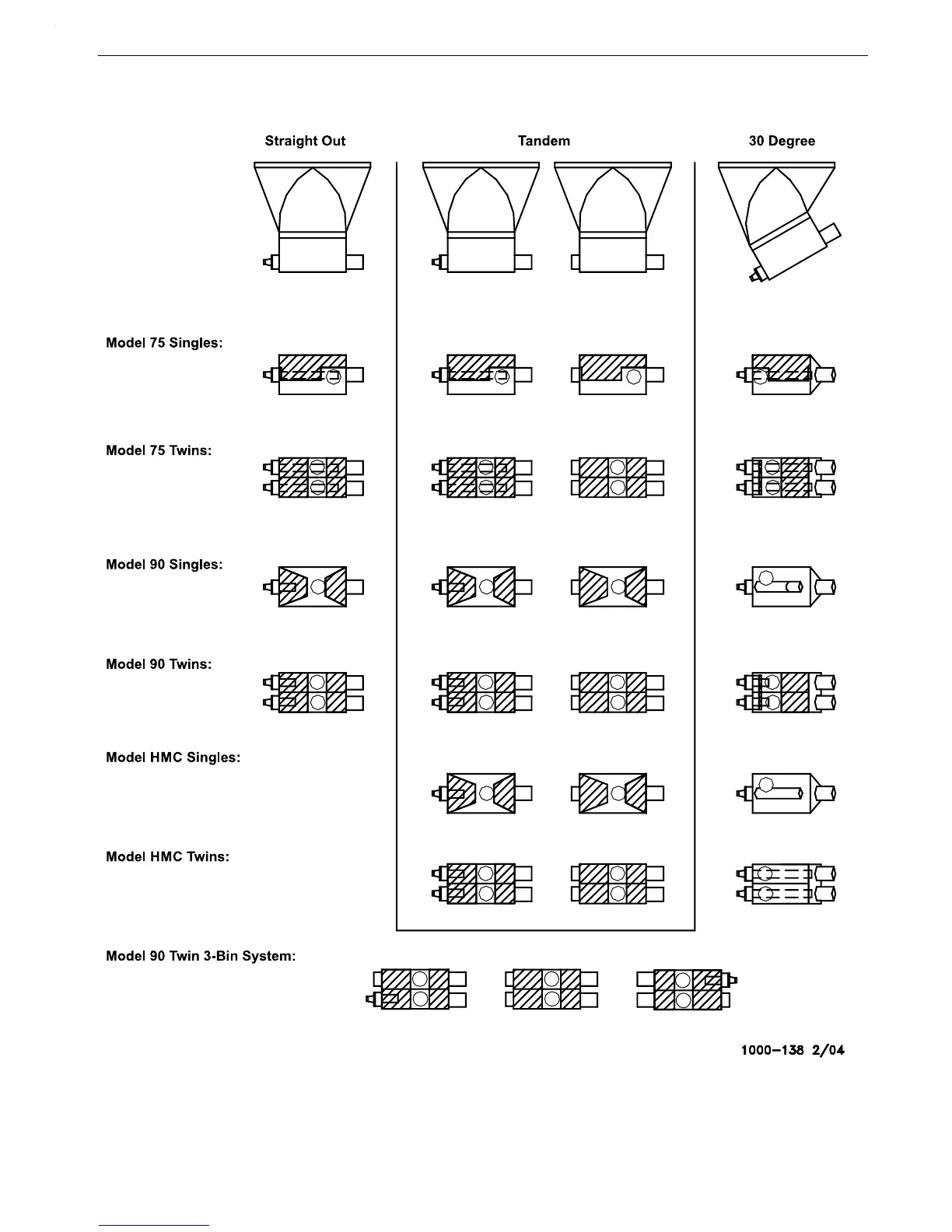

Standard FLEX-AUGER Boots and Baffle Locations
(As Shipped from Factory)
Figure 28.Straight-Through Tandem
Figure 28.Standard FLEX-AUGER Boots and Baffle Locations
