Chore-Time 55 - Parts Listing; Stainless Steel Direct Drive Control Unit (Single Phase)

Model 55,75,90, & HMC FLEX-AUGER Parts Listing
37
MA1702D

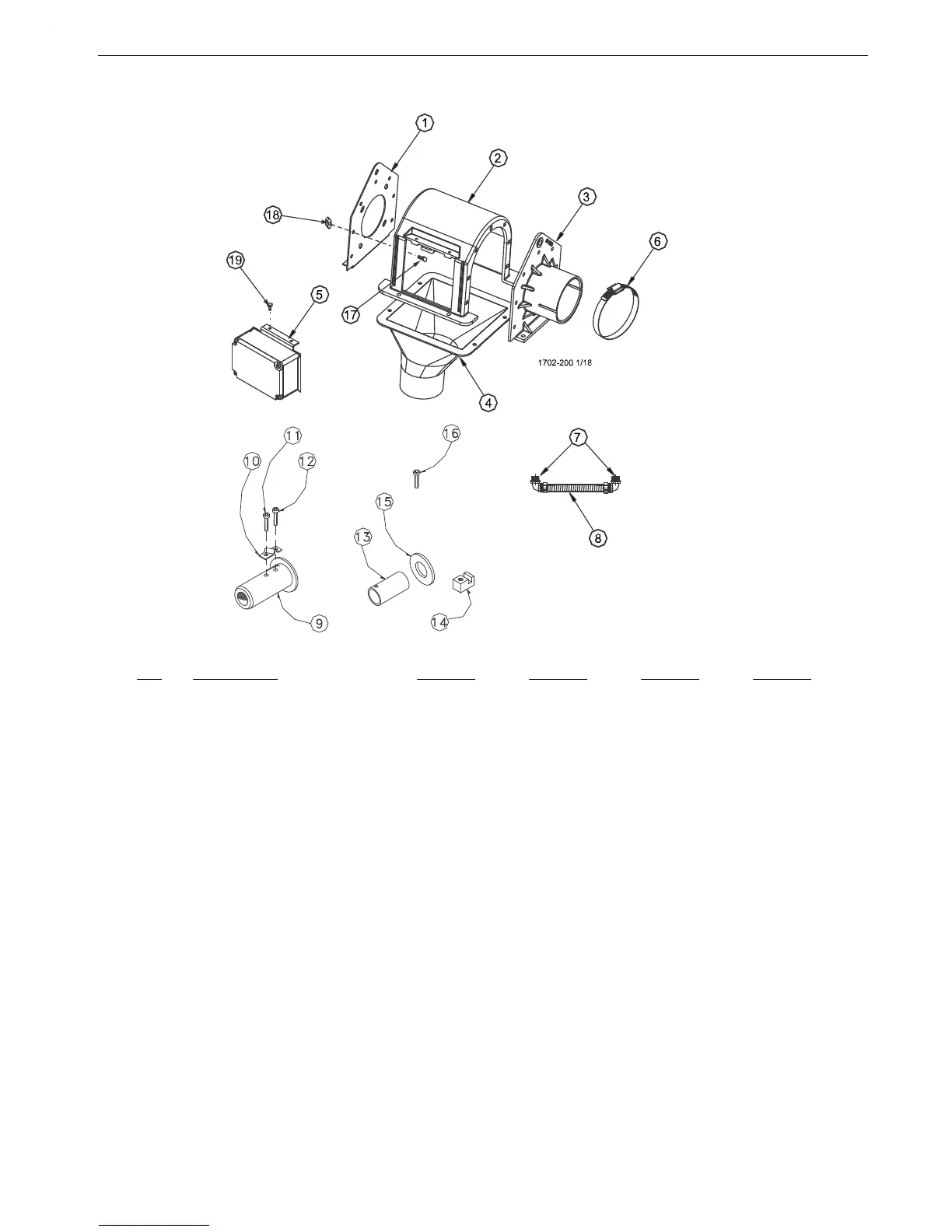

Stainless Steel Direct Drive Control Unit (Single Phase)
International Direct Drive Control Units (3 Phase)
Model 55 Model 75 Model 90 Model HMC
46800-27 46800-28 46800-30 46800-29
KEY
DESCRIPTION PART NO. PART NO. PART NO. PART NO.
1 Gearhead End Plate 43596SS 43596SS 43596SS 43596SS
2 Control Unit Body 43601 43601 43601 43601
3 Tube Anchor Plate Weldment 45924 45925 45926 45926
4 Control Unit Funnel 45943-1 45943-1 45943-2 45943-2
5 Switch & Plate Assembly 46051SS 46051SS 46051SS 46051SS
6 H.D. Adjustable Clamp 47652-1 47652-1 47652-1 47652-1
7 Water Tight Connector 23810 23810 23810 23810
8 Non-Metal Flex Conduit 26982-10 26982-10 26982-10 26982-10
9* Driver Weldment 7704 7706 7704
10* Anchor Clamp 7703 7703 7703
11* 5/16-18x1/2” Socket Hd Cap Screw 6850-3 6850-3 6850-3
12* 5/16-18x2-1/2” Socket Hd Cap Screw 6850-4 6850-4 6850-4
13* Drive Tube 2920
14* Drive Block 4642
15* Flat Washer 1484
16* 1/4-20x1-1/2” Screw 5083-8
-- Driver Assembly 46458 6862 6861 6862
17 1/4-20 Rd. Hd. Sq Shnk. Bolt (SS) 7550-6 7550-6 7550-6 7550-6
18 1/4-20 Hx Flg. Serr. Nut (SS) 46298 46298 46298 46298
19 #10-14 Twin Helix Screw (SS) 28075SS 28075SS 28075SS 28075SS
*Parts included in Driver Assembly (Part No’s 46458,6862, or 5861 respectively.
Model 55 Model 75 Model 90 Model HMC
46800-31 46800-32 46800-34 46800-33
Components - Same as Standard Direct Drive Control Units except does not include the 90
o
connectors and the flex conduit
