Installing the End Control, Boot Assembly, and Auger MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System
18
MF2495A
Installing the End Control, Boot Assembly, and Auger
The End Control Unit must be at least 10 feet [3 m] from the end of the building to allow birds access around the
end of the feeder line.
1.Assemble the End Control Unit to the Feeder Line Control Tube using a clamp/anti-roost bracket. See
Figure 29. DO NOT INSTALL THE POWER UNIT AT THIS TIME.
2.Install the Feeder Boot by sliding the straight end of the Feeder Boot into the belled end of the Feeder Tube.
Install a clamp/anti-roost bracket on the bell and tighten. The Feeder Boot must be level with the open top of
the Feeder Boot flat. Figure 30.
3.DO NOT INSTALL THE ANCHOR BEARING AND BEARING RETAINER AT THIS TIME.
Auger Installation
Note: Use extreme caution when working with the auger. The auger is under tension and may spring
causing personal injury. Wear protective clothing, gloves, and safety glasses when working with
the auger.

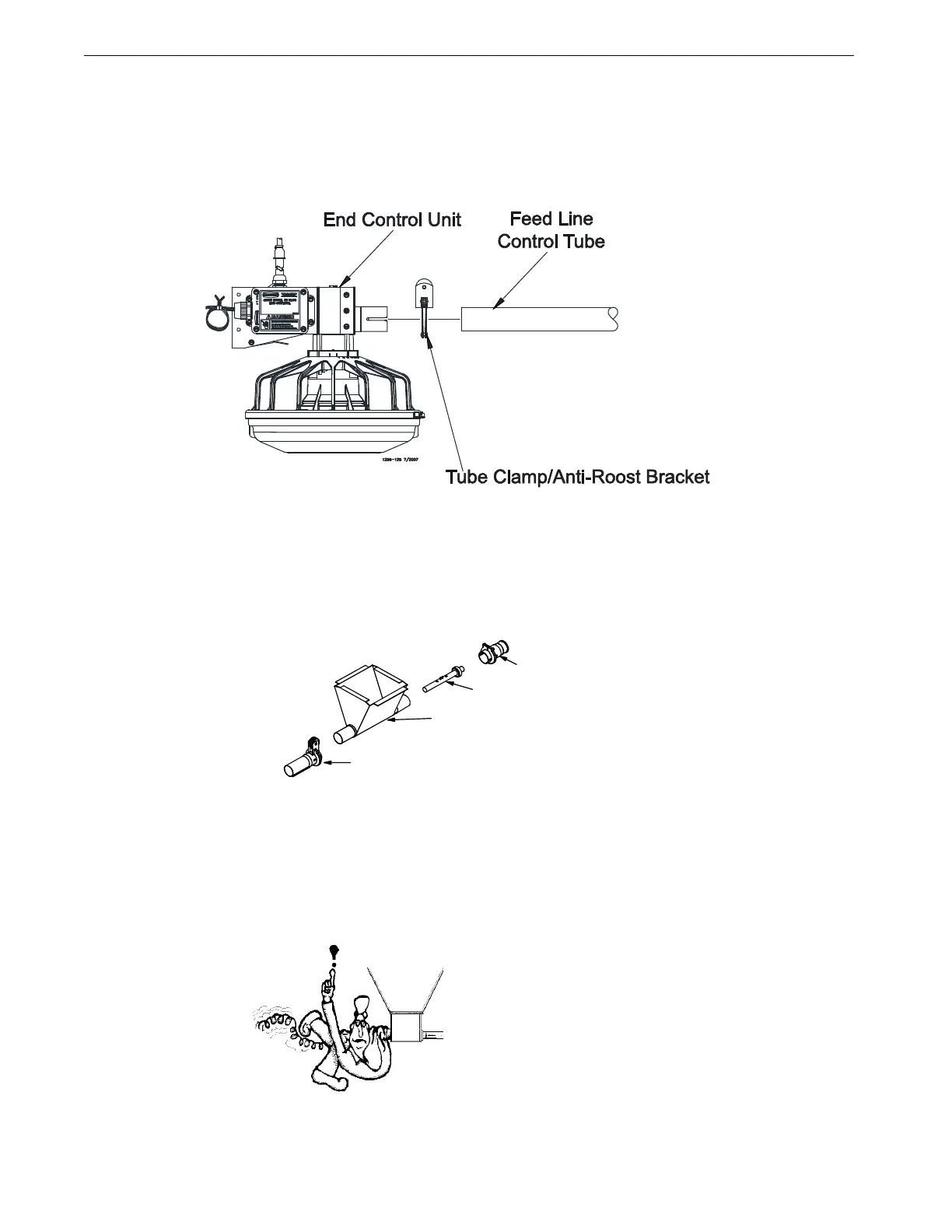

Figure 29.Connecting End Control Unit to the Feed Line Tube
1) Feeder Tube Bell End
2) Feeder Boot
3) Anchor Bearing
4) Bearing Retainer
1255-120 2/2001
Figure 30.Installing the Feeder Boot
BE CAREFUL WHEN
WORKING WITH THE
AUGER!
