MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System Parts List

MF2495A

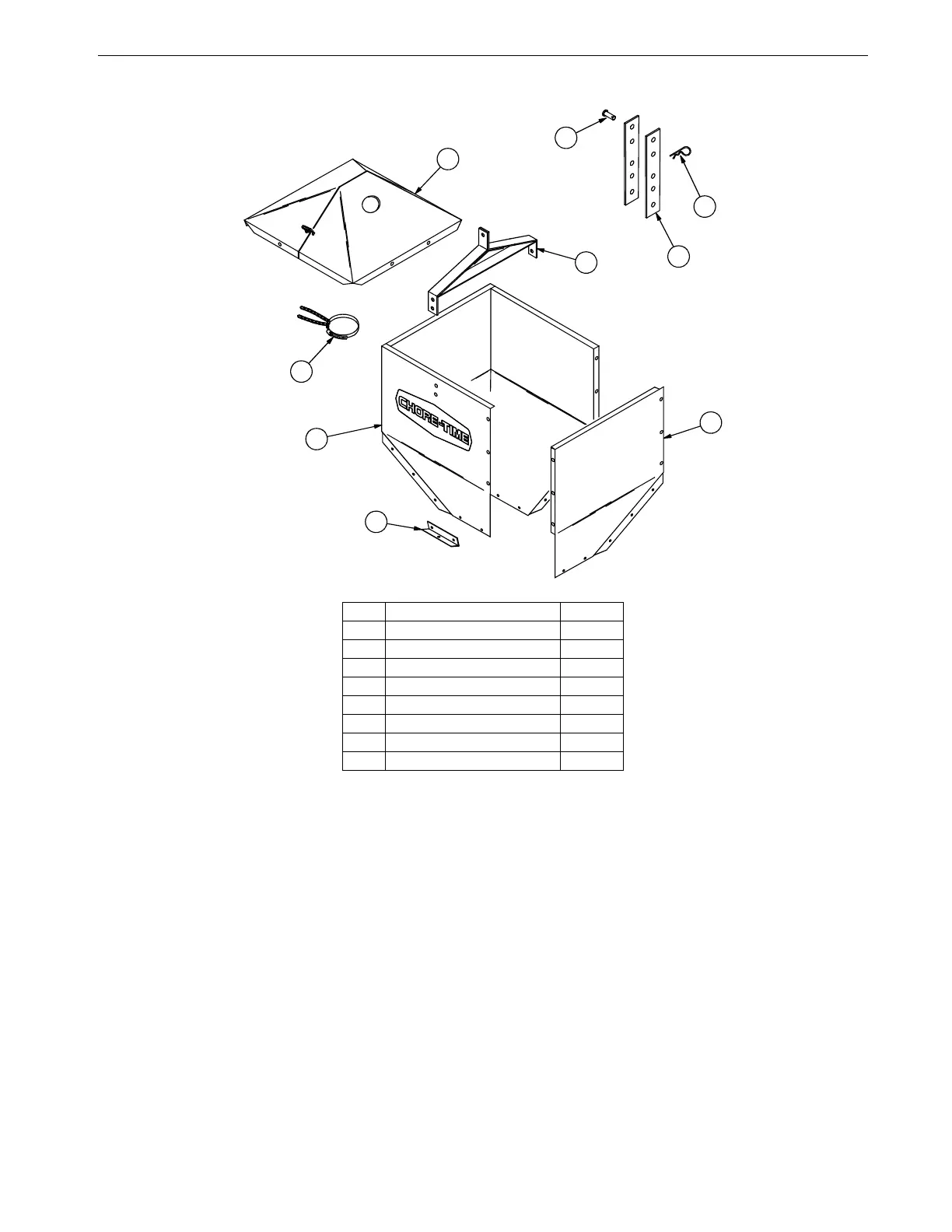

200# Hopper Components

*Hopper Cover not included. Must be ordered separately.

The 200# Hopper Assembly may be ordered under Part No. 7941. Hopper Cover must be ordered separately.

Item Description Part No.

1* Hopper Cover (optional) 28206

2 Tube Support Assembly 14367

3 Hopper Side 2680

4 Boot Hanger 2671

5 Hanger Bracket Assembly 2681

6 Adjustment Bracket 2706

7 Hair Pin 2664

8 Clevis Pin, 5/16 x 1" 2797-1

1660-02 10/2000

Chore-Time Warranty2
- Table of Contents3
- Manufacturer's Recommendations: Birds Per Pan5
About this Manual6
Safety Information6
Safety Instructions7
- Follow Safety Instructions7
- Decal Descriptions7
General7
- Support Information7
Planning the Suspension System8
General Installation Information9
Laying out the Suspension System9
Installing the Suspension System10
- Power Lift Winch Installation10
- Installing the Main Winch Cable11
- Screw Hook Installation12
- Ceiling Hook Installation13
- Drop Installation13
Hopper Assembly Procedure14
- Assembly14
- Suspend the Hopper14
Feeder Pan Assembly15
Feeder Line Assembly and Suspension15
- Feeder Pan and Tube Assembly Process15
- Assemble and Suspend the Feeder Line15
Installing the End Control, Boot Assembly, and Auger18
- Auger Installation18
Auger Installation22
- Auger Brazing25
MID-Line Control26
Anti-Roost Assembly28
Wiring31
- End Control with Electronic Sensor Internal Wiring31
- Electronic Sensor Control Wiring Diagram31
- MID Control with Electronic Sensor Internal Wiring31
- Mechanical Switch Single Phase(Ø) Wiring Diagram32
- Mechanical Switch Single Phase(Ø) Wiring Diagram with Motor Starter32
- Mechanical Switch Three Phase(Ø) Wiring Diagram: 220 V33
- Mechanical Switch Three Phase(Ø) Wiring Diagram: 380/415 V33
- Electronic Sensor Three Phase (Ø) Wiring34
Troubleshooting35
Maintenance36
- Floor Feeding System Maintenance36
- Gear Head Maintenance36
- Mechanical Switch Adjustment Procedure for Control Units37
- Feeder Line38
- Power Lift Winch Maintenance38
Management39
- Initial Start-Up of the Feeding System39
- General Operation of the MODEL C2® PLUS and MODEL G™ PLUS Feeders40
- End Control and MID Line Control Pans41
- Controlling the Feeders (Optional Equipment)41
- Electro-Guard Operation41
Parts List42
- 150# Plastic Hopper42
- 200# Hopper Components43
- 100 # Hopper Components44
- Hopper Mount Bracket (Optional)45
- Single Boot Components Part No. 682245
- Twin Boot Components Part No. 682446
- Feeder Line Components47
  - C2 PLUS Standard with Two Piece Top48
  - C2 PLUS Standard with One Piece Top48
  - MODEL C2 PLUS Shallow with Two Piece Top49
  - C2 PLUS Shallow with One Piece Top49
- MODEL C2 PLUS and G PLUS with Extended Fins50
- MODEL G PLUS Standard with Two Piece Top51
- MODEL G PLUS Standard with One Piece Top51
- MODEL G PLUS Shallow with Two Piece Top52
- Power Unit Assemblies53
- Power Unit Assembly Part Numbers53
- Mechanical End Control54
- Mechanical MID Line Control56
- Electronic Sensor End Control (56706)58
- Electronic Sensor MID Line Control (56934)60
- MODEL G PLUS Pan Extension (Optional)61
- 2883 Power Winch61
- Miscellaneous Suspension Components62
