Chore-Time C2 PLUS - Twin Boot Components Parts

To Next Page

To Previous Page

Parts List MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System

MF2495A

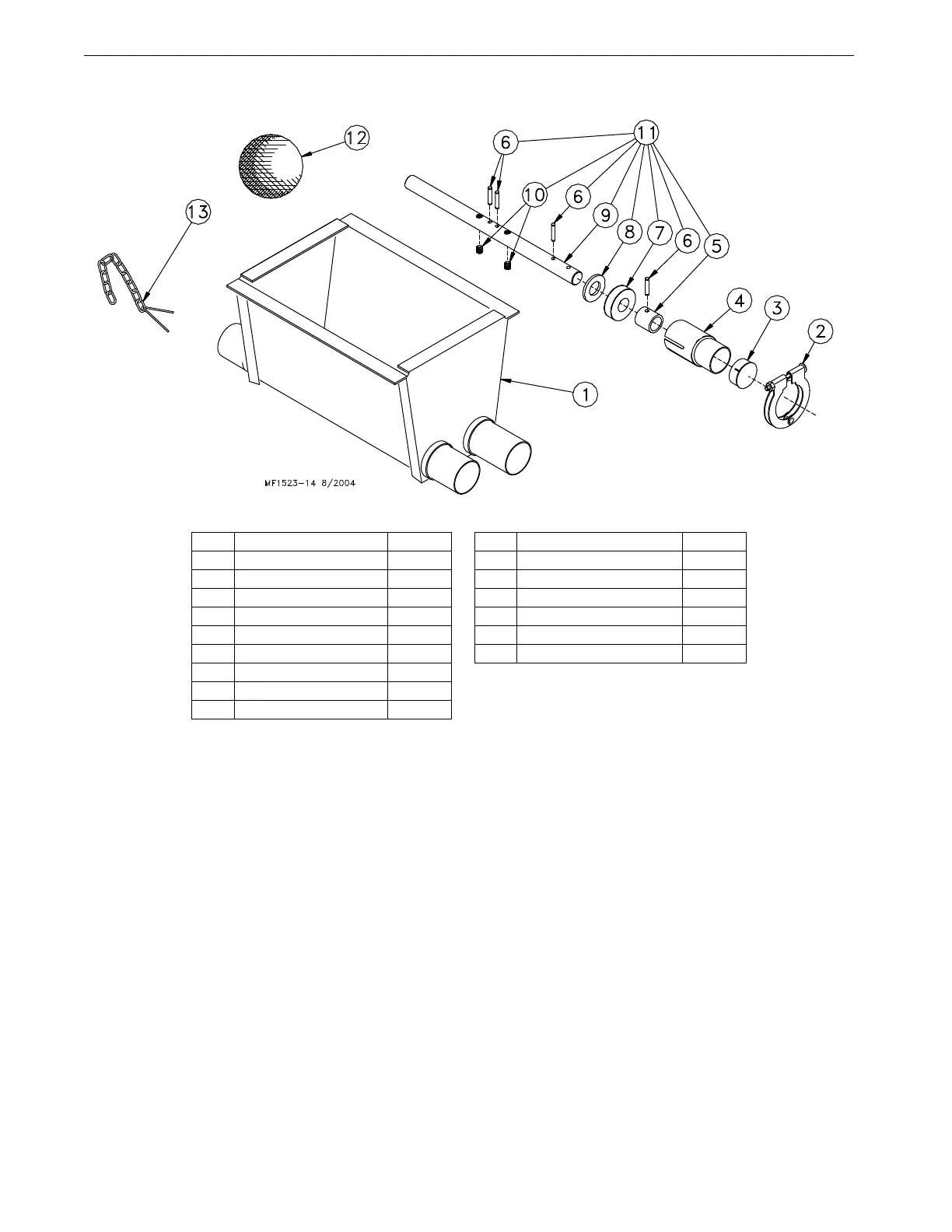

Twin Boot Components Part No. 6824

*The Jumper Wire Kit includes an insulated piece of High-Voltage Wire (part no. 28994) and (2) cable clamps.

Item Description Part No. Item Description Part No.

1 Boot Weldment 3932 10 Setscrew 47867

2 Tube Clamp 24063 11 Anchor and Bearing Ass’y 39372

3 Cap 29373 12 Cannonball 3531

4 Outlet Tube 4556 13 Latch Pin Ass’y 2683

5 Sleeve 5648 --* Jumper Wire Kit 5960

6 3/16 x 1" Pin 2960-1 -- Danger Decal 2527-9

7 Bearing 2689

8 Washer 2955-14

9 Anchor 38540
