Chore-Time C2 PLUS User Manual

Wiring MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System
32
MF2495A

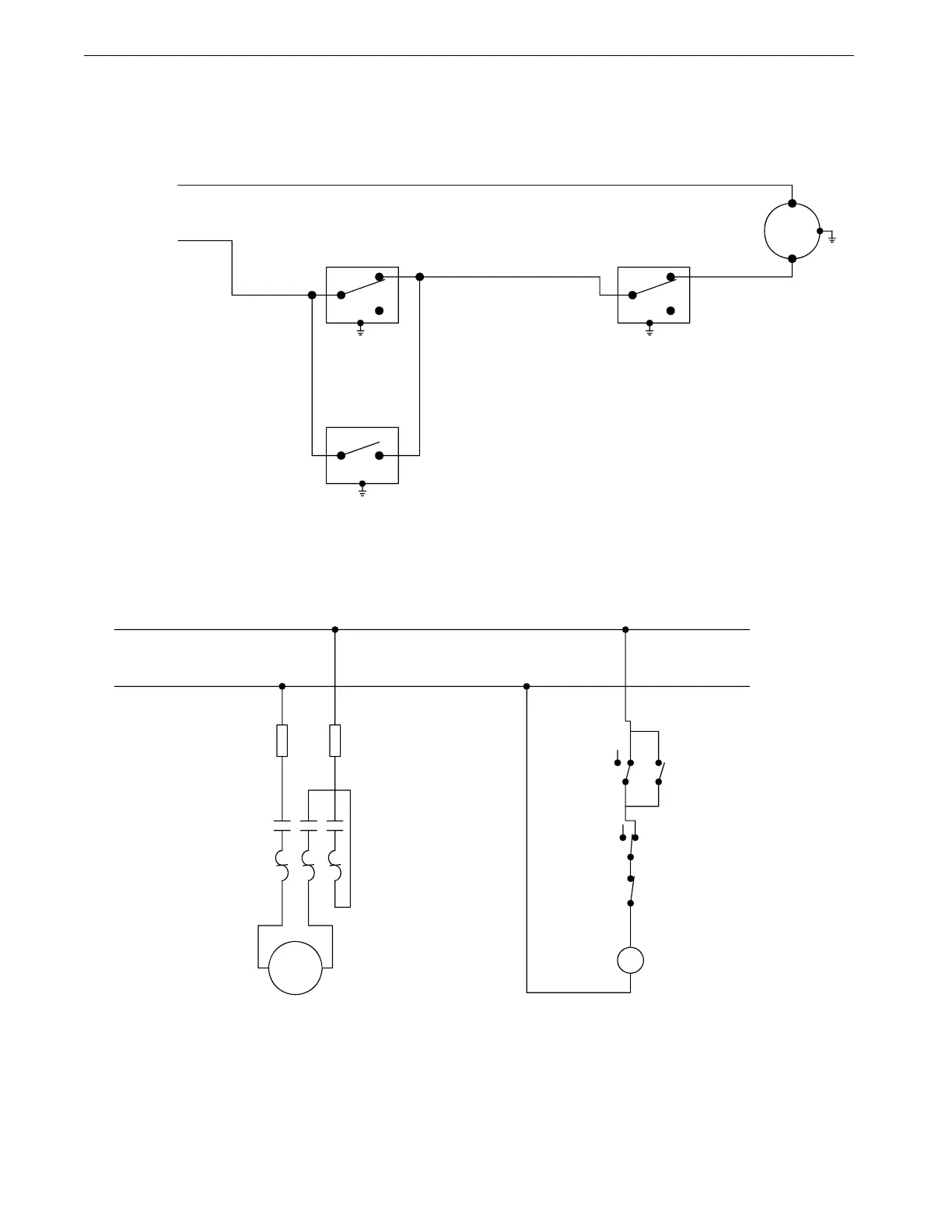

Mechanical Switch Single Phase(Ø)Wiring Diagram
Mechanical Switch Single Phase(Ø)Wiring Diagram with Motor Starter
M
1255-107 10/2000
END CONTROL UNIT
L1
L2
SINGLE PHASE WIRING DIAGRAM
FROM DISCONNECT OR
CONTROL DISCONNECT
220/230 VOLTS 50/60 HZ
FEEDER LINE MOTOR
220/230 VOLTS 50/60 HZ
SINGLE PHASE
TOGGLE SWITCH
SPST 15 AMP
(NOT SUPPLIED)
MID LINE
CONTROL
UNIT
95
END CONTROL
96
1255-108 10/2000
K1
L2
T2
L3
T3
SINGLE PHASE
C1
K1
CONTACTOR
L1
T1
FROM DISCONNECT OR
CONTROL DISCONNECT
220/230 VOLTS 50/60 HZ
TO ADDITIONAL
FEEDER LINES
MID LINE
CONTROL UNIT
CONTROL BYPASS SWITCH
(NOT SUPPLIED)
SET OF FUSES
SHORT CIRCUIT
PROTECTION
(NOT SUPPLIED)
CURRENT SENSOR
(AVAILABLE)
FEEDER LINE MOTOR
220/230 VOLTS 50/60 HZ
SINGLE PHASE
M1
C1
