MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System Auger Installation
MF2495A
25
12.Insert the Anchor Assembly into the auger until it touches the washer at the back of the anchor. Tighten the
setscrews in the center of the anchor until they touch the auger, then tighten a maximum of 1/2 turn. See
Figure 43.
DO NOT OVERTIGHTEN THE SET SCREWS.
13.Carefully remove the locking pliers while holding onto the Anchor and Bearing Assembly and auger
securely.
Slowly ease the auger back into the tube. Use caution. If the auger is allowed to spring back, the bearing race
may crack.
Install the Bearing Retainer and fasten with a tube clamp. Keep the Bearing Retainer flush with the end of the
anchor for safety.
14.Place the cannonball in the boot.
Auger Brazing
The auger should be brazed if it is necessary to splice or lengthen it. A bronze, flux coated rod is recommended.
The ends of the auger should butt against each other, DO NOT THREAD INSIDE EACH OTHER. See Figure
44. The joint should be well filled with no sharp edges or rough corners to wear against the tube. To align the auger
for brazing, lay it in angle or channel iron and clamp it firmly in place. Use low heat. Allow the joint to air cool;
rapid cooling will cause the auger to become brittle.
Figure 44. Auger Brazing
KEEP HANDS AWAY FROM
PINCH POINTS WHEN
CAUTION

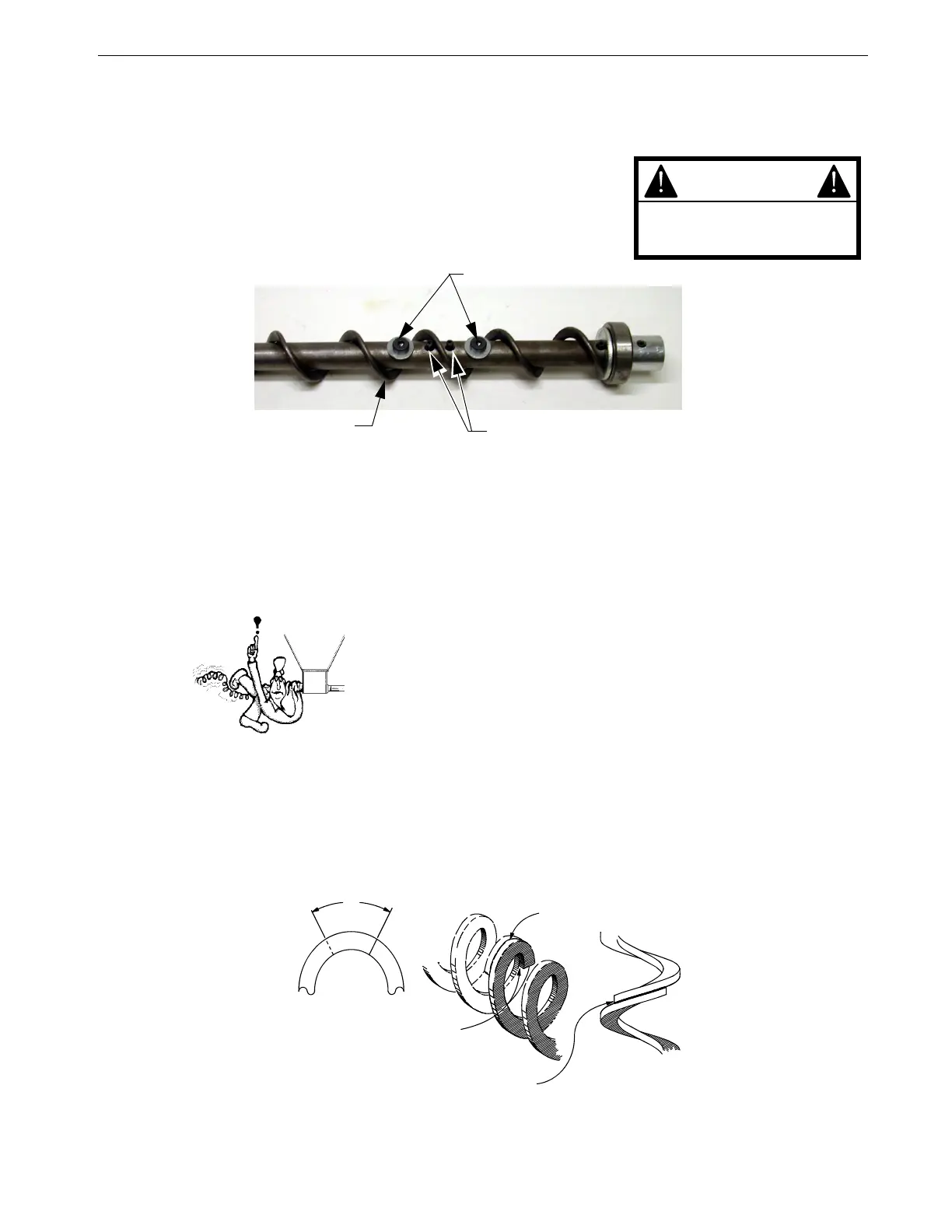

Figure 43. Auger and Anchor Bearing Connection
Set screws
Auger
Alignment pins
BE CAREFUL WHEN WORKING
WITH THE AUGER!
1255-97 9/2000
1) Braze here
1) Braze here
2) Lap the auger ends
approximately 1" [25 mm]
3) Butt the auger ends together
DO NOT thread the auger together
