MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System Parts List

MF2495A

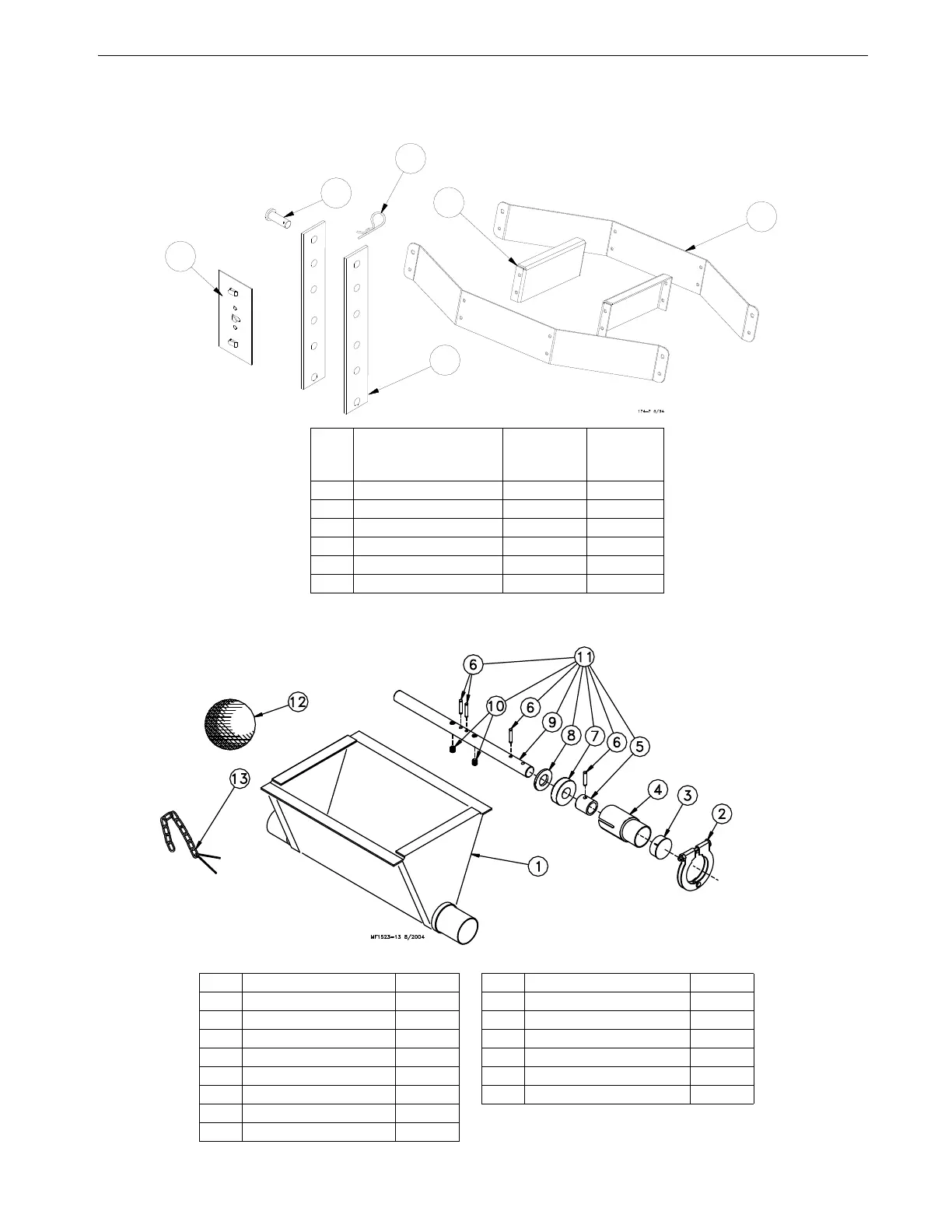

Hopper Mount Bracket (Optional)

Part Number 49358 - Hopper Suspension Kit

Single Boot Components Part No. 6822

Item Description Part No.

Single Boot

Kit

Part No.

Twin Boot

Kit

1 Clevis Pin, 5/16'' x 1'' 2797-1 2797-1

2 Adjustment Bracket 2706 2706

3 Hair Pin 2664 2664

4 Suspension Brace 48680 48680

5 Suspension Angle 48679 48679

6 Cable Guide 34573 34573

Item Description Part No. Item Description Part No.

1 Boot Weldment 3760 9 Anchor 38540

2 Tube Clamp 24063 10 Setscrew 47867

3 Cap 29373 11 Anchor and Bearing Ass’y 39372

4 Outlet Tube 4556 12 Cannonball 3531

5 Sleeve 5648 13 Latch Pin Ass’y 2683

6 3/16 x 1" Pin 2960-1 -- Danger Decal 2527-9

7 Bearing 2689

8 Washer 2955-14
