MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System General Installation Information
MF2495A
9
Please read the installation instructions in this manual prior to beginning the installation. This manual provides
the necessary information on the installation, operation, and maintenance of the Chore-Time feeding equipment
you have purchased.
The suspension, hopper assembly, feeder line installation, and anti-roost installation is the same for each system,
except where noted otherwise. Please pay particularly close attention to insure proper assembly and installation
of the equipment.
The MODEL C2
®
PLUS and G™ PLUS Control Units use a 348 RPM Gearhead, delivering approximately
17 lbs [7.7 kg] per minute. This rating is based on feed with a density of 40 lbs per cubic foot [640 kg per cubic
meter].
Single phase 60 Hz and single and three phase 50 Hz Power Units are available for the MODEL C2 PLUS and G
PLUS Feeders.
Systems up to 300' [91 m] require 1/3 HP. Power Units. Systems over 300' [91 m] require 1/2 HP. Power Units.
1.Select the Suspension type.
A. For systems over 350' [107 m]
General Installation Information
Laying out the Suspension System

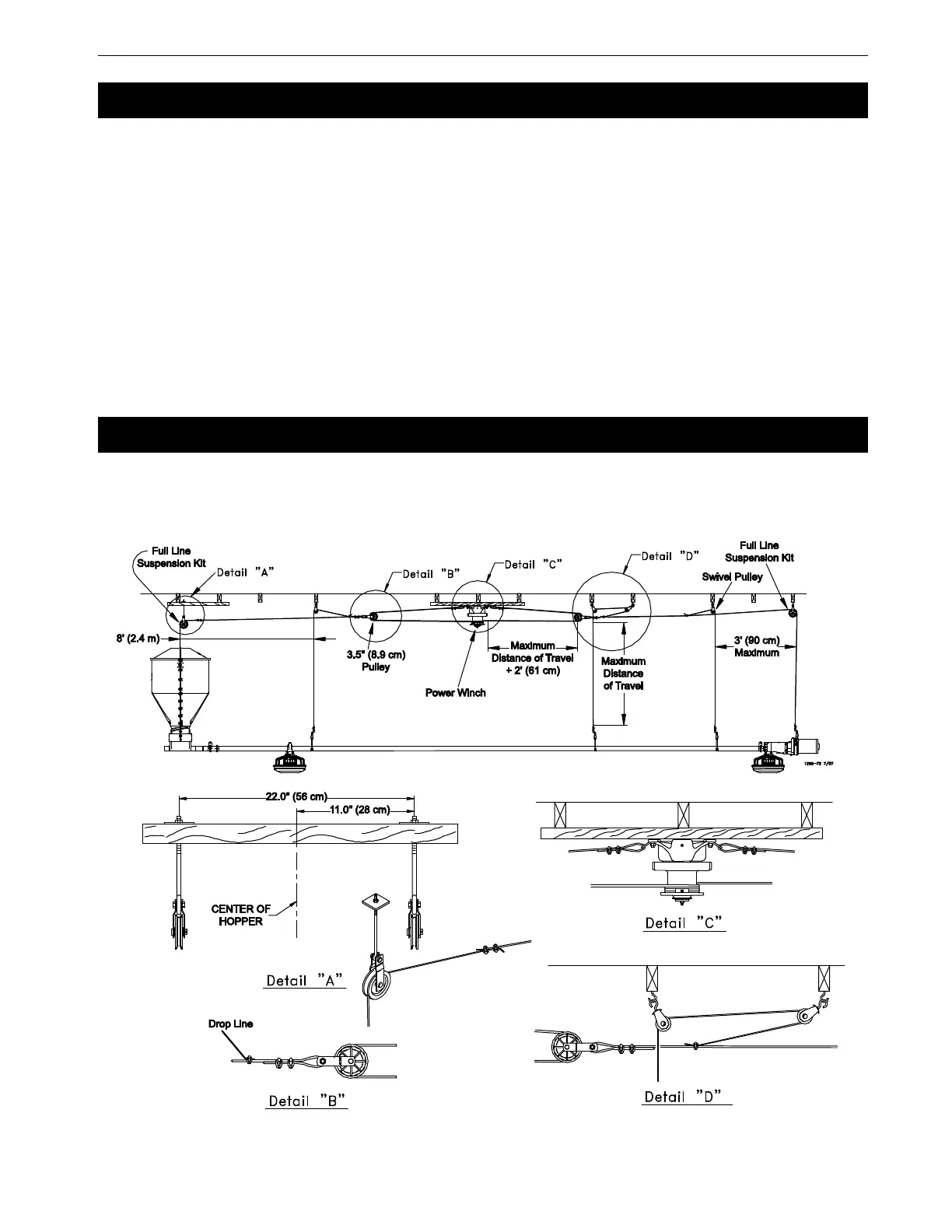

Figure 3. Suspension for systems over 350’ [107 m]
To Next Page
