Chore-Time C2 PLUS User Manual

MODEL C2® PLUS & MODEL G™ PLUS with Proximity Sensor Feeding System Parts List
MF2495A
61
MODEL G PLUS Pan Extension (Optional)

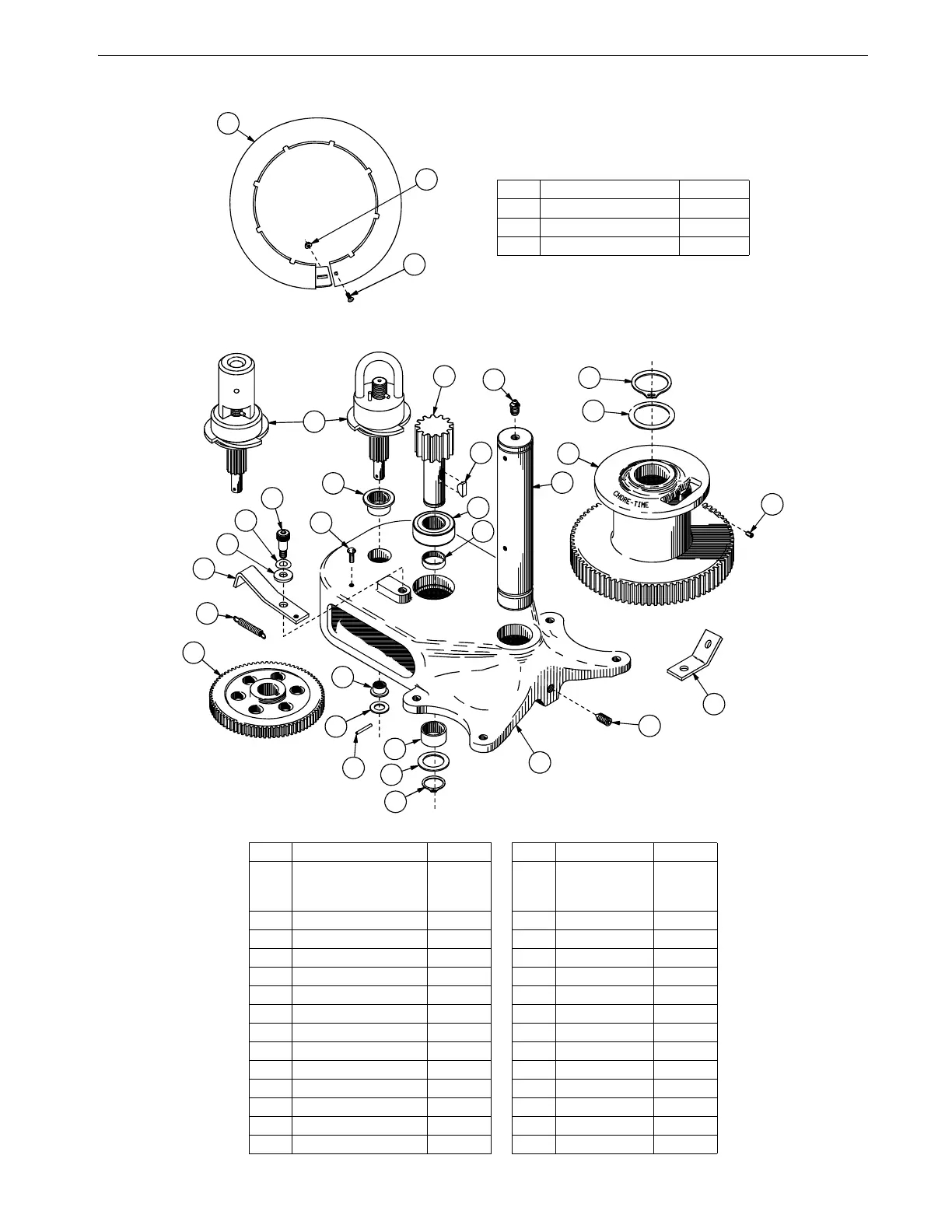

2883 Power Winch
Item Description Part No. Item Description Part No.
1 Input Shaft Assembly
Manual
Electric
42665
42666
15 Drive Pinion 2962
2 Flange Bushing 2967-2 16 Woodruff Key 2959
3 Drive Stud 4128-1 17 1" Bearing 4937
4 Shoulder Bolt 4022-2 18 Spacer 4936
5 Pawl 6672 19 Retaining Ring 3556
6 5/16'' Flat Washer 2255-44 20 Washer 2955-2
7 Spring 1543 21 Winch Drum 3723
8 Spring Washer 4023 22 Drum Shaft 3637
9 Intermediate Gear 2890 23 Setscrew 603
10 Flange Bushing 3252 24 Winch Frame 3719
11 Spirol Pin 2960-3 25 Setscrew 3727
12 Bushing 2967-4 26 Cable Hook 2985
13 Washer 2955-1 27 Grease Zerk 24499
14 Retaining Ring 2958-1 28 Washer 2499
1255-54 4/1998
1
2
3
Item Description Part No.
1 Pan Extension 29510
2 Lock Nut 24208
3 1/4” Carriage Bolt 22692
1660-25 2/2001
3
2
4
8
6
5
7
9
10
28
11
14
13
12
24
25
26
23
19
20
21
27
15
16
17
18
22
1
