Installation for Brood-Grow Cage Systems Only ULTRAFLO
®
Cage Feeding Systems for Brood Grow & Layer Installations
12
MC656P
Bottom Tier of All Brood-Grow Systems (with Step Rail Brackets)
D.B.S. & Curtain-Backed Brood-Grow Systems
(no Step Rail Brackets)
2 + 2 Brood-Grow & Stacked Brood-Grow (no Step Rail Brackets)
Key Description Part No. Location
1 Wireform Hanger 27107 Install at every partition on
tiers with Feed Trough
Supports.
2 Hold Down Hanger 37111 Install at every partition with
Feed Trough Support.
3 Feed Trough Support 15568 See Trough Support
Installation on page 10.
1
2
3
MC656-68 3/00

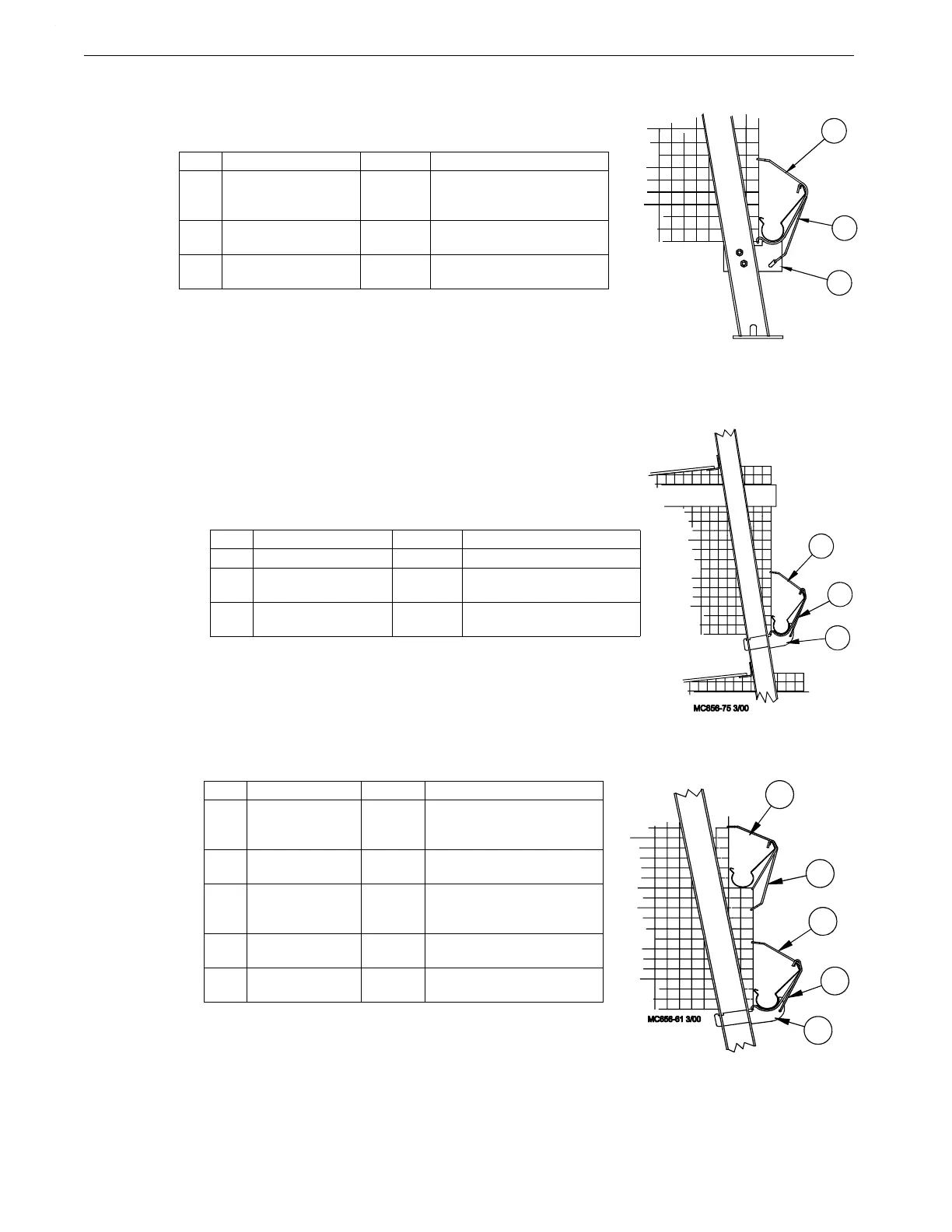

Figure 9.Hanger Installation Diagram for Brood-Grow with Step Rail Brackets
(side view)
Key Description part No. Location
1 Wireform 27107 Install at every partition.
2 Feed Trough Support 16204 See Trough Support
Installation on page 10.
3 Trough Wire 39486 See Trough Support
Installation on page 10.
1
3
2
Figure 10.Hanger Installation Diagram for D.B.S. & Curtain-Backed Brood-Grow
(side view)
1
2
3
5
4
Key Description Part No. Location
1 Upper Levels
Hanger
14729 Install at every partition on
all tiers without Feed Trough
Supports.
2 Hold Down
Hanger
37111 Install at every other Cage
Partition.
3 Wireform Hanger 27107 Install at every partition on
tiers with Feed Trough
Supports.
4 Feed Trough
Support
16204 See “Trough Installation”
on page 10.
5 Trough Wire 39486 See “Trough Installation”
on page 10..
Figure 11.Hanger Installation Diagram for 2 + 2 Brood-Grow (side view)
