Chore-Time ULTRAFLO Series - Wiring Diagrams; 1-Phase Feeder Line Motor Wiring

ULTRAFLO
®
Cage Feeding Systems for Brood Grow & Layer Installations Installation for Layer Cage Systems Only
29
MC656P
Control Panel Installation
Select a location for the ULTRAFLO
®
Control Panel that will be easily accessible for wiring and
operating the controls. Place the Control where the birds cannot get to it and away from wet or
excessively dusty conditions.
Install the Control Panel and wire the system according to the instructions packed with the
ULTRAFLO
®
Fill System Manual (MC1191) or the Dead End Fill System Manual (MC1190).

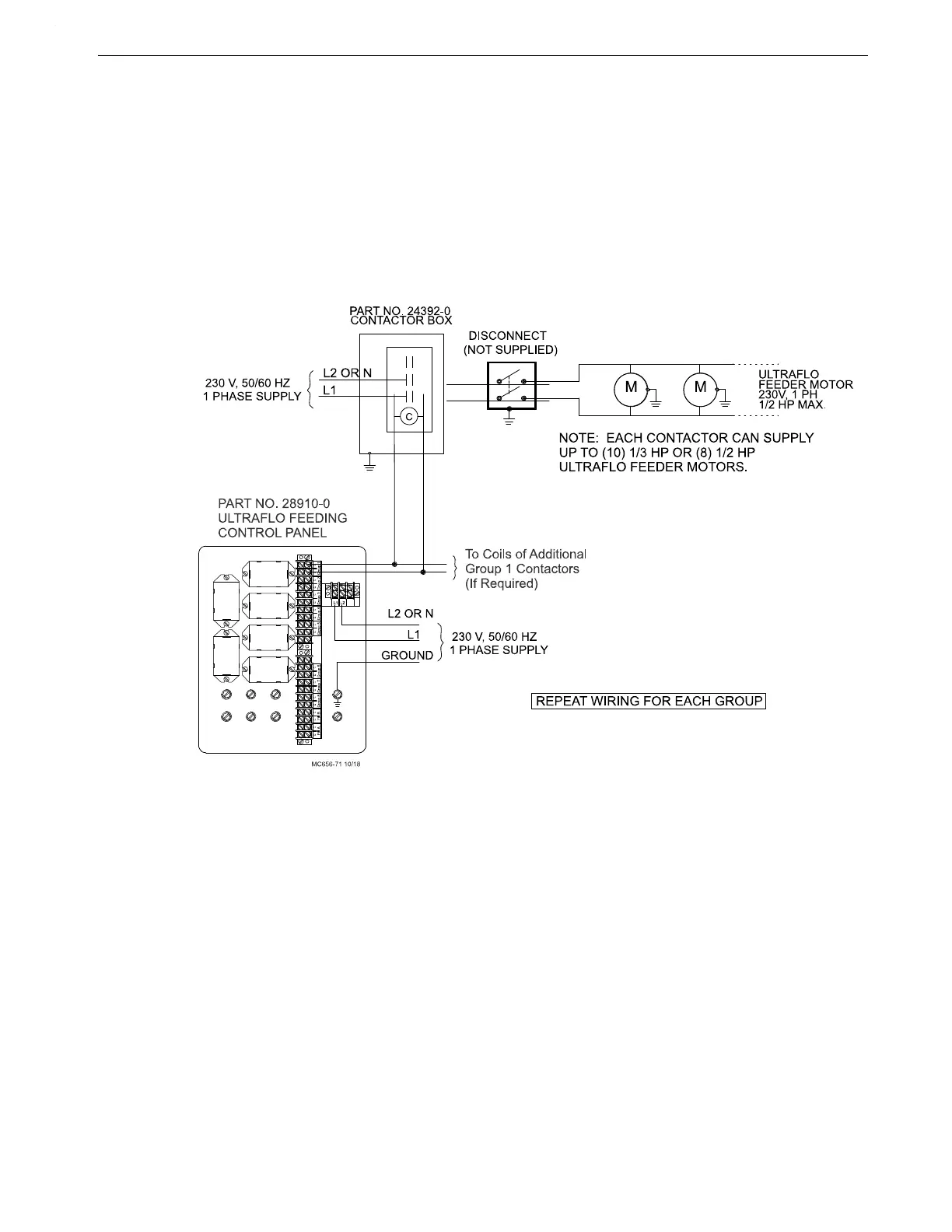

Wiring Diagrams for ULTRAFLO
®
Feeder Line Motors
1-Phase, without Motor Starters
