Trough Installation
Trough Hangers
SSS & ST-2 Cage Systems ONLY: Trough Hangers should be hooked on the cages every 4' (1.2
m), beginning at the first “A” frame (See Figure 19.). The last Trough Hanger should be placed
at the end of the cage row, even if the distance from the previous hanger is not 4' (1.2 m).
DURA-CAGE
TM
, DURA-TRIM
TM
, DURA
TM
-STEP, DURA
TM
II, & DURAMID
TM
Cage
Systems ONLY: Install the appropriate style of Hanger in the Cage Floor Supports as shown in
(See Figure 20.) A Trough Hanger should be installed on each side of the Power Units.
Note: At the Power Unit locations, the Hangers for the 15" & 16" cages support the Trough at the
End Cap. The Hangers (with extruded lip) support the Trough several inches from the End Cap.
MC656-41 8/95
1
2
3
4
5
6
Key Description
1 Partition Wire
2 Upper Line Wire
3 Middle Line Wire
4 Litter Shield
5Lower Line Wire
6 Trough Hanger

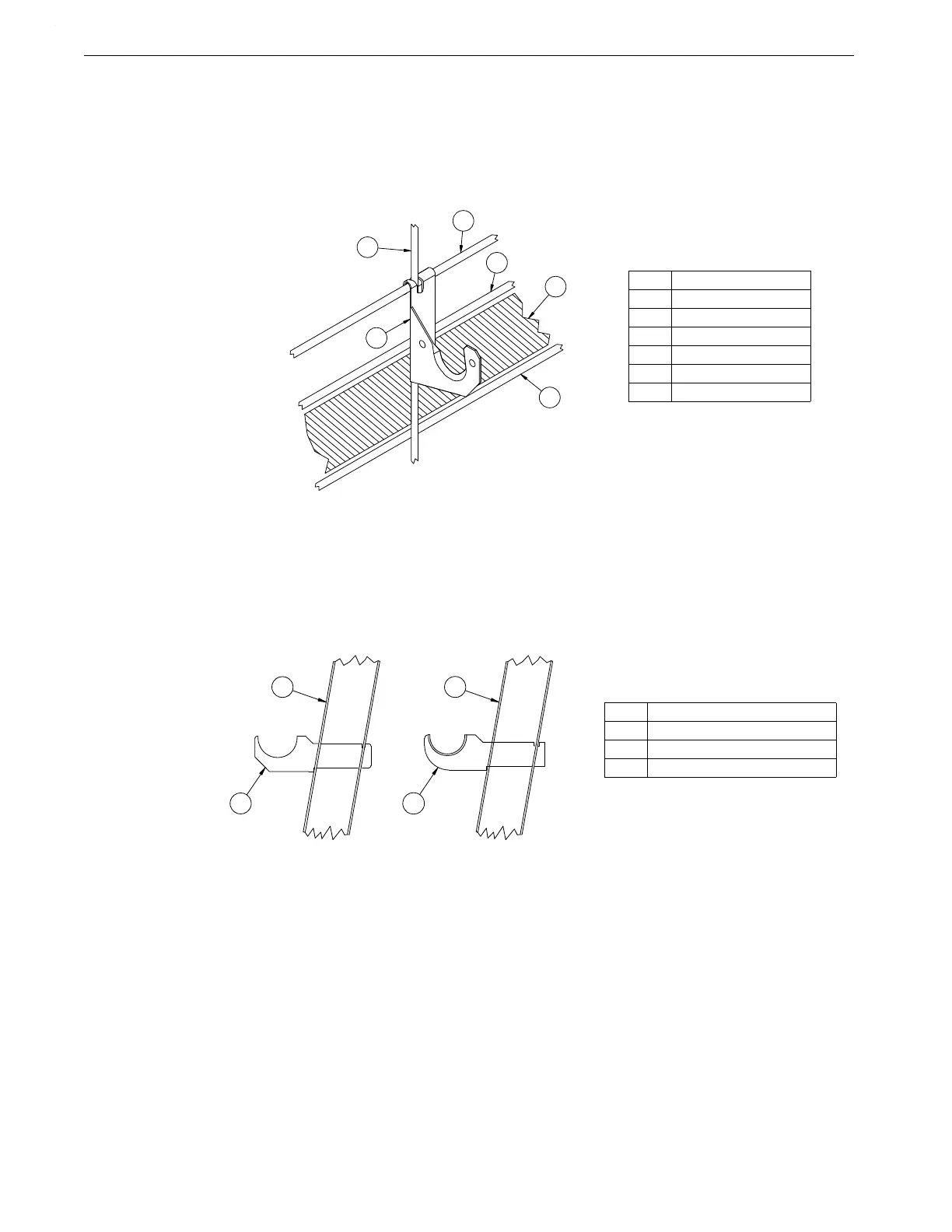

Figure 19.Trough Hanger Installation for SSE & ST-2 Cage Systems only
MC656-24 10/95
1
23
1
Key Description
1Leg
2 Hanger @ Motor Stand
3 Hanger — for all Cages
Figure 20.Trough Hanger Installation for DURA
TM
Series Cage Systems only (side view).
