ULTRAFLO
®
Cage Feeding Systems for Brood Grow & Layer Installations Installation for Layer Cage Systems Only
23
MC656P
Power Unit Installation
The installation procedures for installing the Power Units are the same for all the cages systems
covered in this manual.
See Figures 1 Through Figure 4. on page 9 for the proper Power Unit location(s) for Stacked and
Curtain-backed Brood-Grow Cage Systems.
See Figures 14 Through Figure 17. on page 15 for the proper Power Unit locations for ST-2, SSS,
and Dura
TM
Cage Systems.

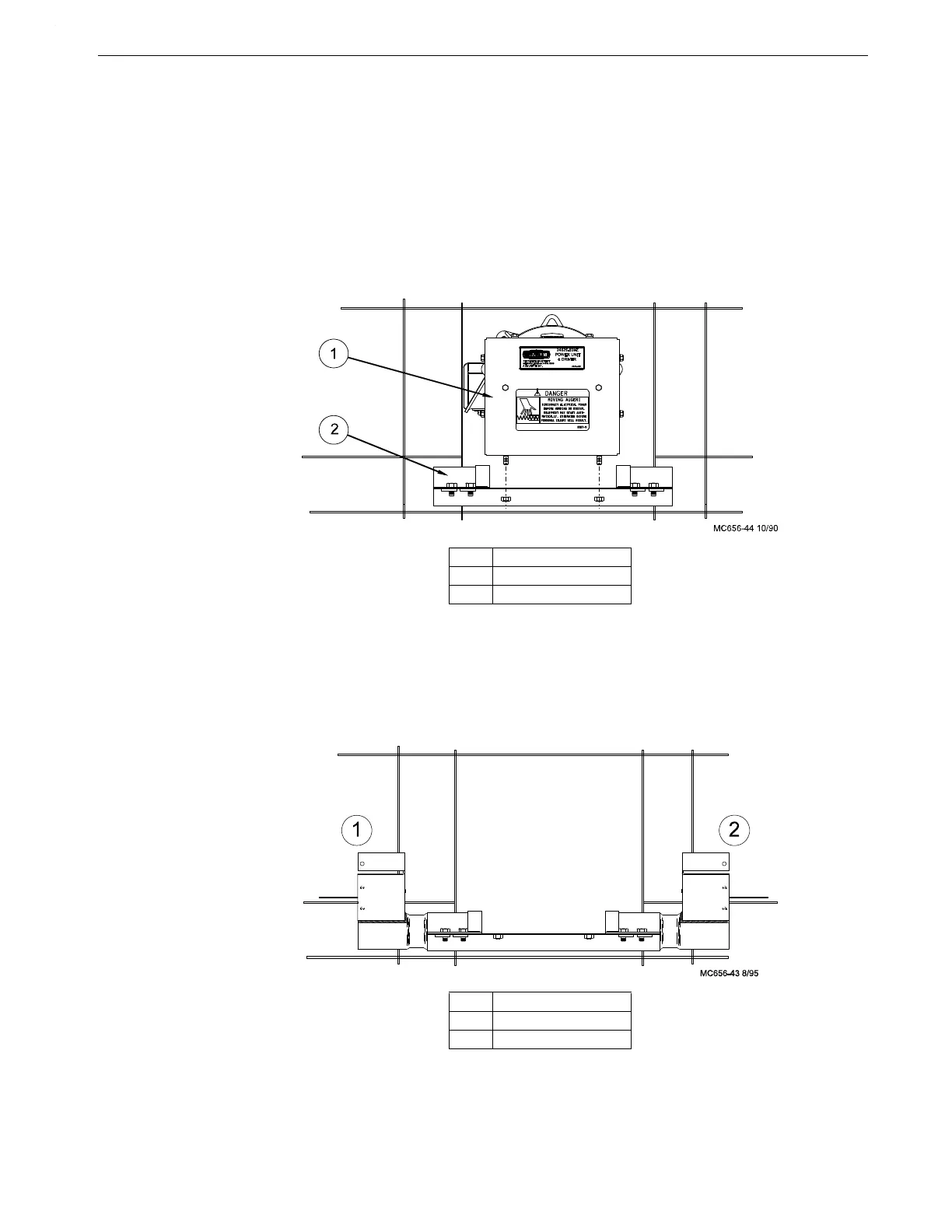

1.Remove the Power Unit from the Drive Unit Base as shown in Figure 31
2.Slide an End Cap into each end of the Drive Unit Base. The End Caps are left and right handed
so make sure that they are installed correctly (See Figure 32.).
Key Description
1 Power Unit
2 Drive Unit Base
Figure 31.Power Unit Installation (front view)
Key Description
1 Right Hand End Cap
2 Left Hand End Cap
Figure 32.Power Unit / End Cap Installation (front view)
