ULTRAFLO
®
Cage Feeding Systems for Brood Grow & Layer Installations Installation for Layer Cage Systems Only
17
MC656P
Trough
Note: It is very important that the Trough installation be started correctly.
When properly installed, the trough joint will be approximately 8" (20 cm) to the right of
the Cage Support—This dimension should not exceed 12" on Trough Systems. Refer to
Figure 8 when determining trough starting locations, Power Unit-to-Trough connections,
etc.
Always work from left to right when installing trough.
On All cage systems with swing down doors, install the cage doors prior to installing the trough.
The ULTRAFLO
®
Trough is available in 8' (2.4 m) or 10' (3 m) sections (depending on your
cage system). Longer pieces of trough, referred to as Starter Trough (9' or 11'), are sent with
each feeder line (See Figure 21.)
1.Begin at left end of the Cage Row. Install a starter trough to extend 4" (100 mm) past the end
of the cage row and 8" (20 cm) past the Cage Stand (See Figure 22.)
.
2.Attach an End Cap to the Starter Trough Section with self-drilling screws. Begin
w/self tapper at trough bulb and work upward. NOTE: Never lay trough in egg tray. (See
Figure 22.)
3.Position the End Cap so that it sticks out past the end of the Cage Row 4" (100 mm). See
Figure 21 and Figure 22.
Key Description
1 8" (20 cm)
2 Starter Trough
3 4" (100 mm)
4Start Here
5Cage Row End
6 Cage Floor Stand

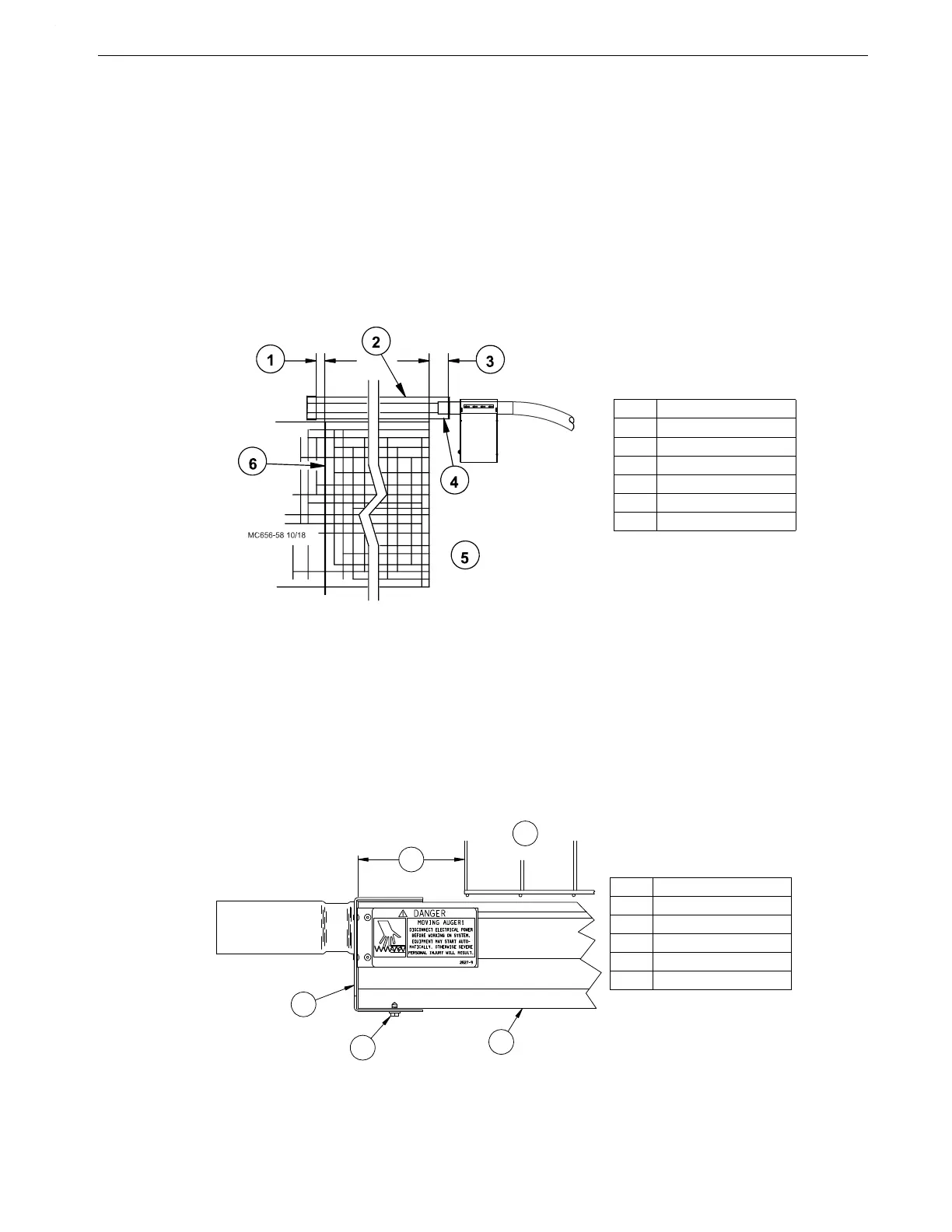

Figure 21.Starter Trough Location Diagram (top view).
MC656-19 8/95
1
4
3
5
2
Key Description
1 4" (100 mm)
2 Cages
3 Trough
4End Cap
5 Self-Drilling Screw
Figure 22.End Cap Installation (top view).
