Chore-Time ULTRAFLO Series User Manual

ULTRAFLO
®
Cage Feeding Systems for Brood Grow & Layer Installations Installation for Layer Cage Systems Only
19
MC656P
Retainer Wire Installation (for SSS & ST-2 Only)
Install the Retainer Wire every 4' (1.2 m), beginning one partition beyond the first Floor Support,
as shown in Figure 25.
Trough Clip and Wire Installation (for DURA
TM
Systems Only)
After the Trough has been installed and correctly positioned on the Trough Hanger, install the
Trough Clips as shown in Figure 26. Trough Clips should be located at every other partition,
beginning one partition from the Cage Floor Support and 2" from partition. Crimp the Trough Clips
securely.
Note: Trough Clips are not required on 24" (610 mm) cages and DURA-TRIM
TM
DBS
cages, MANURE BELT cages and VERTICAL DROPPING BOARD SCRAPER CAGES.
MC656-57 8/95
1
3
2
ire
Key Description
1 Litter Shield
2 Layer Trough
3 Retainer Wire

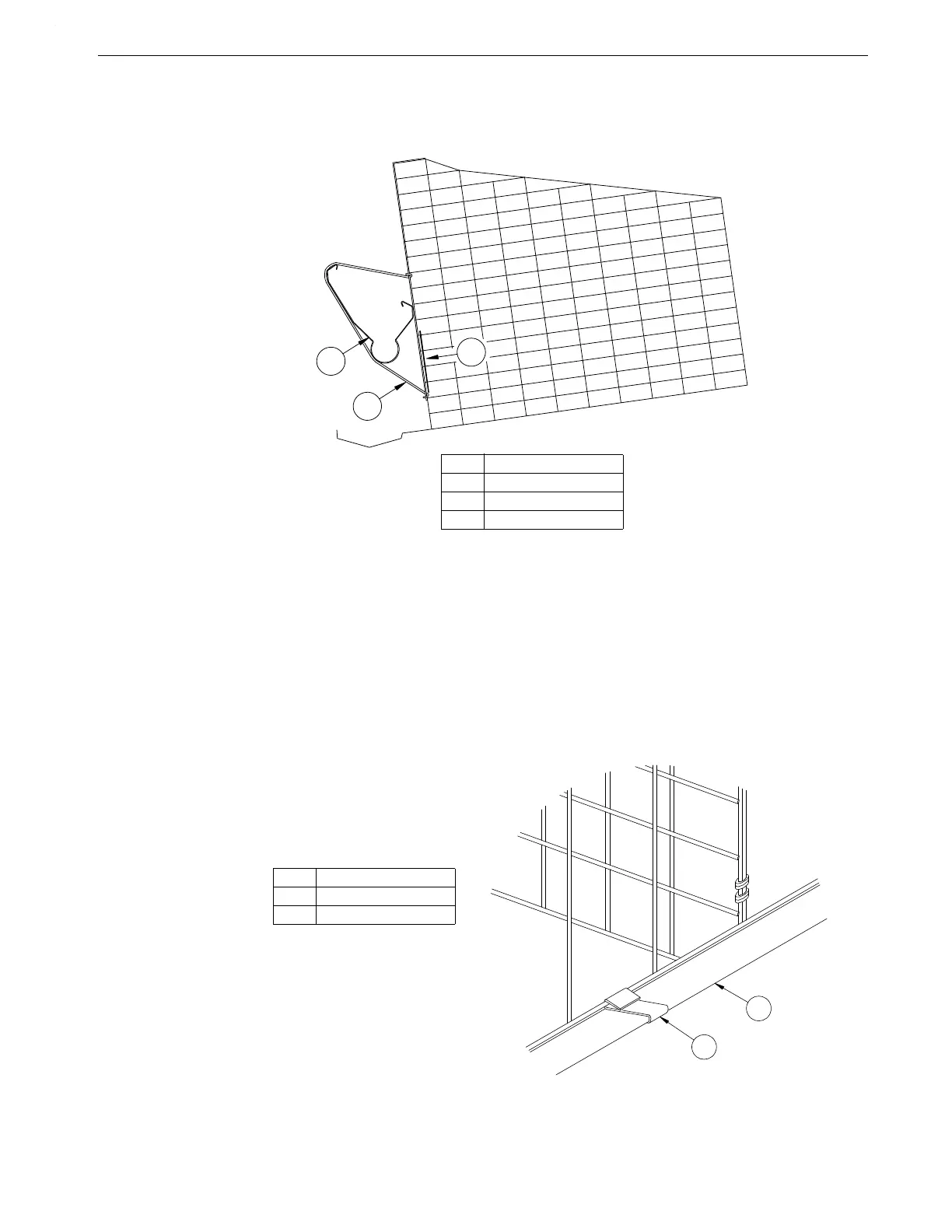

Figure 25.Retainer Wire Installation (side view).
1
2
MC656-38 8/95
Key Description
1 Trough
2 Trough Clip
Figure 26.Trough Clip Installation.
