Freeze-dryer Alpha 1-4 LDplus
Freeze-dryer Alpha 2-4 LDplus
11 Appendix
Version 11/2006, Rev. 2.2 of 17/10/2016 • sb
71 / 102
Translation of the original operating manual

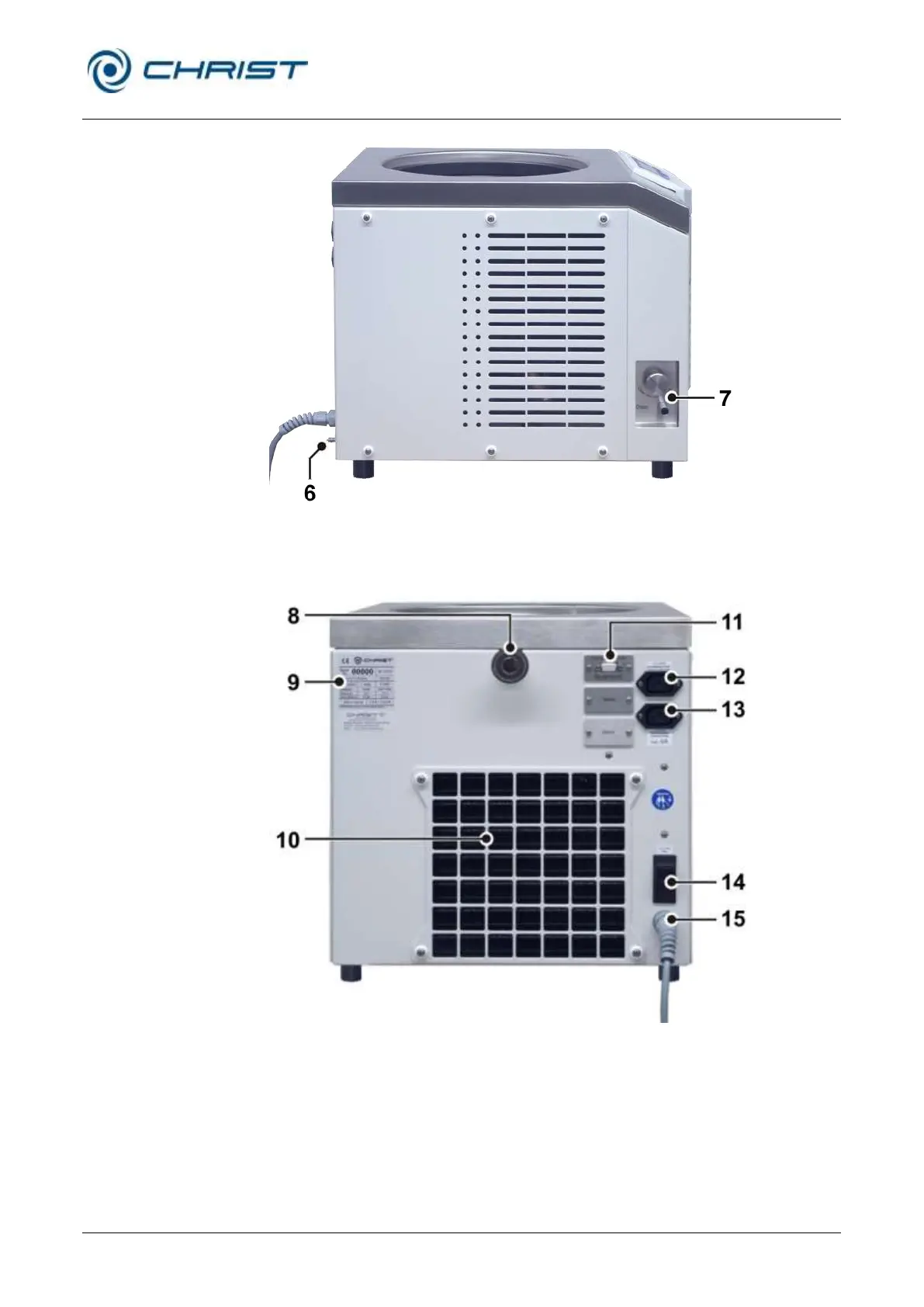

6 Equipotential bonding
screw
7 Aeration and media
drain valve
Fig. 52: Left side of the freeze-dryer
8 Vacuum connection
9 Name plate (see
chapter 2.1.2 - "Name
plate")
10 Heat exchanger of the
refrigeration unit
11 Electrical connection of
the vacuum sensor
12 Power supply of the
pressure control valve
13 Power supply of the
vacuum pump
14 Mains fuse
15 Mains cable
Fig. 53: Rear view of the freeze-dryer
