HIPOT Tester 19051/19052/19053/19054 Quick Start Guide
2. Precaution before Use
The tester is with high voltage output up to 6KV sending to external test. It
may occur injury and death result from error operation. Please peruse
notice item of this chapter and remember to avoid accident.
1. Shock Hazard
For preventing shock be occurred. Before using the tester, put on
insulation glove firstly and then running function related to electricity.
2. Grounding
There is a ground terminal on the rear panel cover of the tester.
Please use appropriate implement to connect the ground terminal to
earth actually. If not, there may be high voltage existed on the cover
of the tester. It is very danger whatever touches the machine under
the above statuses. It may cause shock hazard, therefore please

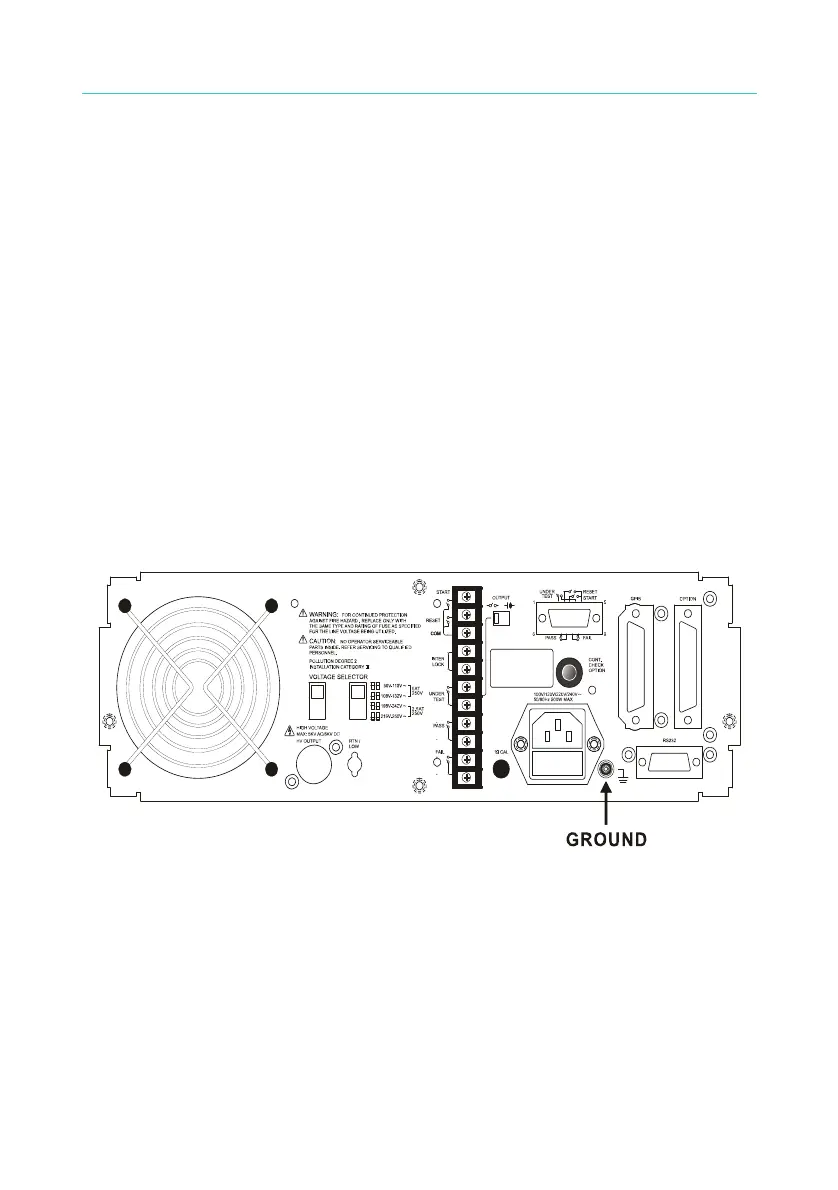

make sure to connect ground terminal to earth. As figure 2-1 arrow
denotation.
Figure 2-1
3. Connect test cable to RTN/LOW terminal
As figure 2-2 arrow denotation, connect test cable to RTN/LOW
terminal. It is necessary to check if there is loosen or drop under
operation condition at any time. If you want to connect DUT by testing
cable, please connect test cable of RTN/LOW terminal to DUT.
(RTN/LOW terminal, which has connected to the main unit) The
uncompleted connection of test cable of RTN/LOW terminal or drop is
very danger, as there is full of high voltage on DUT.
