HIPOT Tester 19051/19052/19053/19054 Quick Start Guide
is very dangerous. Don’t touch it when DANGER LED
is light, there is high voltage outputting.
RTN / LOW : The common test terminal. It’s a reference terminal
when high voltage test, it also a low electric potential
terminal. This terminal is almost equal to cover
grounding terminal.

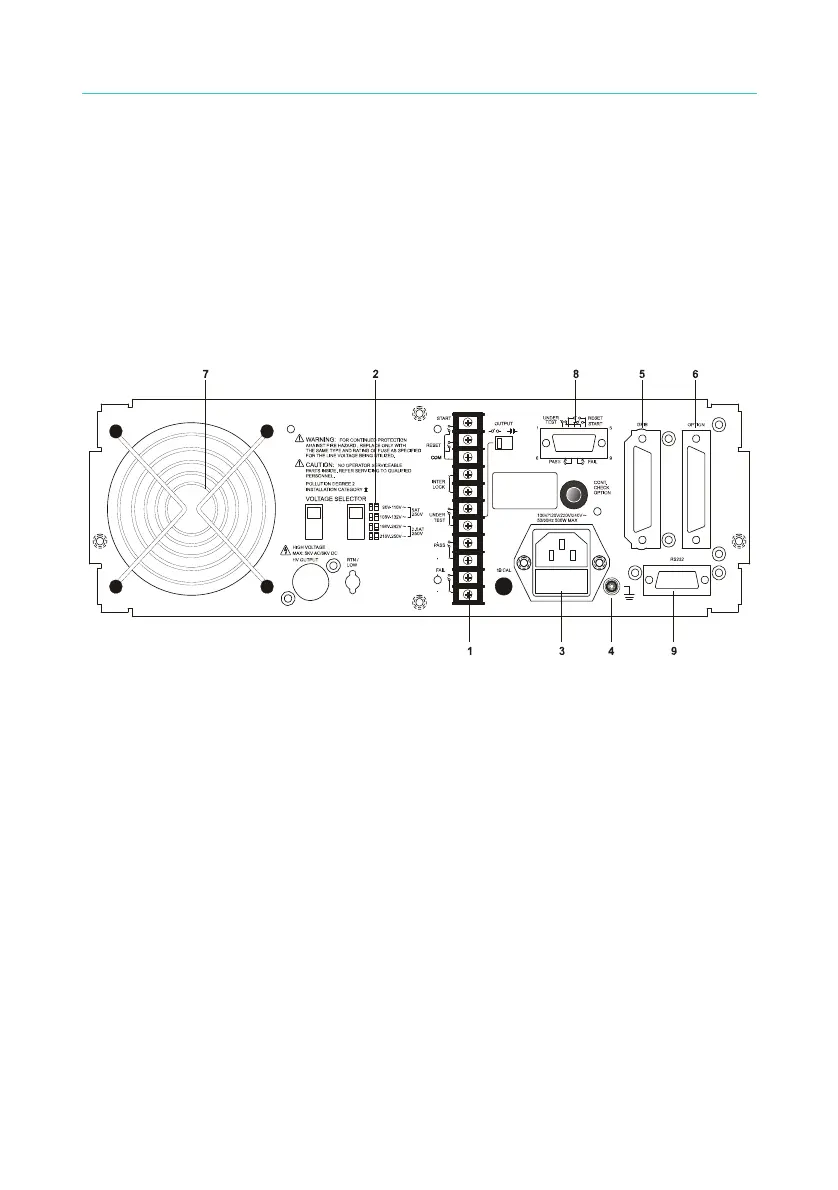

3.2 Rear Panel
1. REMOTE I/O: The test result signal output terminal.
START: Start test signal input terminal.
STOP: Stop test signal input terminal.
INTER LOCK: Output only when this two terminals are short circuit
and high voltage.
UNDER TEST : When the tester is under test status, this output
terminal will short circuit. Control external signal by
using this short condition. The junction specification
115V AC current is lower than 0.3A action time.
This tester is under testing status until STOP is stopped.
PASS : When the tester judge DUT is PASS, this output terminal is
short circuit. Control external signal by using this short
circuit condition. The junction specification 115V AC
current is lower than 0.3A.
The action time is 0.2sec ∼ 99.9sec. (Can be set)
FAIL: When the tester judge DUT is FAIL, this output terminal will
be short-circuited. Control external signal by using this short
condition. The junction specification 115V AC current is
17
