HIPOT Tester 19051/19052/19053/19054 Quick Start Guide
3. Panel Description

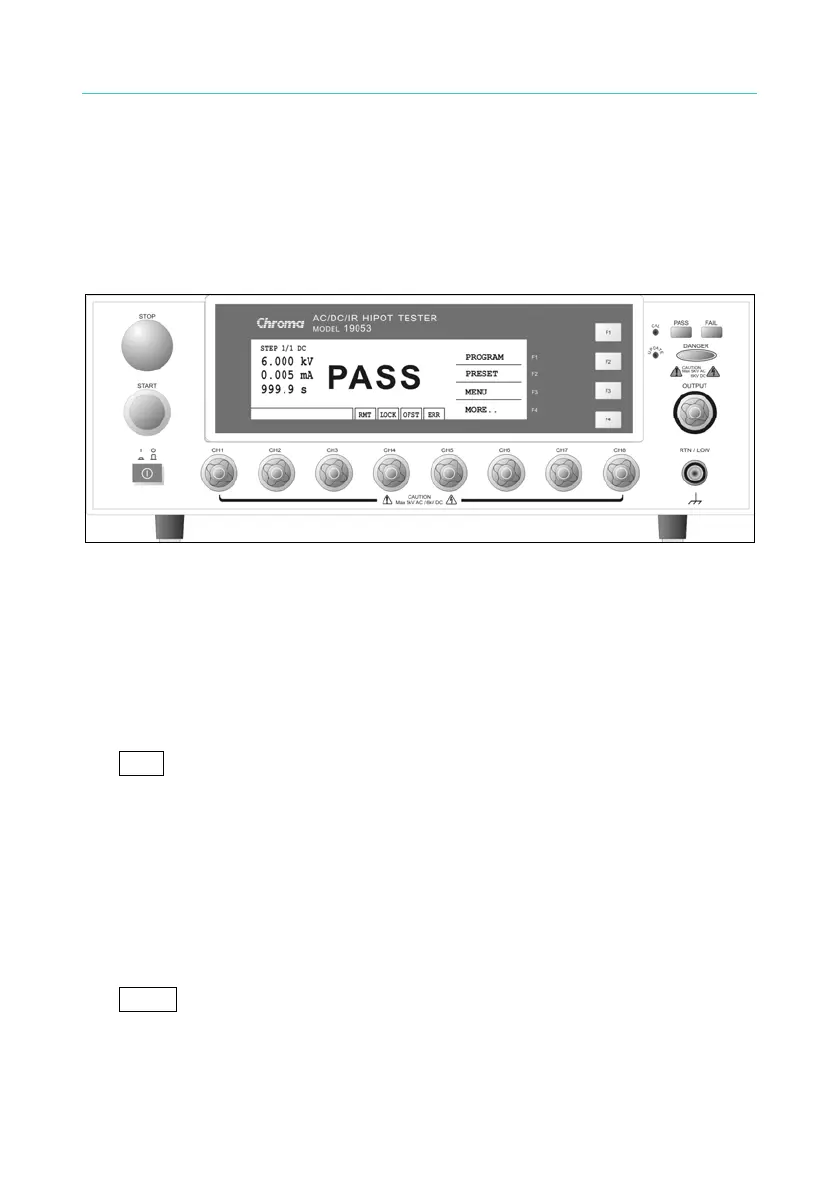

3.1 Front Panel
Front panel includes several function areas which easy to use. This
paragraph will introduce each control and information on LCD to you.
Display Area
Function key display area: Under different display menus, there are
different function descriptions. The right side of display has
corresponding function keys (F1-F4). If the description is blank, it
means corresponding function is invalid.
State list : This list indicates the setting mode, the range of setting value
and displays no good state of testing result.
RMT : When this area is highlighted, it means the main unit is
under Remote status. That is the main unit controlled by
PC through GPIB/RS232 connecting cable. At the same
time, all of keys are malfunction except for [STOP], [Local]
and [MORE..] Keys.
Note: As connecting RS232, the word “RMT” on LCD will not be
highlighted only when give the command of :
SYSTem:LOCk:REQuest?. When the word “RMT” is not
highlighted, all keys can be operated as usual.
LOCK : When this area is highlighted, it means the main unit is
under setting parameter protected mode. The other mode
can’t enter except for "MEMORY", "TEST" and "KEY
LOCK" modes.
15
